Oil Pan Gasket Installation Note (AJ)

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Apply silicone sealant to the cylinder block as shown in the illustration.
Dot diameter

10 mm (0.39 in)

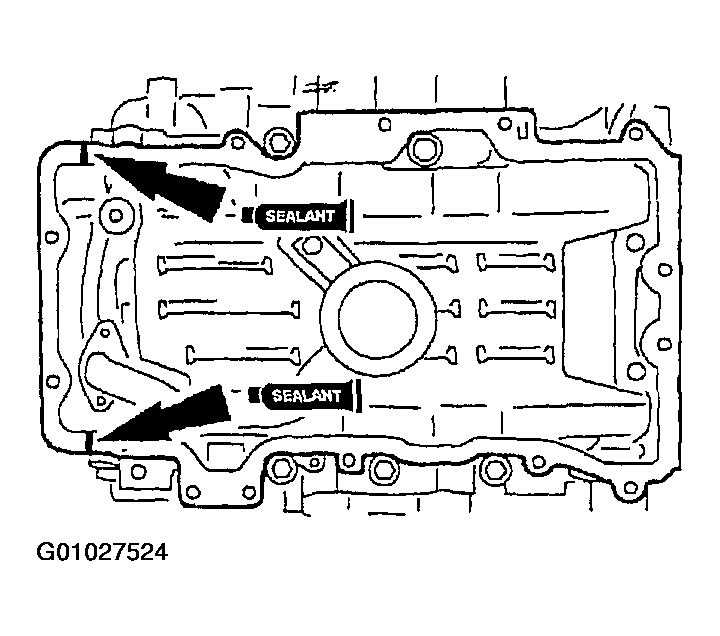

Fig 1: Locating Sealant Application Surfaces On Cylinder Block
Courtesy of MAZDA MOTORS CORP.
