DTC 25

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

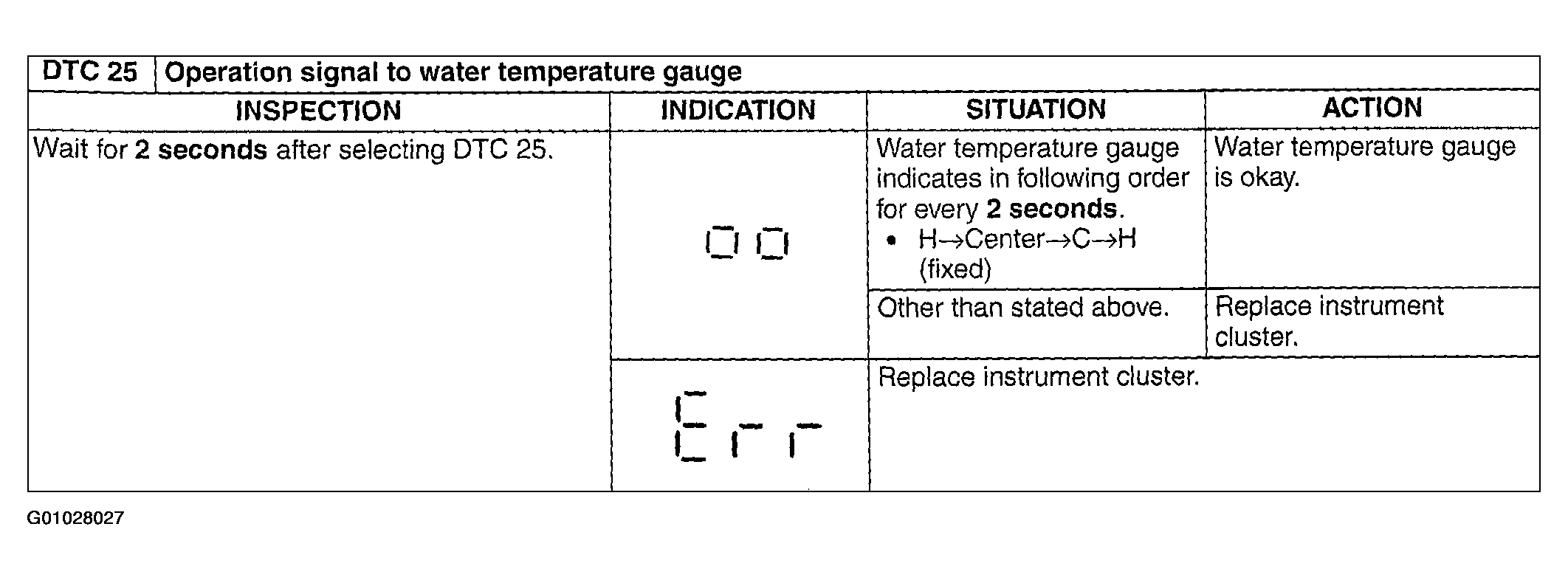

Fig 1: Diagnostic Procedure - DTC 25 Operational Signal To Water Temperature Gauge
G01028027Courtesy of MAZDA MOTORS CORP.
