DTC 22

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

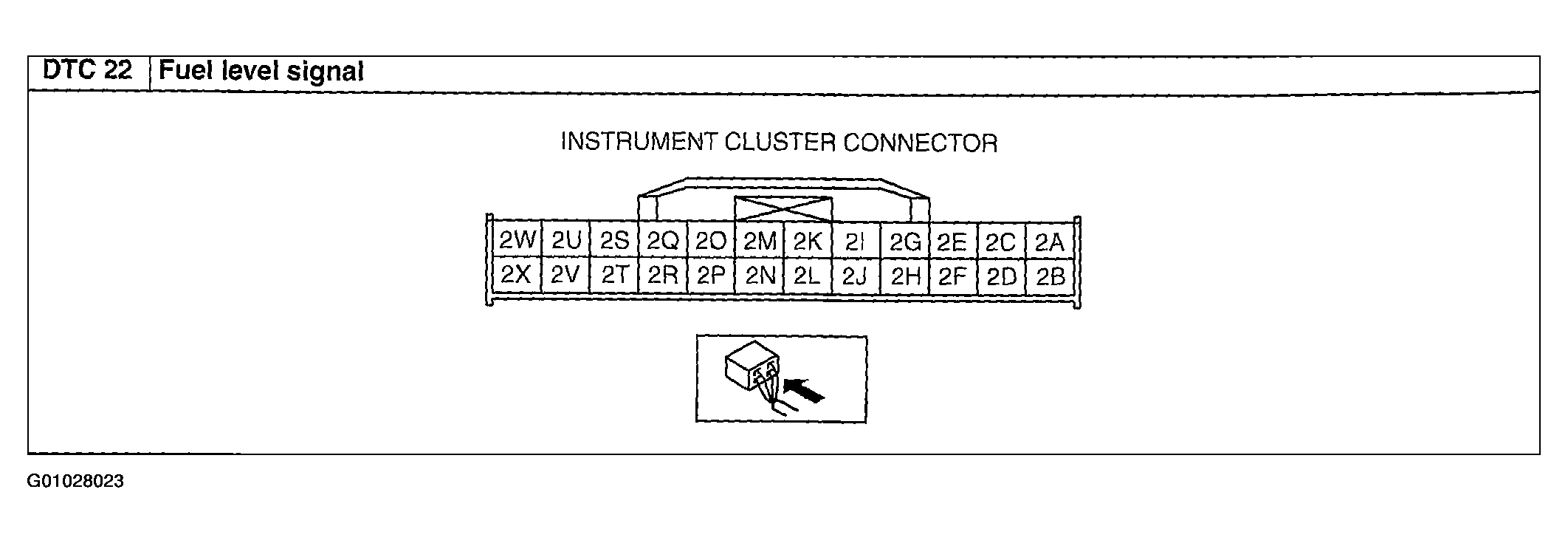

Fig 1: Identifying Instrument Cluster Connector Terminals - DTC 22 Fuel Level Signal

Courtesy of MAZDA MOTORS CORP.

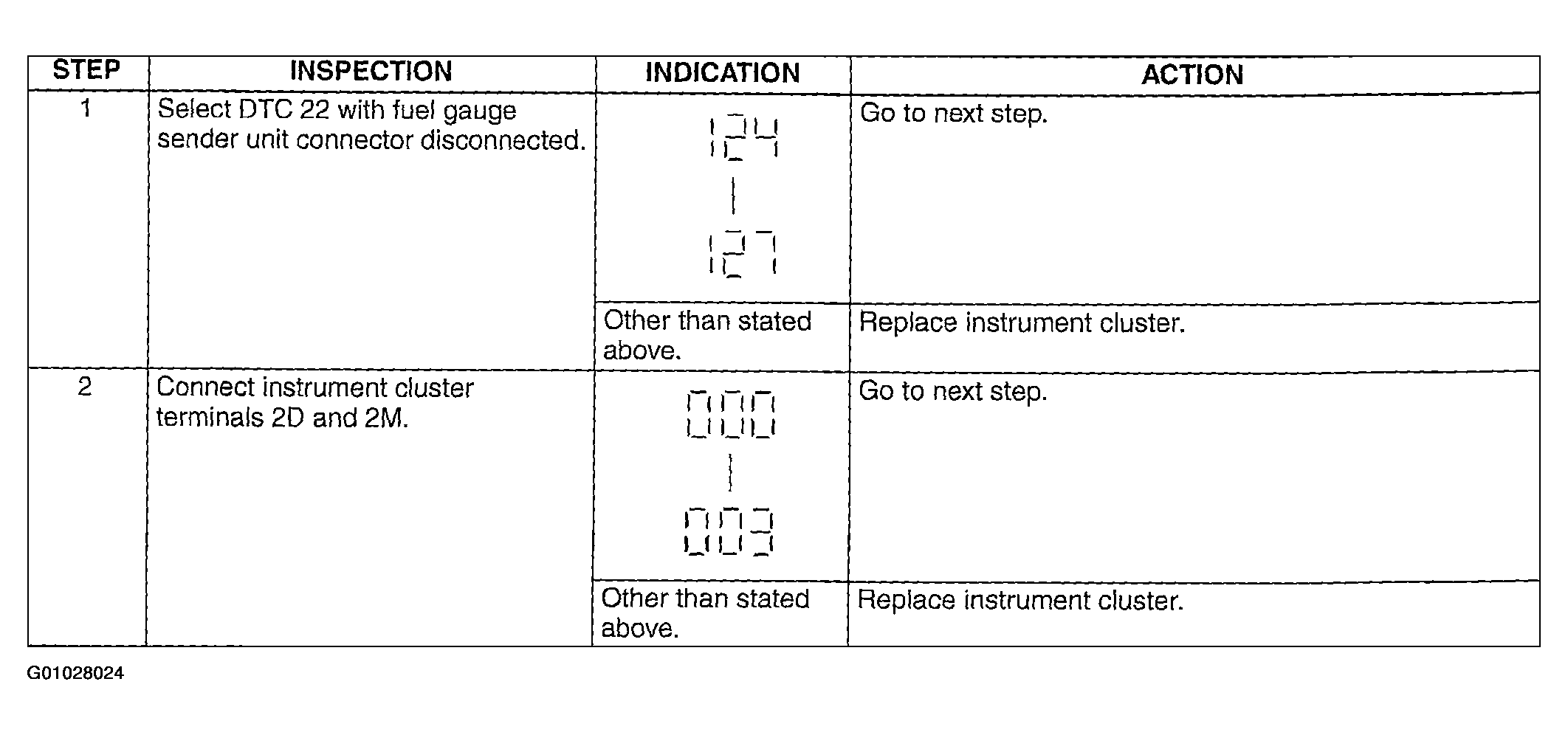

Fig 2: Diagnostic Procedure - DTC 22 Fuel Level Signal (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

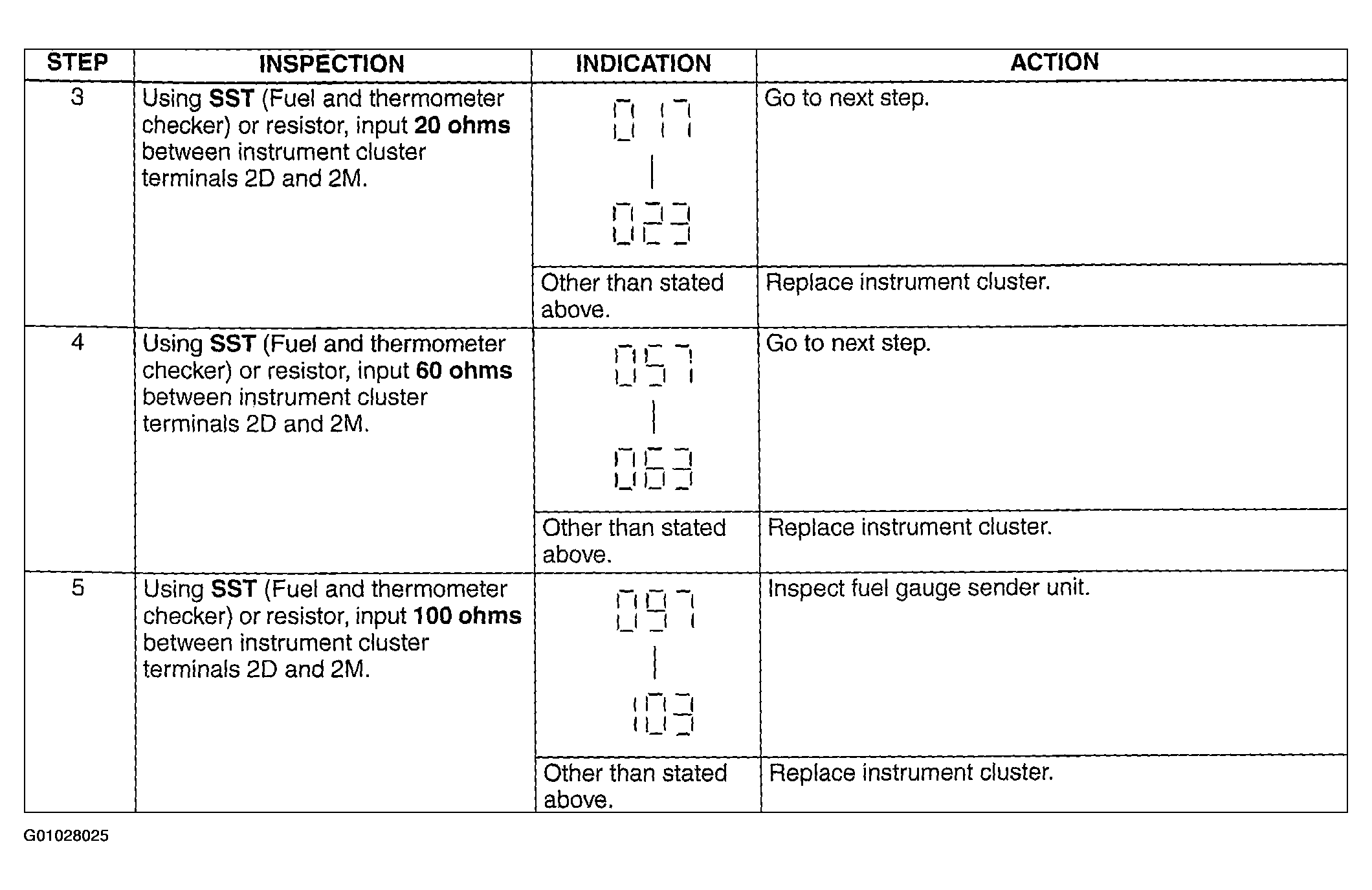

Fig 3: Diagnostic Procedure - DTC 22 Fuel Level Signal (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
