DTC 13

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

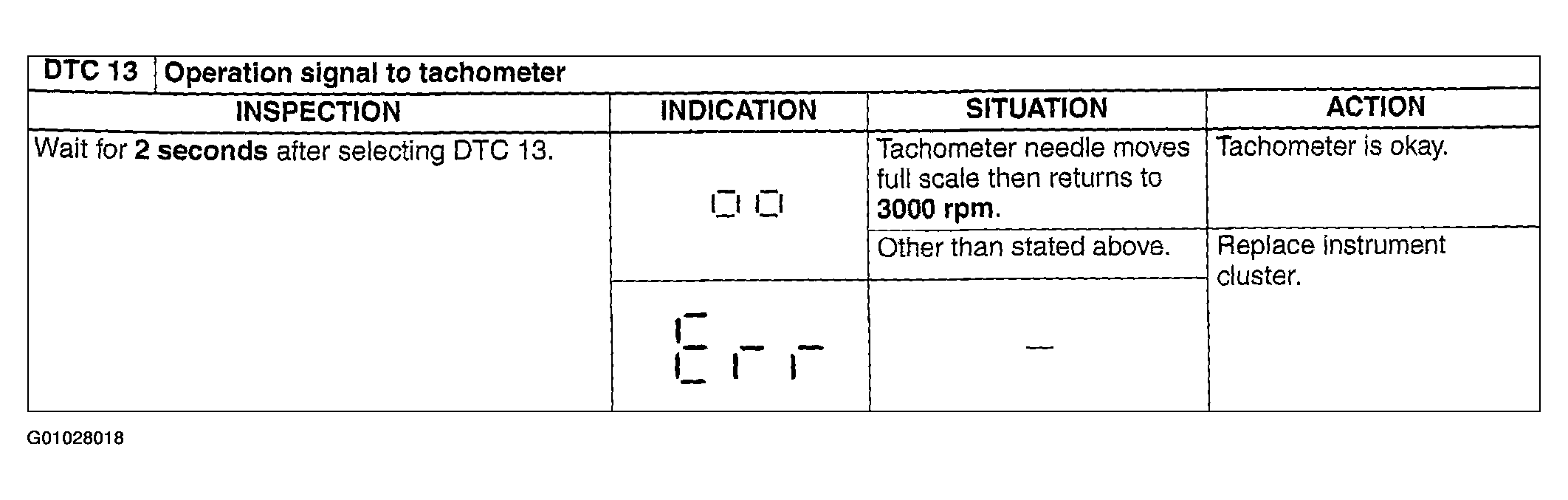

Fig 1: Diagnostic Procedure - DTC 13 Operational Signal To Tachometer
G01028018Courtesy of MAZDA MOTORS CORP.
