DTC 01

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

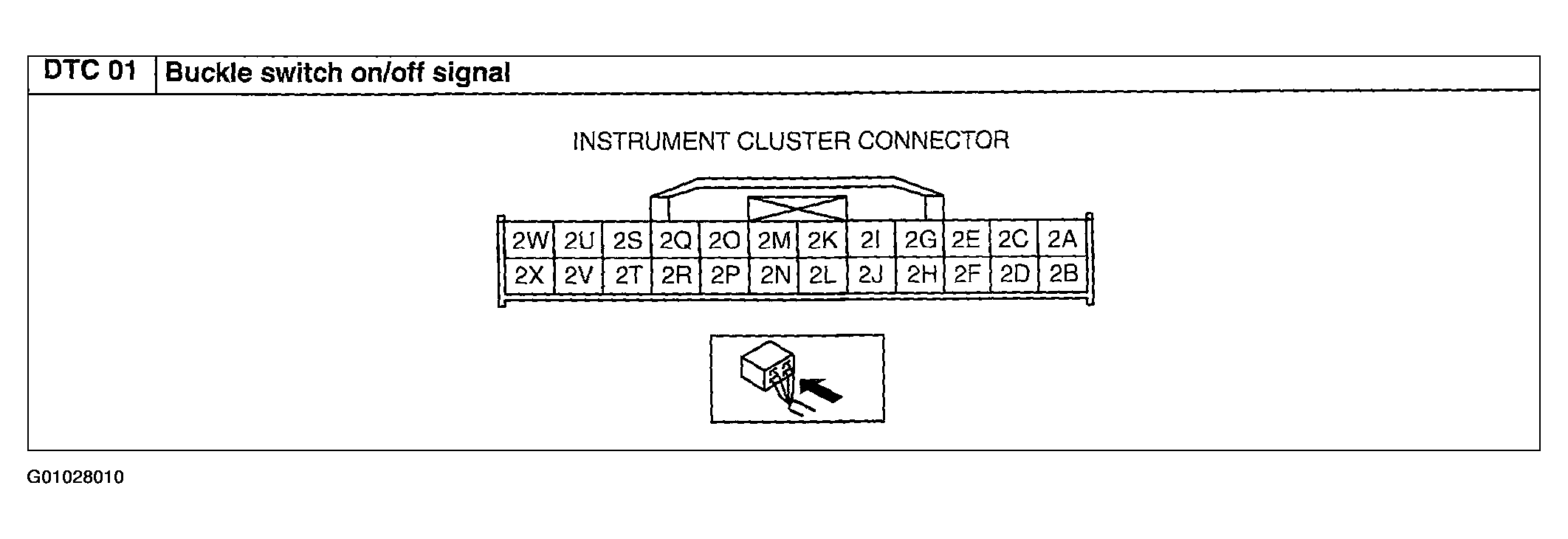

Fig 1: Identifying Instrument Cluster Connector Terminals - DTC 01 Buckle Switch ON/OFF Signal
G01028010Courtesy of MAZDA MOTORS CORP.

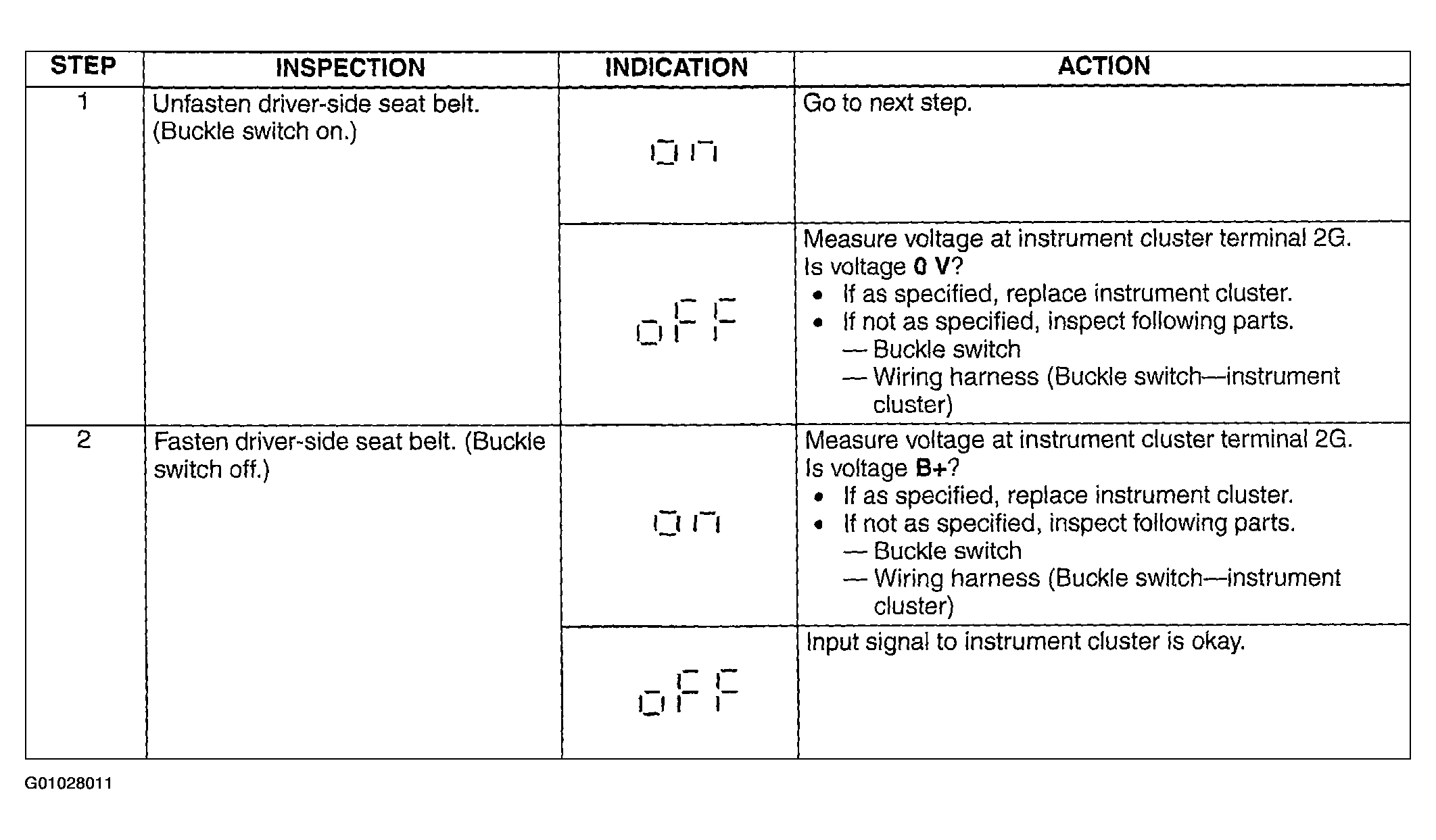

Fig 2: Diagnostic Procedure - DTC 01 Buckle Switch ON/OFF Signal
G01028011Courtesy of MAZDA MOTORS CORP.
