Intake-Air System Location Index

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

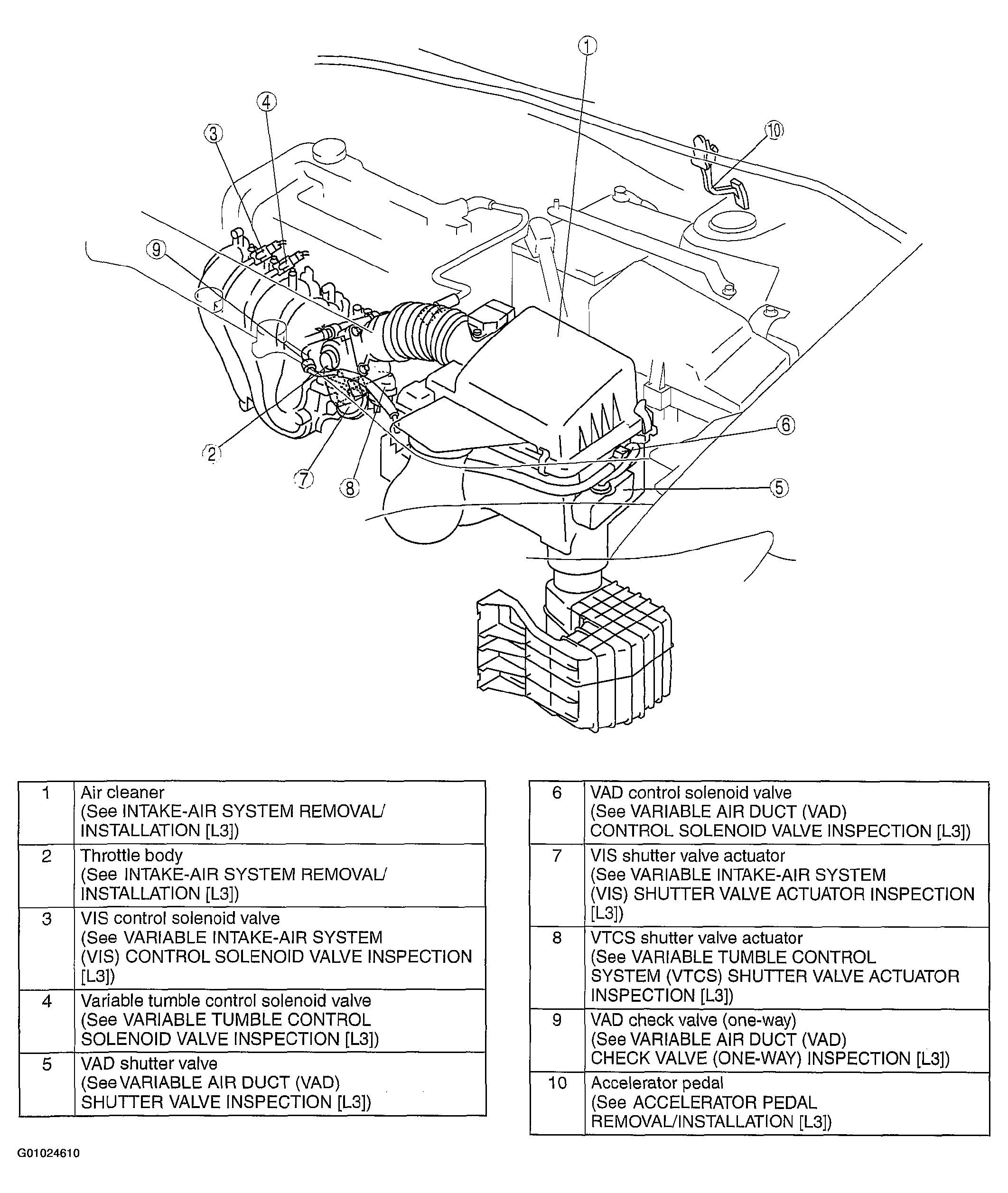

Fig 1: Intake-Air System Location Index [L3]
G01024610Courtesy of MAZDA MOTORS CORP.
