Accelerator Pedal Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated. See Fig 1.

Fig 1: Accelerator Pedal Removing Sequence
Courtesy of MAZDA MOTORS CORP.

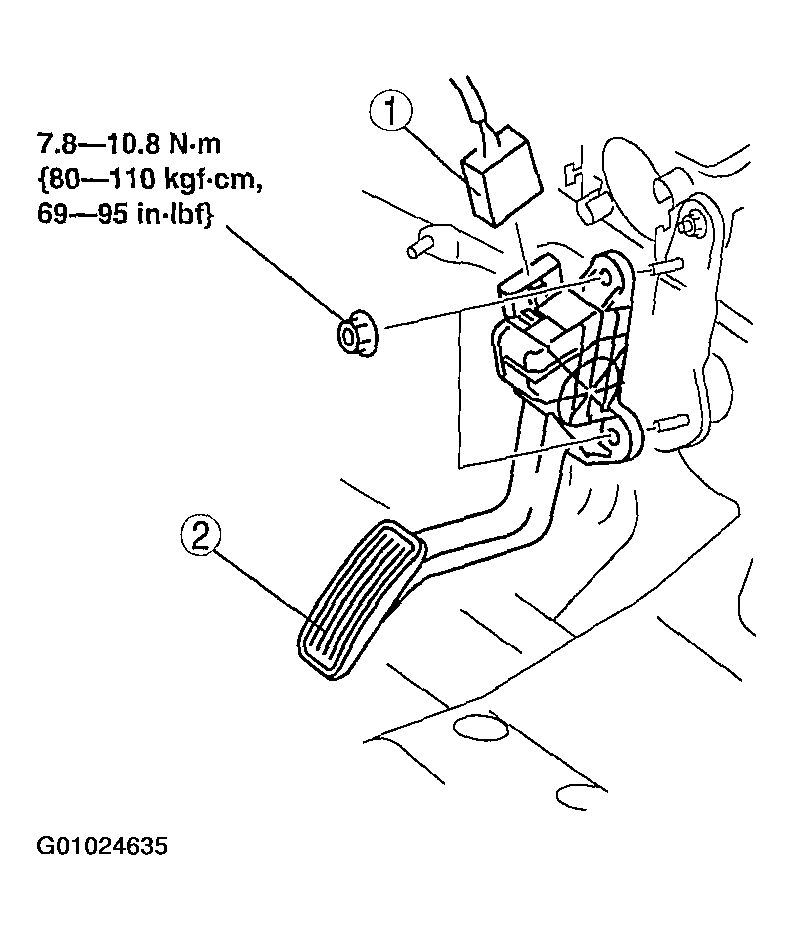

Fig 2: Removing/Installing Accelerator Pedal
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
