Exhaust Manifold (LH) Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten the exhaust manifold installation nuts in the order shown.

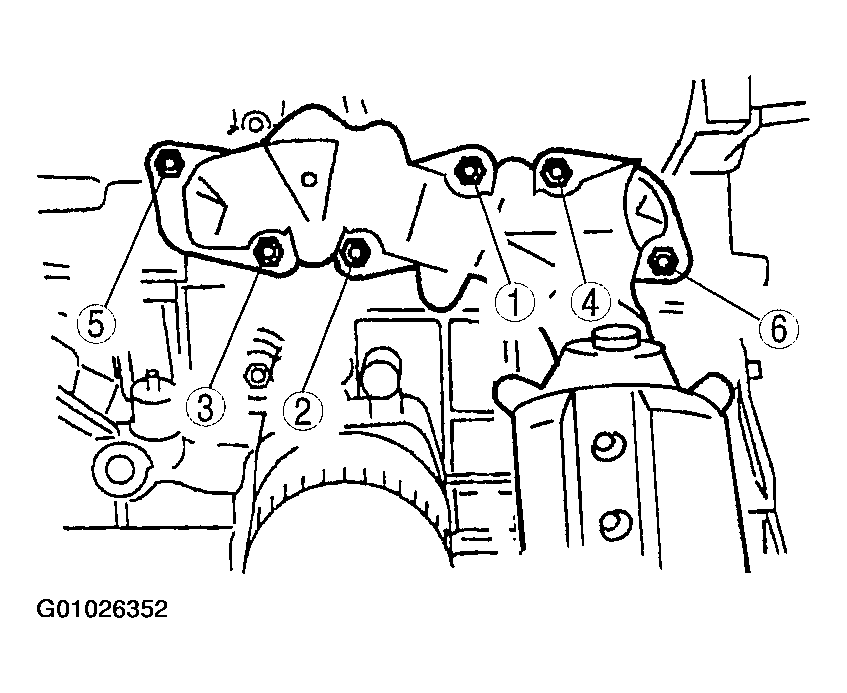

    Fig 1: Exhaust Manifold (LH) Installation Nuts Tightening Sequence
    G01026352Courtesy of MAZDA MOTORS CORP.
