Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

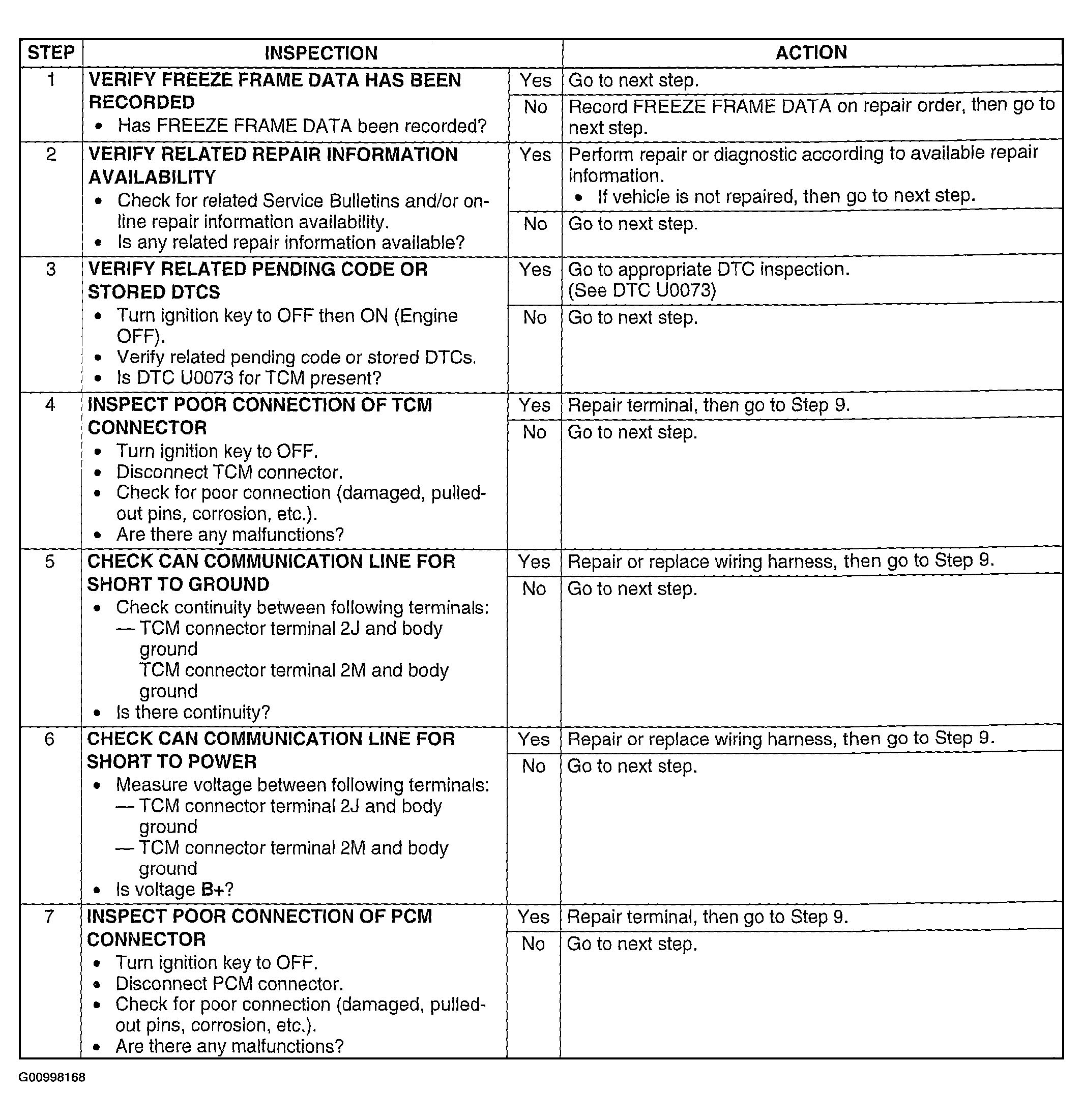

Fig 1: DTC U0101 Diagnostic Procedure Chart (Step 1-7)
G00998168Courtesy of MAZDA MOTORS CORP.

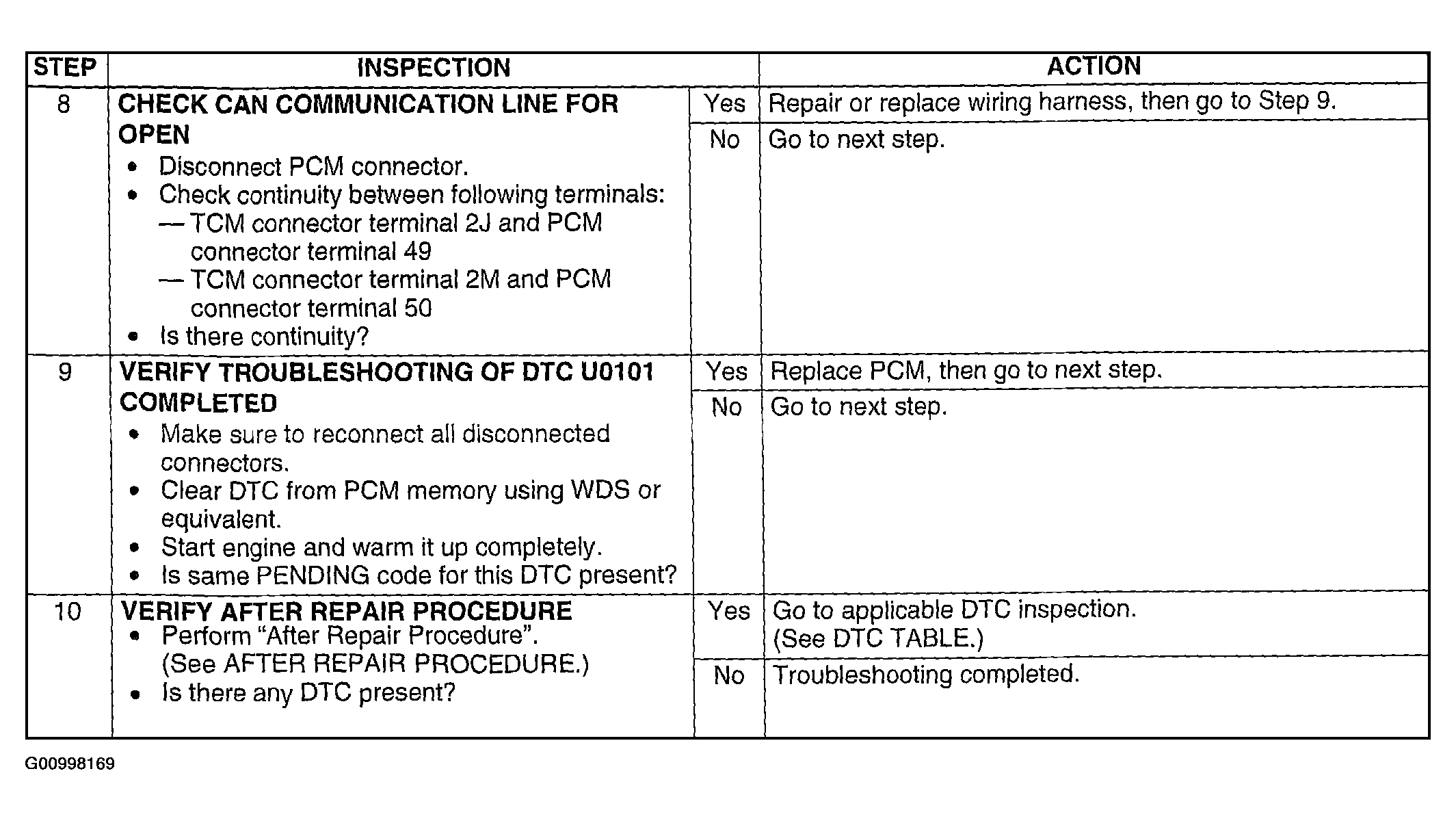

Fig 2: DTC U0101 Diagnostic Procedure Chart (Step 8-10)
G00998169Courtesy of MAZDA MOTORS CORP.
