Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

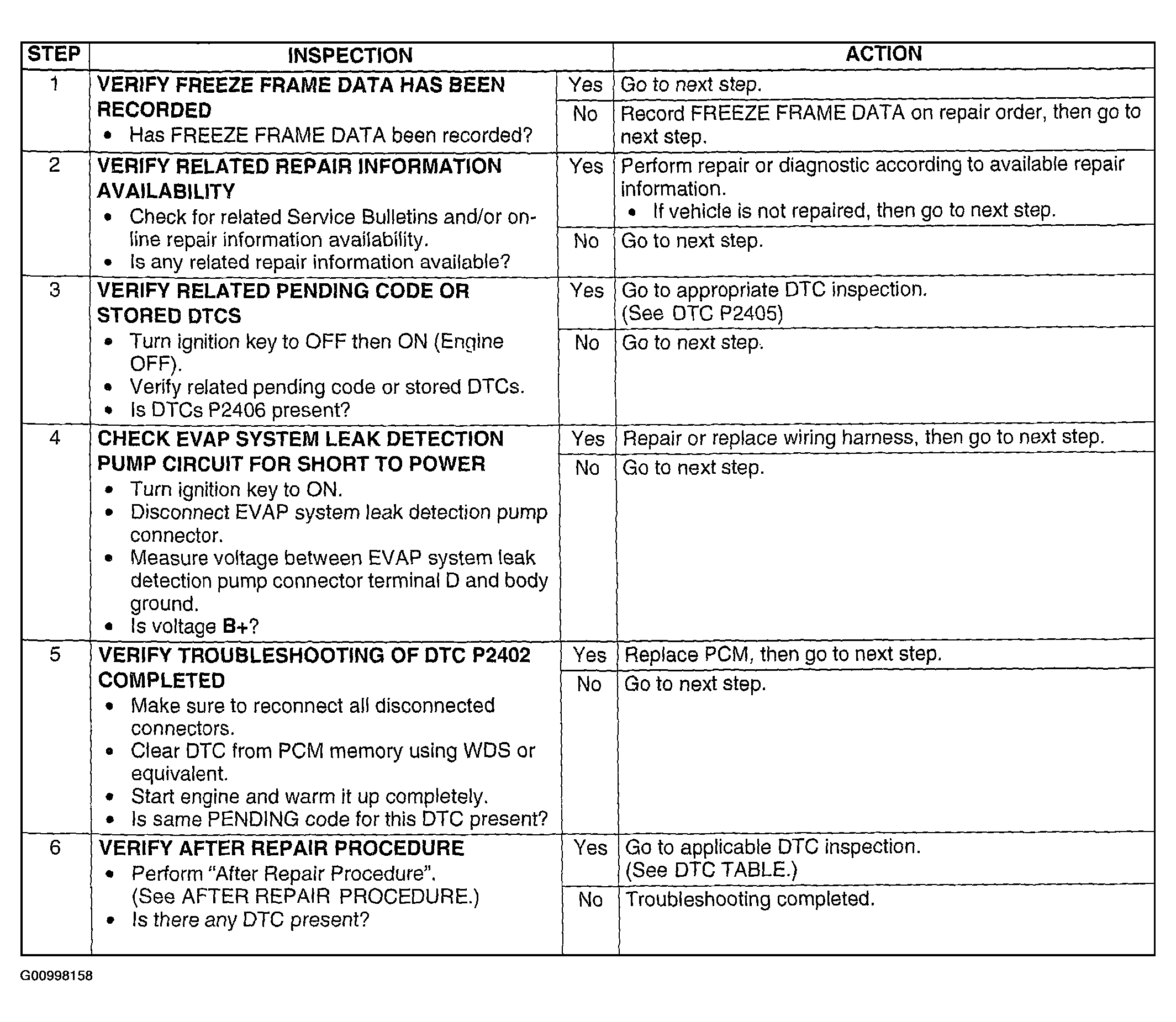

Fig 1: DTC P2402 Diagnostic Procedure Chart
G00998158Courtesy of MAZDA MOTORS CORP.
