Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

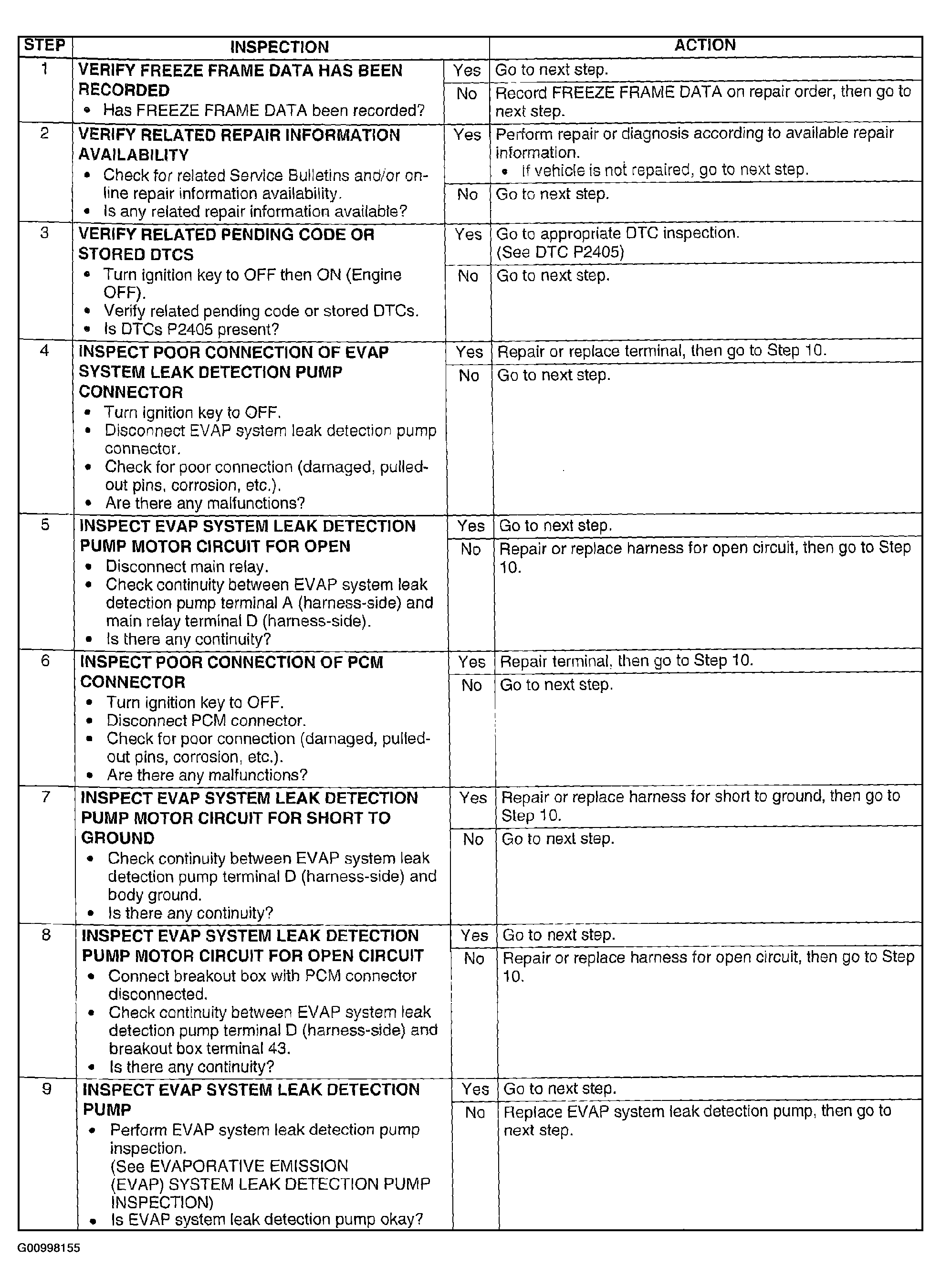

Fig 1: DTC P2401 Diagnostic Procedure Chart (Step 1-9)
G00998155Courtesy of MAZDA MOTORS CORP.

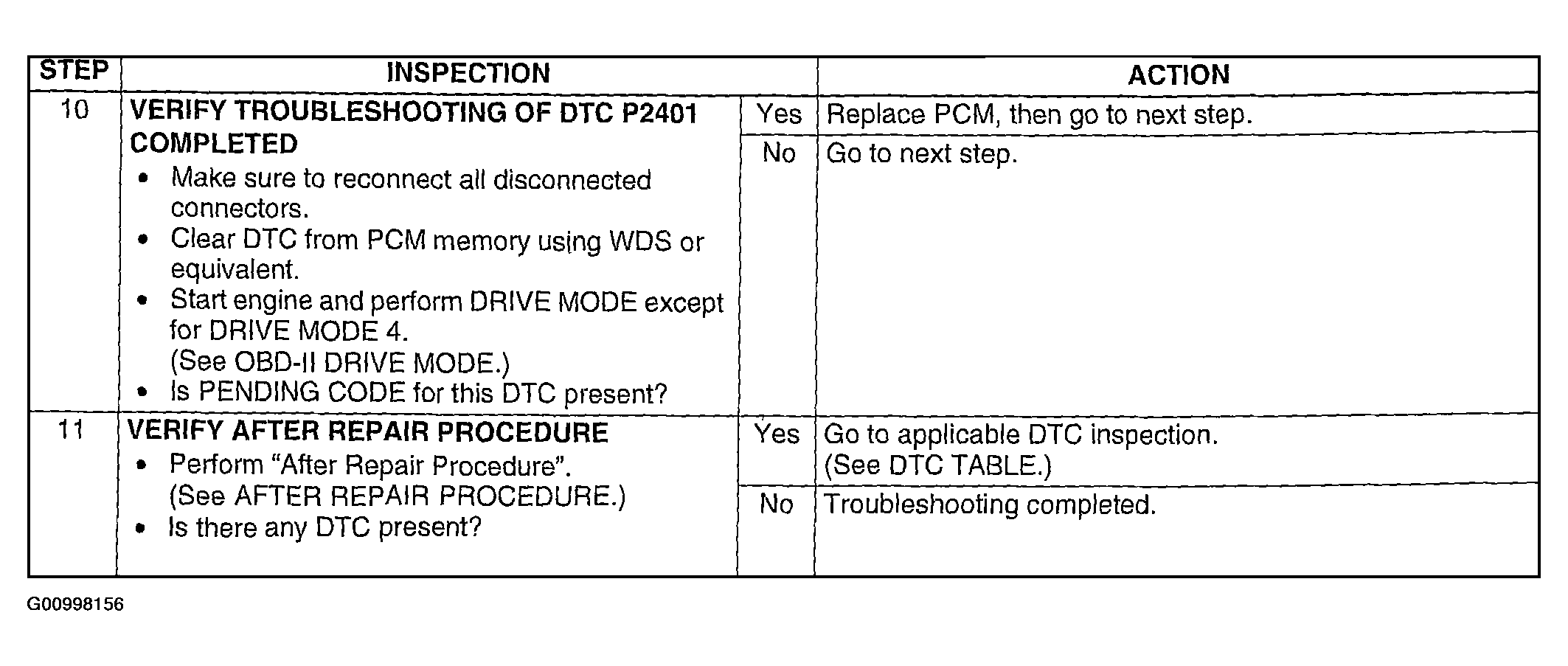

Fig 2: DTC P2401 Diagnostic Procedure Chart (Step 10-11)
G00998156Courtesy of MAZDA MOTORS CORP.
