DTC P1487: EGR Boost Sensor Solenoid Valve Circuit Malfunction: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

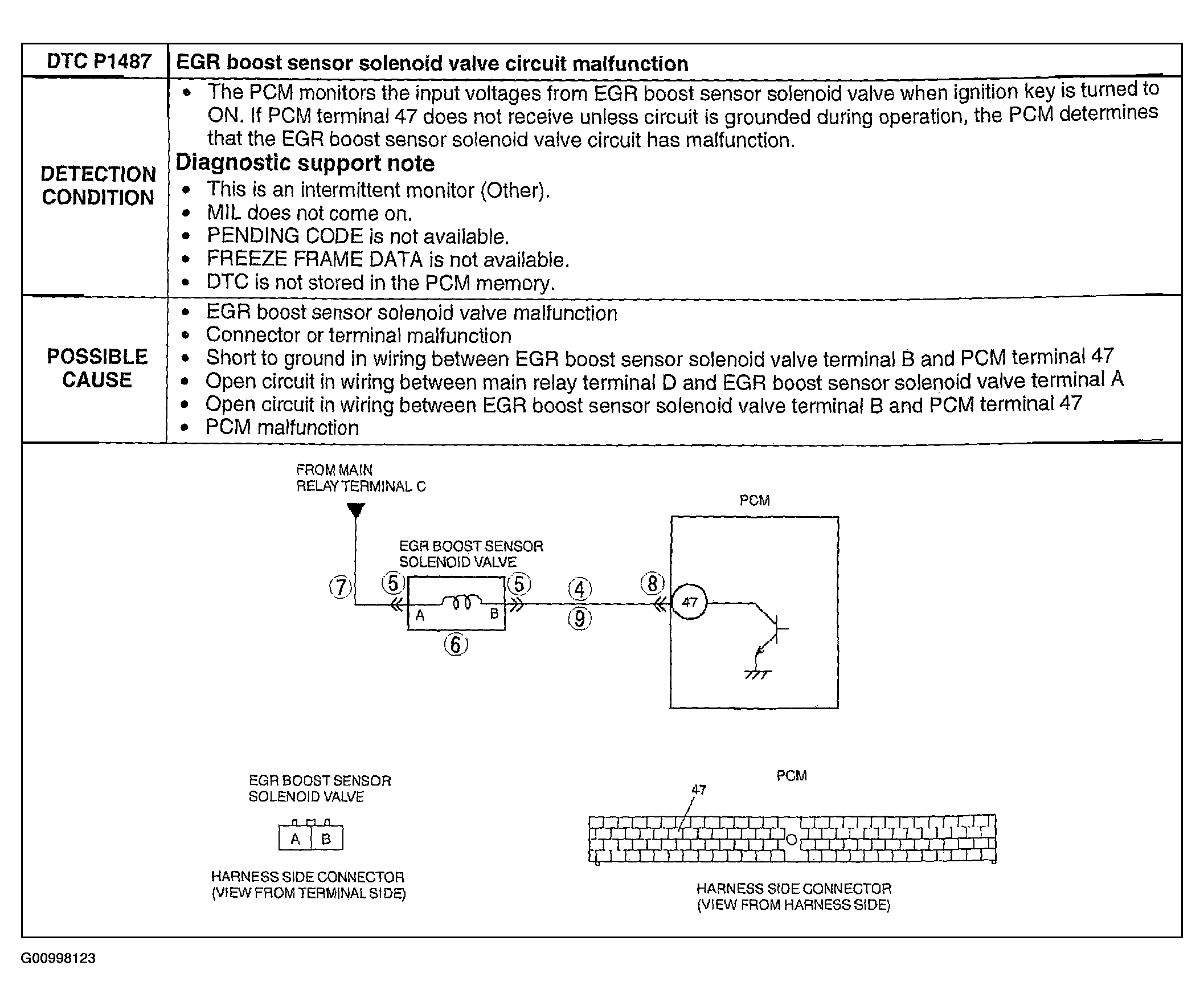

Fig 1: DTC P1487 Detection Condition & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.
