Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

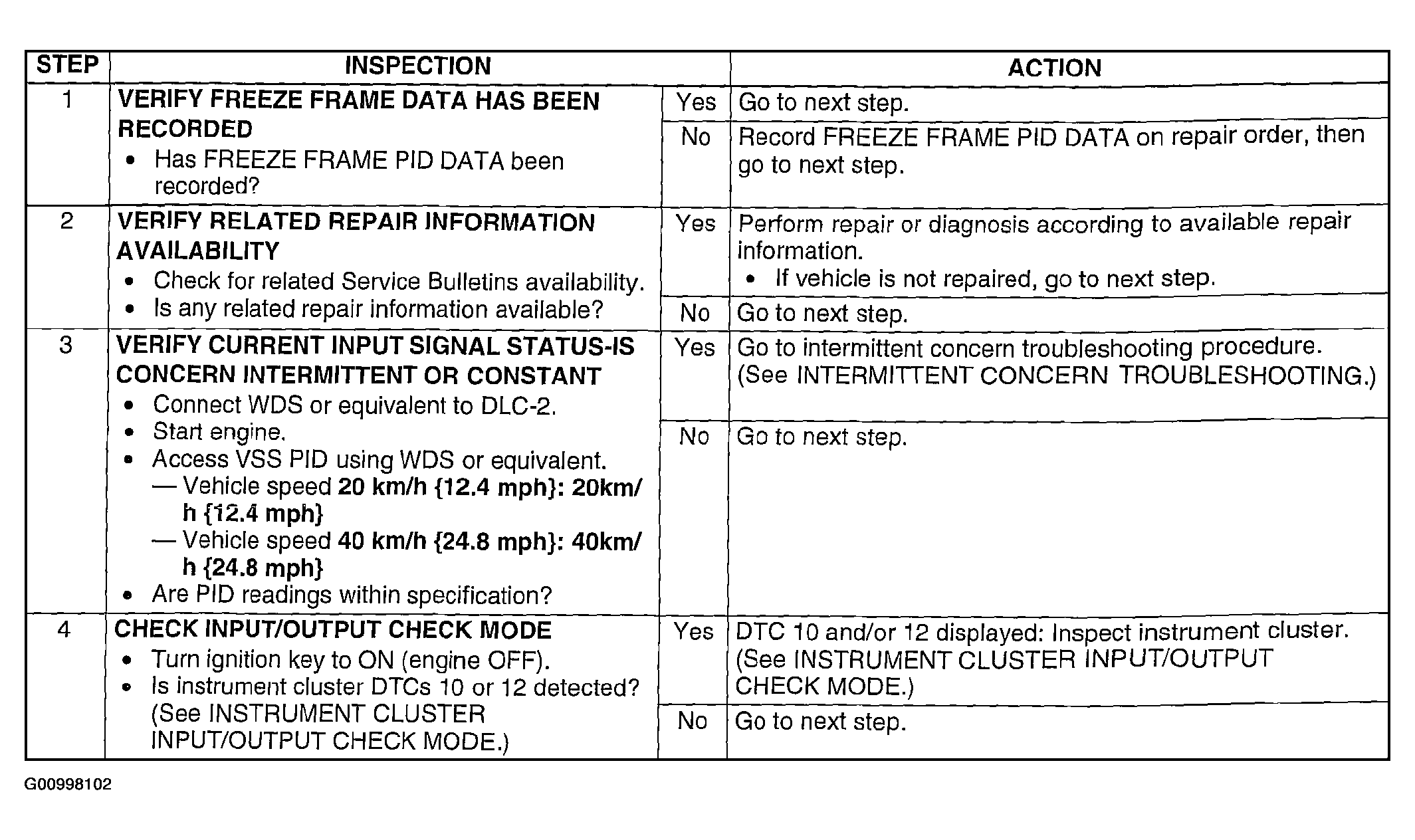

Fig 1: DTC P0500 Diagnostic Procedure Chart (Step 1-4)
G00998102Courtesy of MAZDA MOTORS CORP.

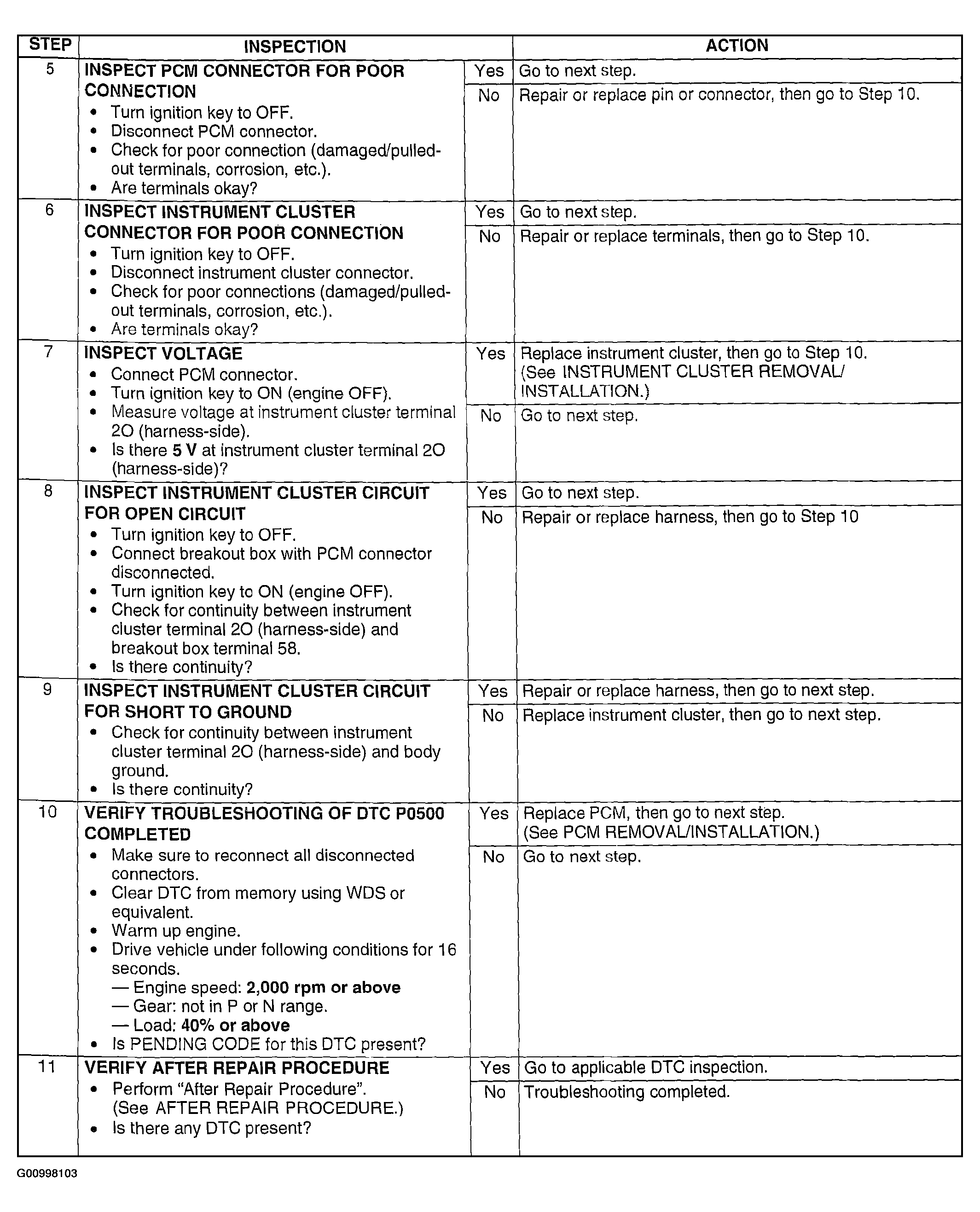

Fig 2: DTC P0500 Diagnostic Procedure Chart (Step 5-11)
G00998103Courtesy of MAZDA MOTORS CORP.
