Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

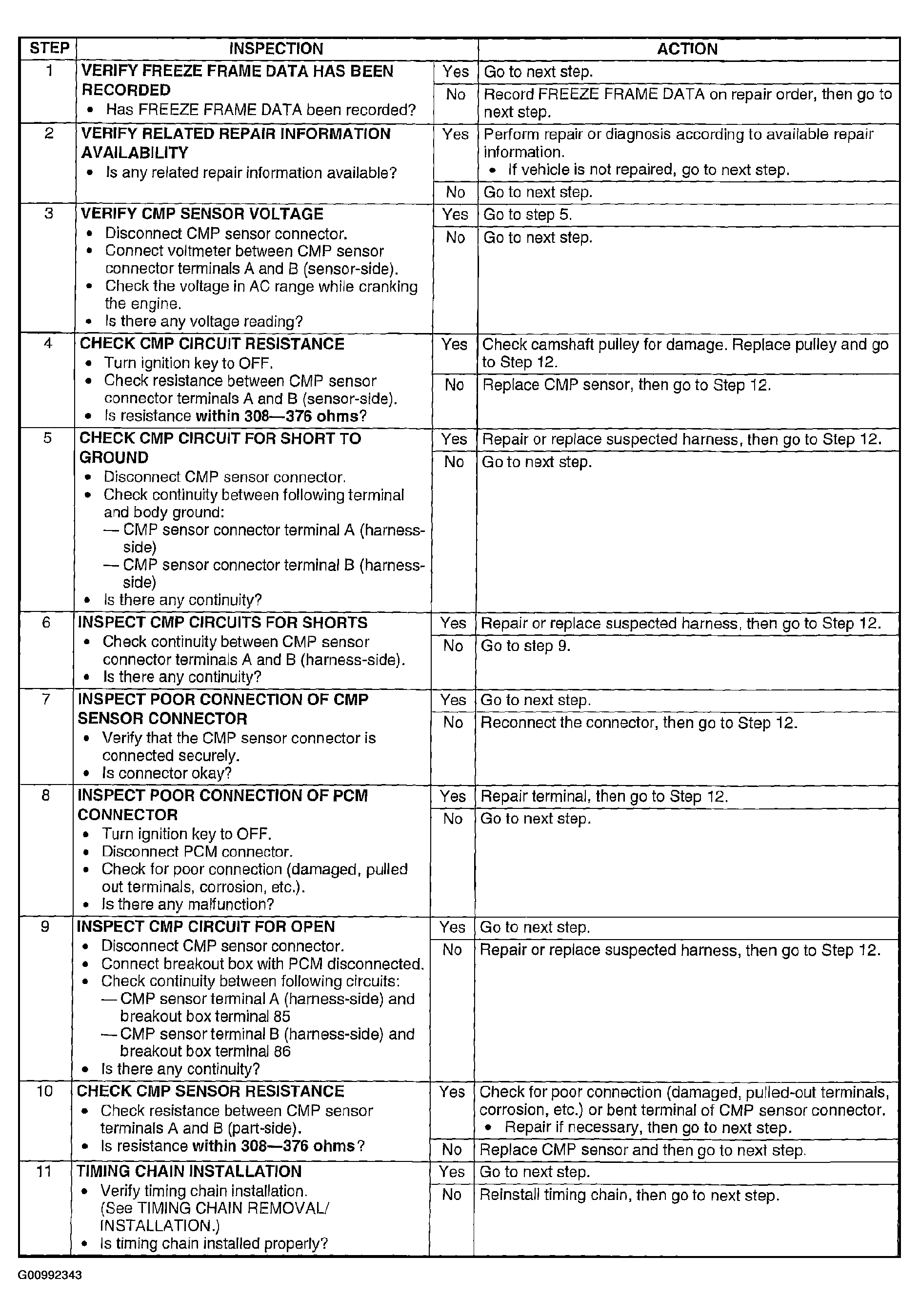

Fig 1: DTC P0340 Diagnostic Procedure Chart (Step 1-11)
G00992343Courtesy of MAZDA MOTORS CORP.

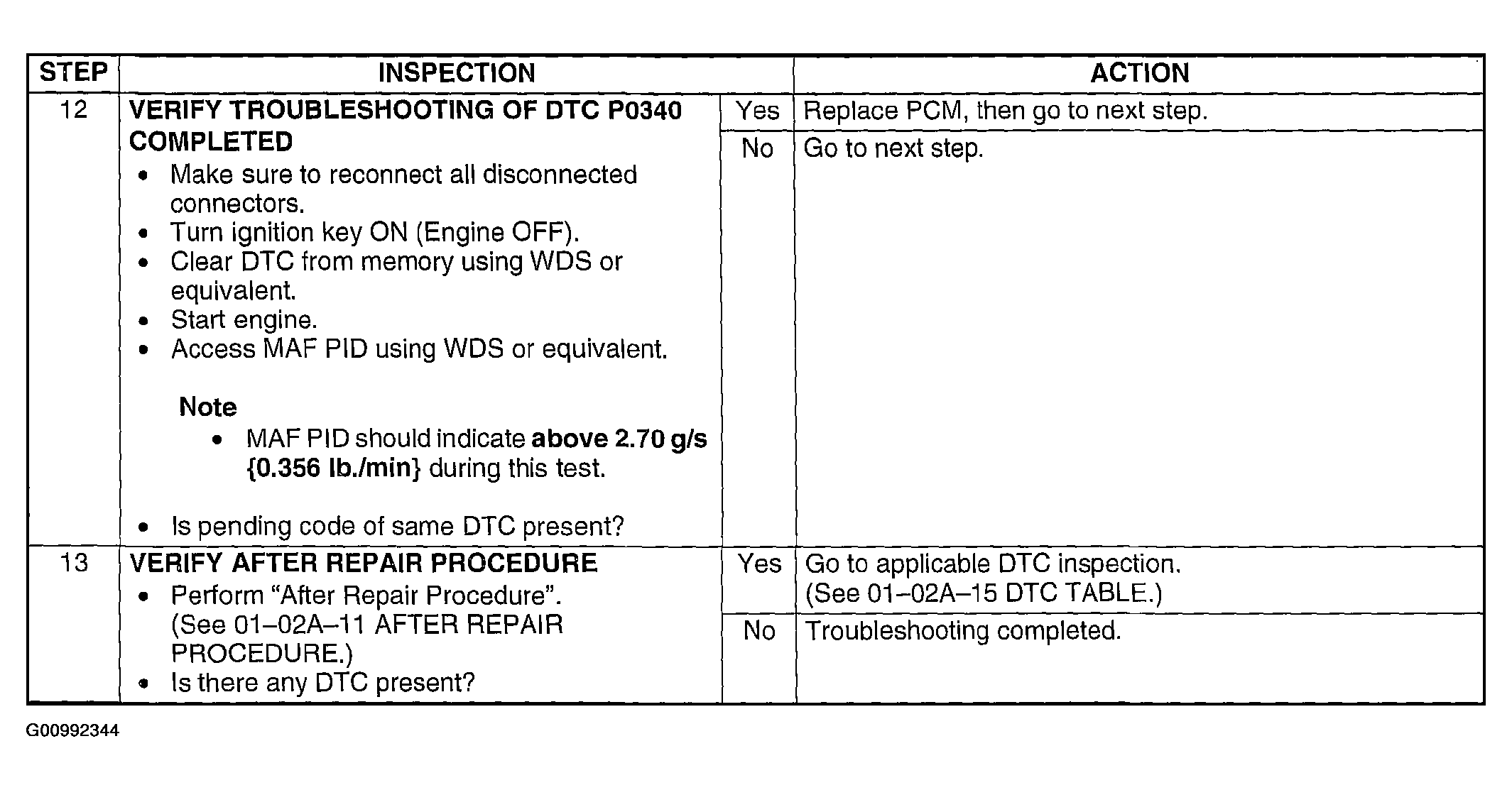

Fig 2: DTC P0340 Diagnostic Procedure Chart (Step 12-13)
G00992344Courtesy of MAZDA MOTORS CORP.
