Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

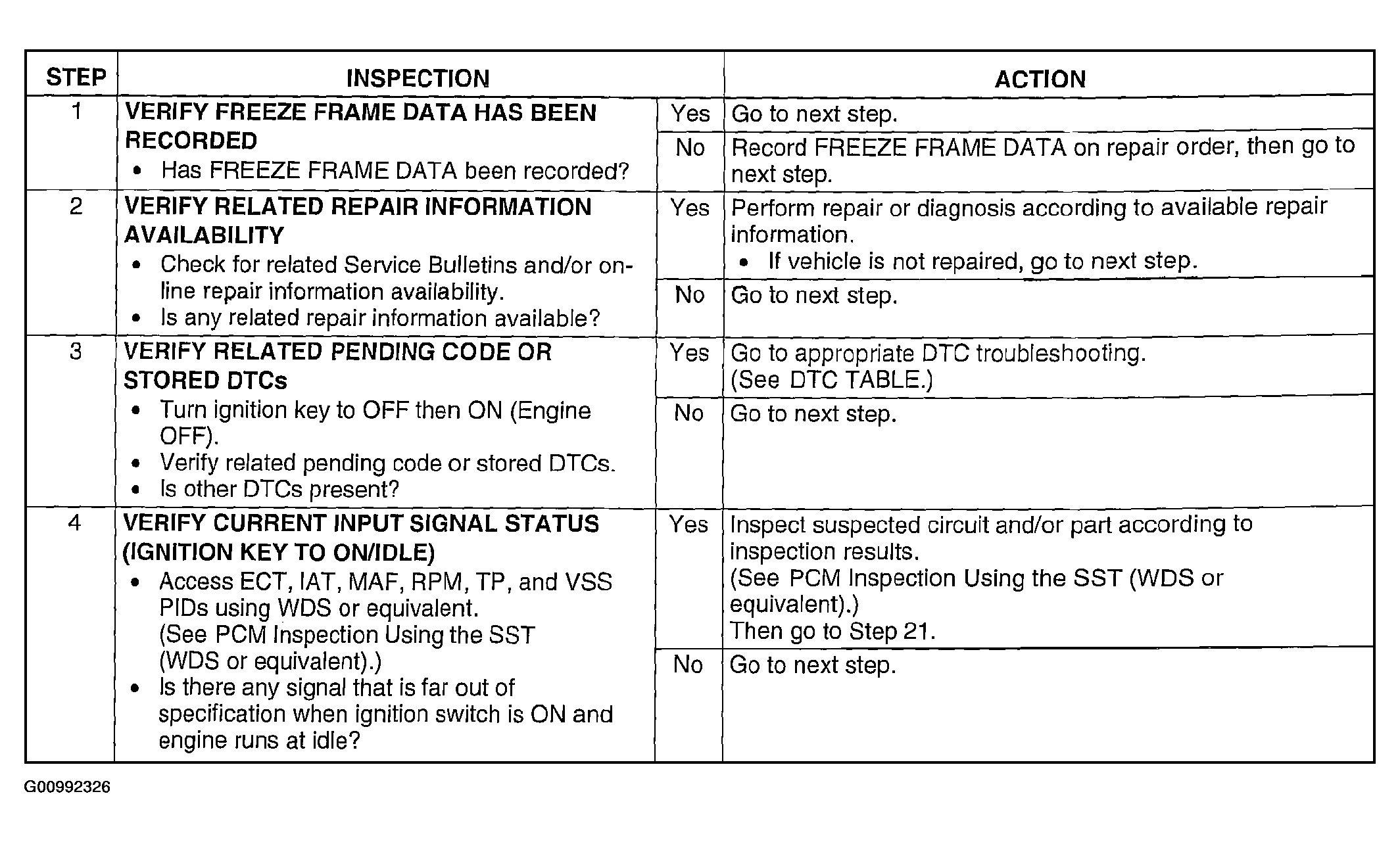

Fig 1: DTC P0300 Diagnostic Procedure Chart (Step 1-4)

Courtesy of MAZDA MOTORS CORP.

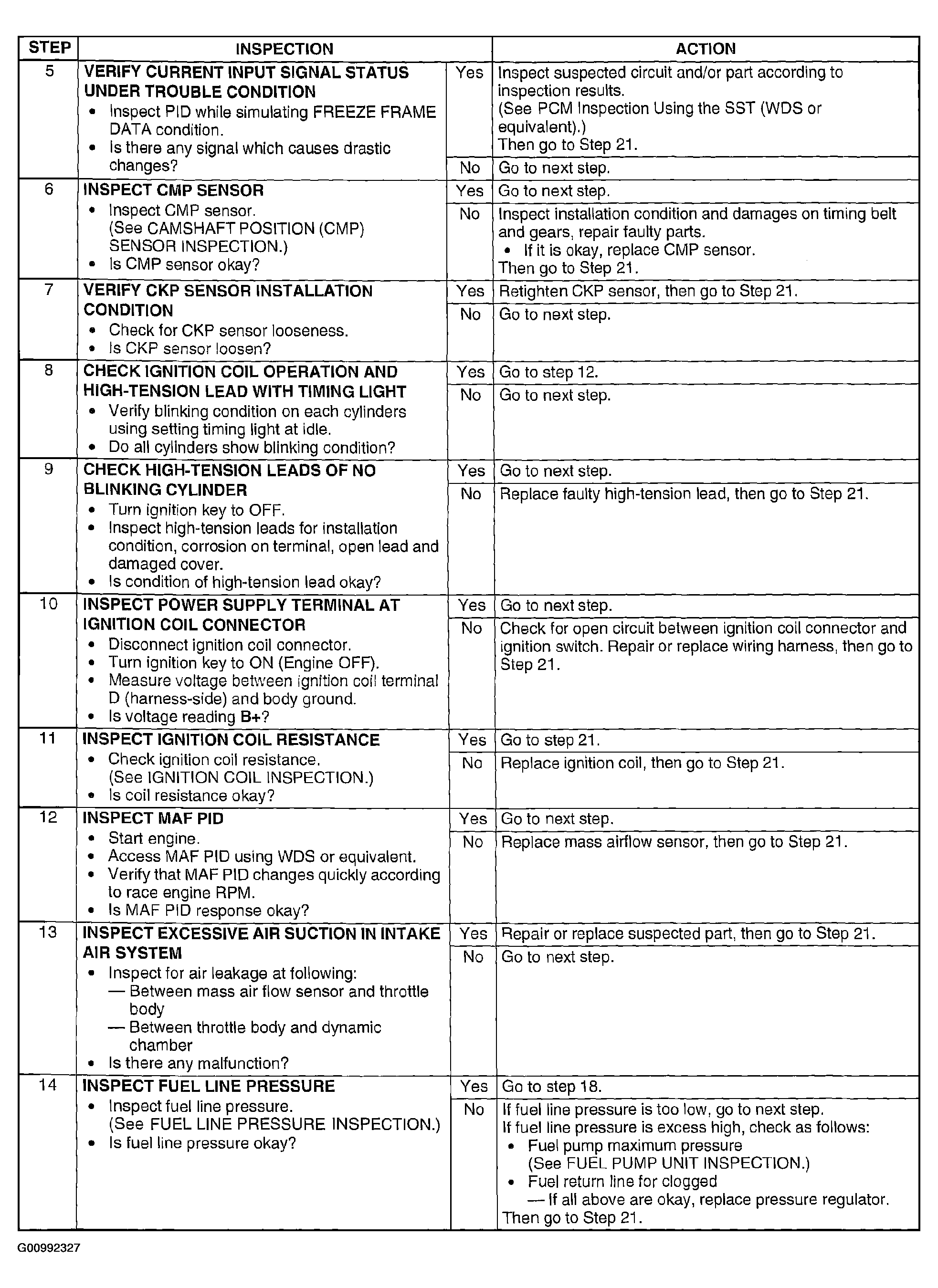

Fig 2: DTC P0300 Diagnostic Procedure Chart (Step 5-14)

Courtesy of MAZDA MOTORS CORP.

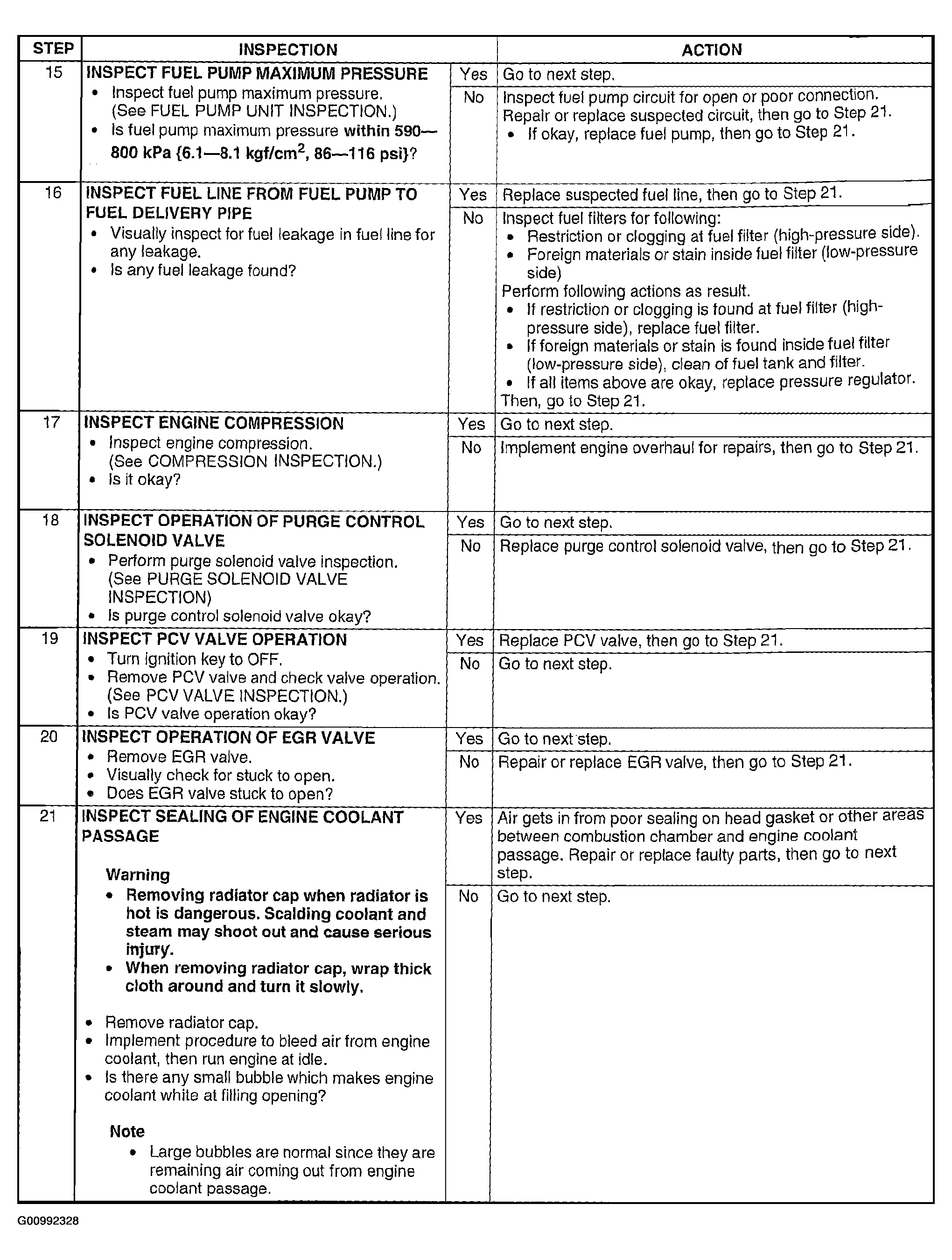

Fig 3: DTC P0300 Diagnostic Procedure Chart (Step 15-21)

Courtesy of MAZDA MOTORS CORP.

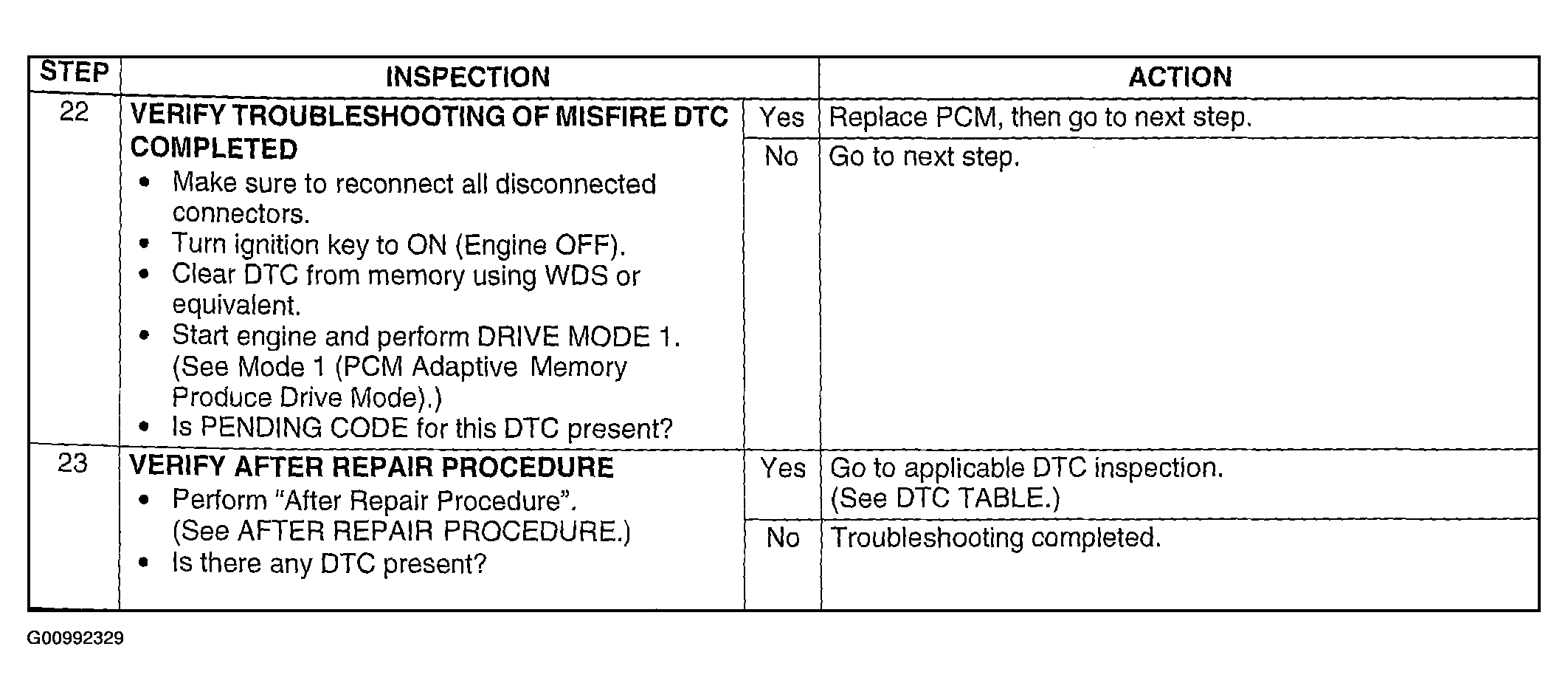

Fig 4: DTC P0300 Diagnostic Procedure Chart (Step 22-23)

Courtesy of MAZDA MOTORS CORP.
