DTC P0134, P0154: Ho2S (Front, RH) Circuit No Activity Detected; Ho2S (Front, LH) Circuit No Activity Detected: Notes

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: DTC P0134, P0154 Detection Condition & Possible Causes Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

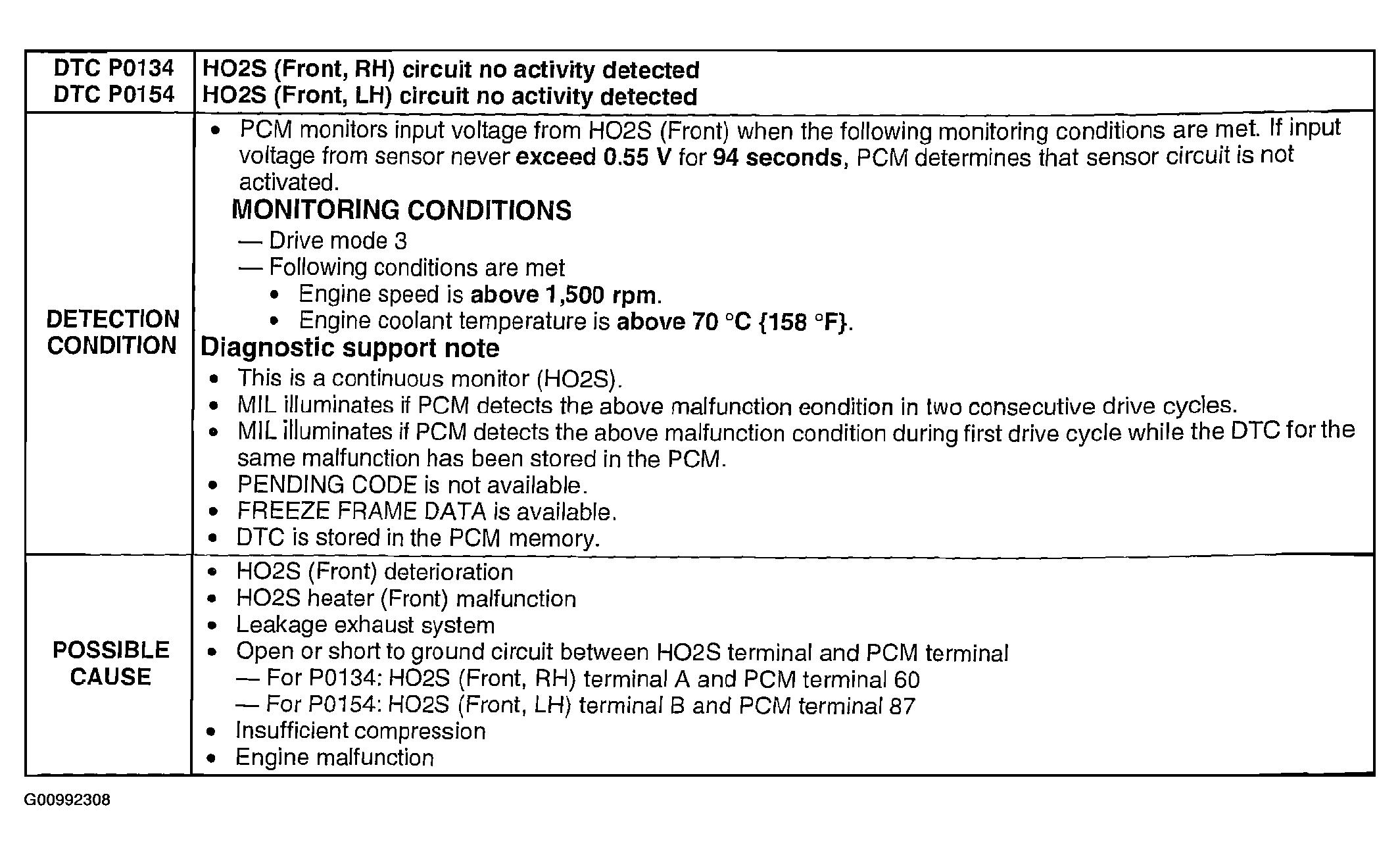

Fig 2: DTC P0134, P0154 Detection Condition & Possible Causes Chart (1 Of 2)

Courtesy of MAZDA MOTORS CORP.
