Dust Cover Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Mark the new dust cover in the same way as the removed one.
Align the marks of the new dust cover and the knuckle.

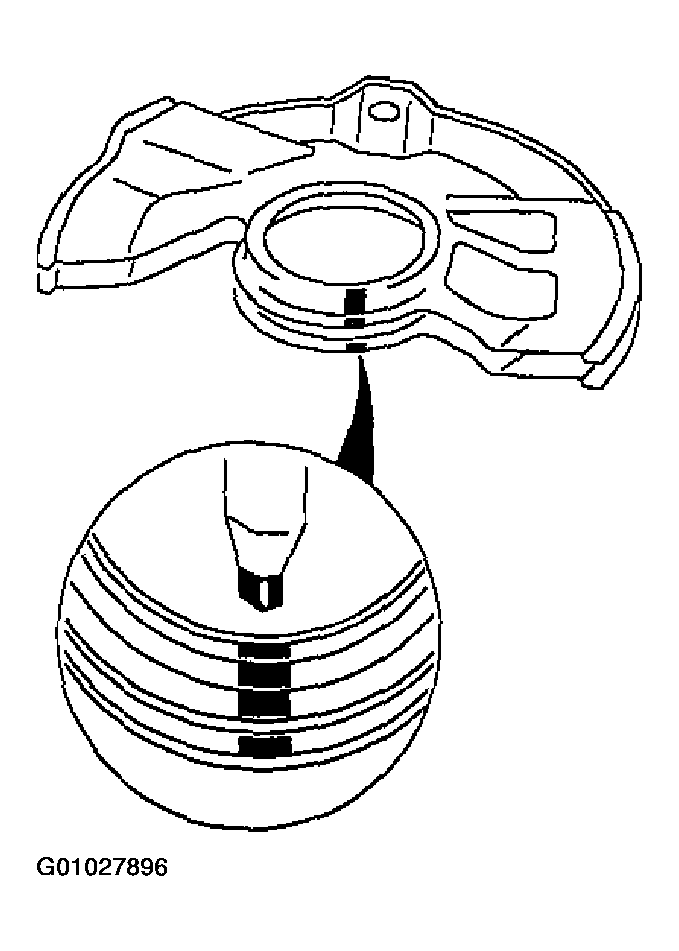

Fig 1: Making Alignment Mark For New Dust Cover
Courtesy of MAZDA MOTORS CORP.
Install the new dust cover using the SSTs.

Fig 2: Installing Dust Cover
Courtesy of MAZDA MOTORS CORP.
