No.5 Engine Stalls-After Start/At Idle: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

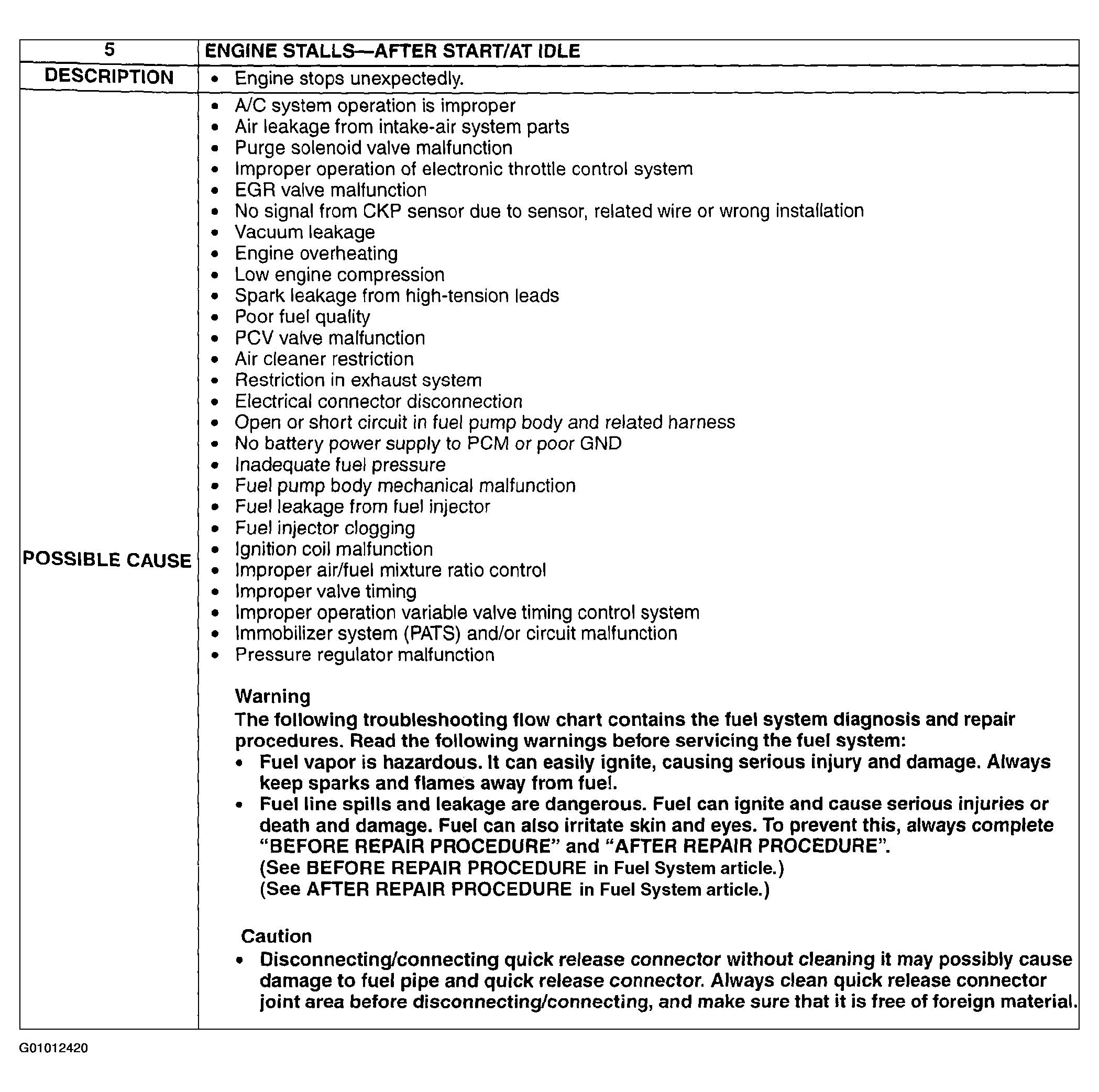

Fig 1: Symptom No.5 Engine Stalls-After Start/At Idle - Description & Possible Causes Chart

Courtesy of MAZDA MOTORS CORP.
