Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

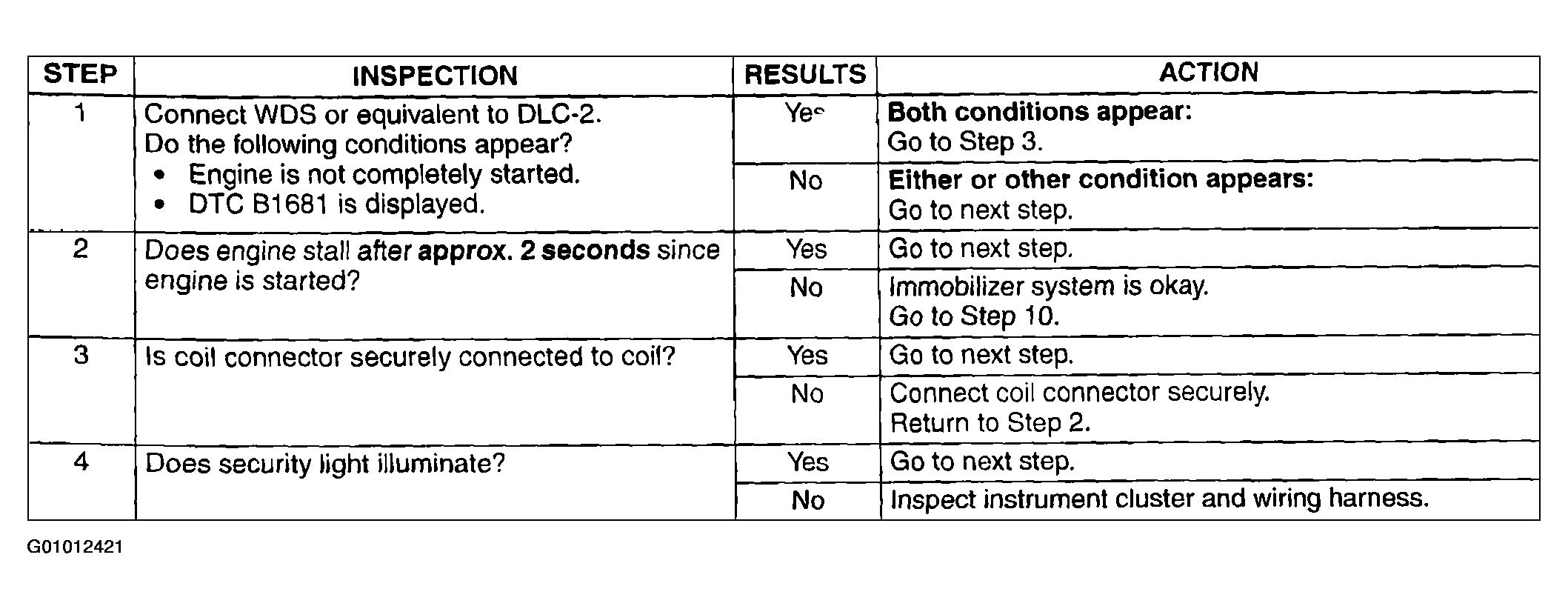

Fig 1: Symptom No.5 Engine Stalls-After Start/At Idle - Diagnostic Procedure Chart (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

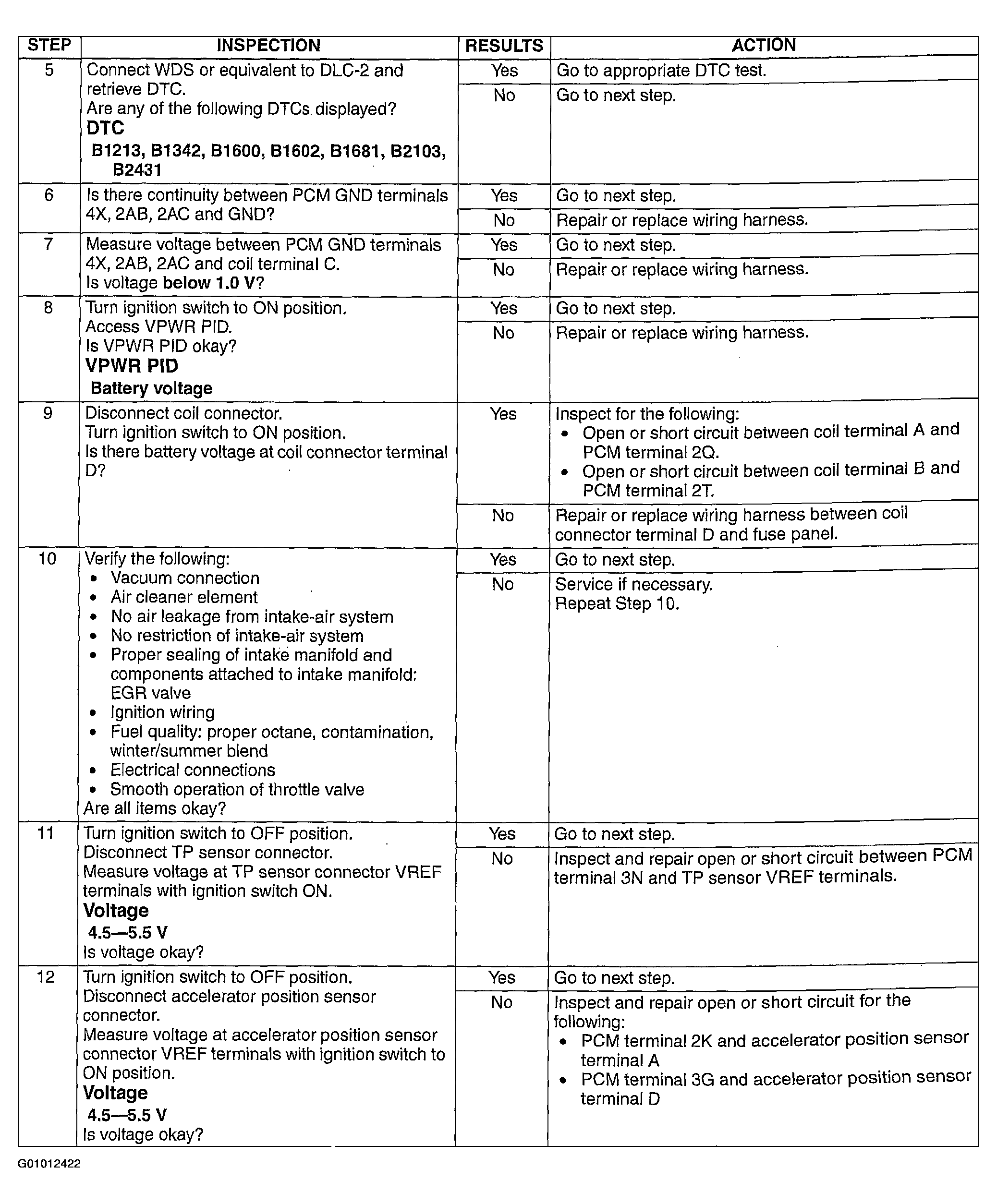

Fig 2: Symptom No.5 Engine Stalls-After Start/At Idle - Diagnostic Procedure Chart (Steps 5-12)

Courtesy of MAZDA MOTORS CORP.

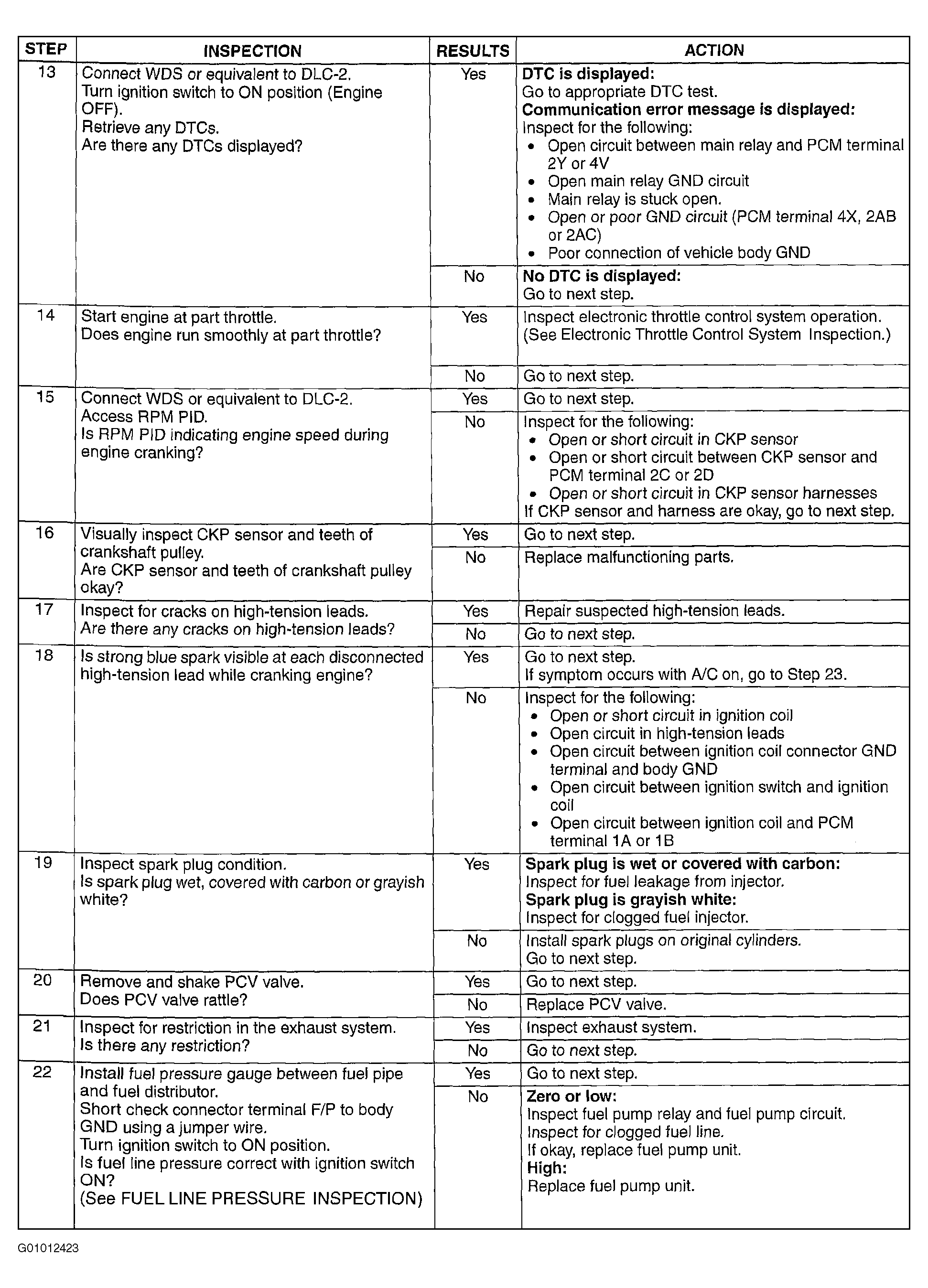

Fig 3: Symptom No.5 Engine Stalls-After Start/At Idle - Diagnostic Procedure Chart (Steps 13-22)

Courtesy of MAZDA MOTORS CORP.

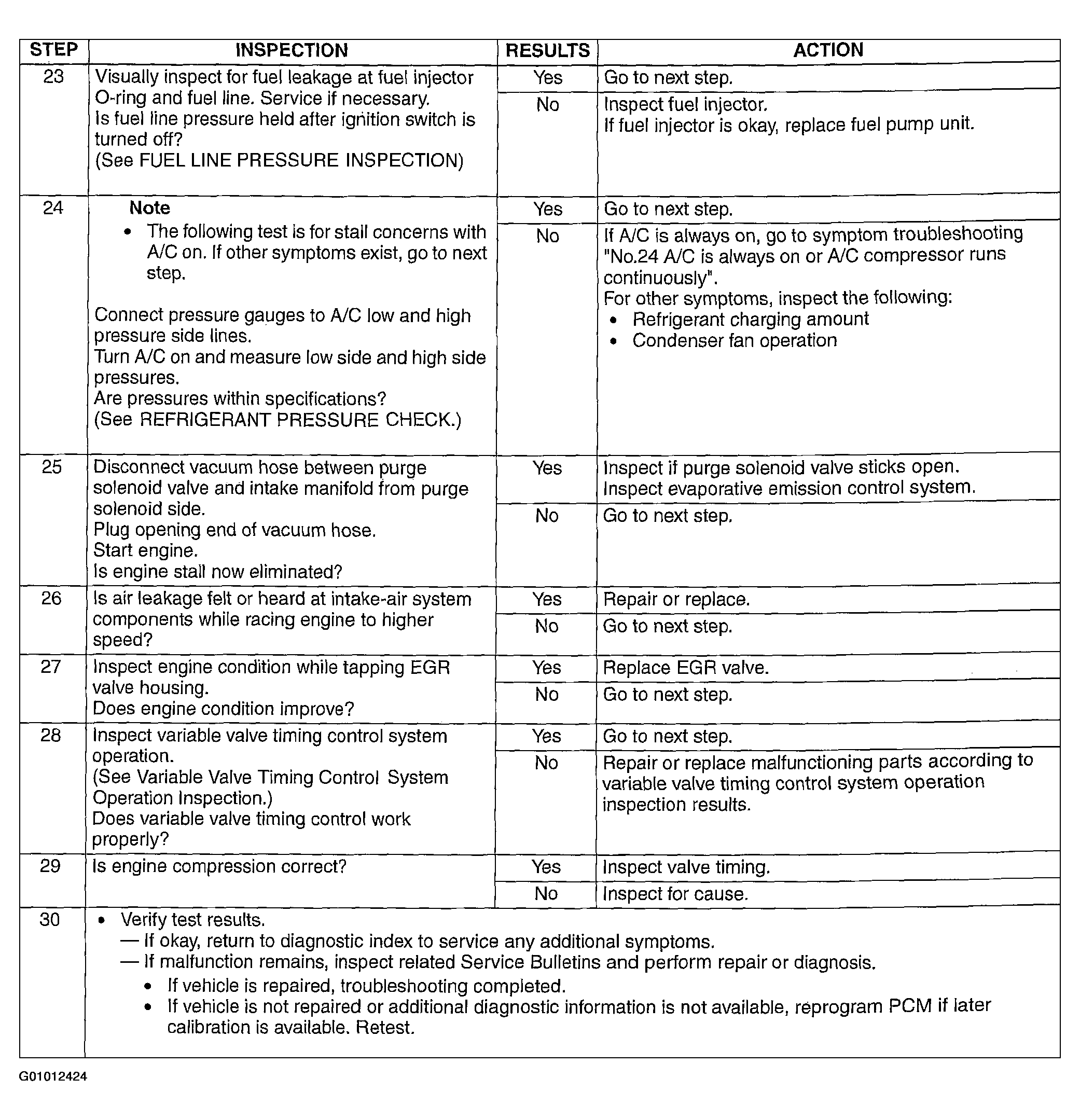

Fig 4: Symptom No.5 Engine Stalls-After Start/At Idle - Diagnostic Procedure Chart (Steps 23-30)

Courtesy of MAZDA MOTORS CORP.
