Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

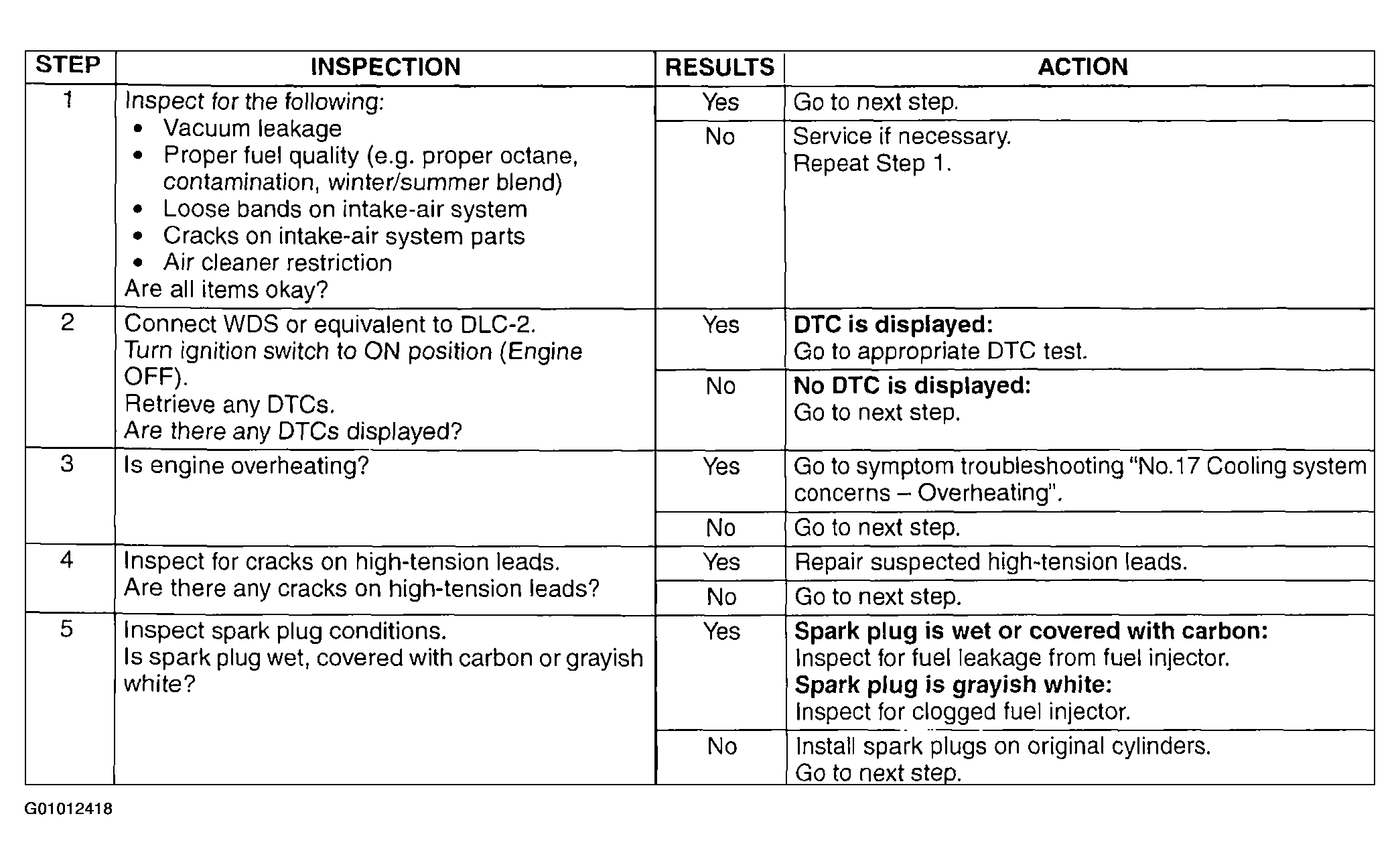

Fig 1: Symptom No.4 Hard To Start/Long Crank/Erratic Start/Erratic Crank - Diagnostic Procedure Chart (Steps 1-5)

Courtesy of MAZDA MOTORS CORP.

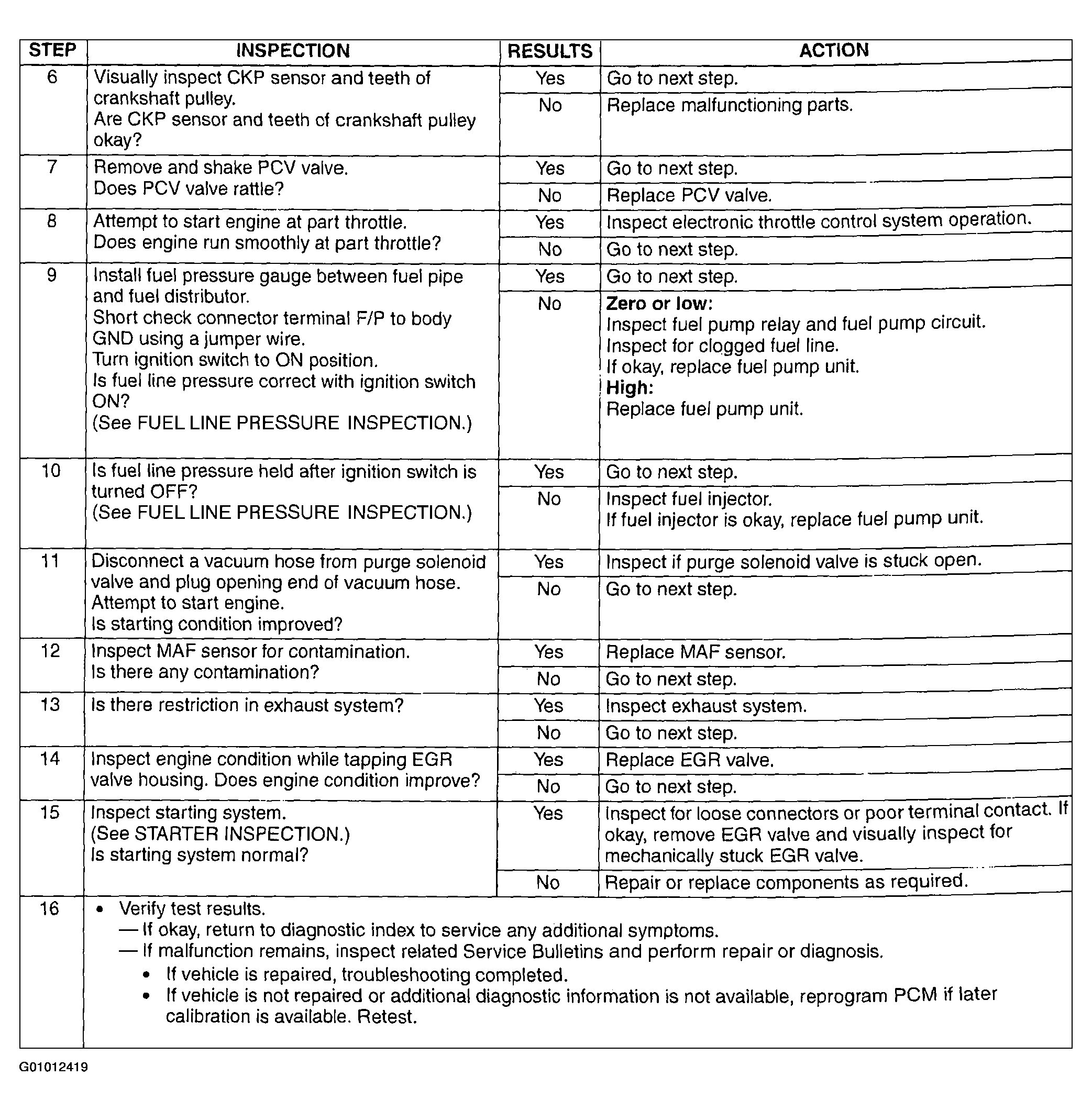

Fig 2: Symptom No.4 Hard To Start/Long Crank/Erratic Start/Erratic Crank - Diagnostic Procedure Chart (Steps 6-16)

Courtesy of MAZDA MOTORS CORP.
