Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

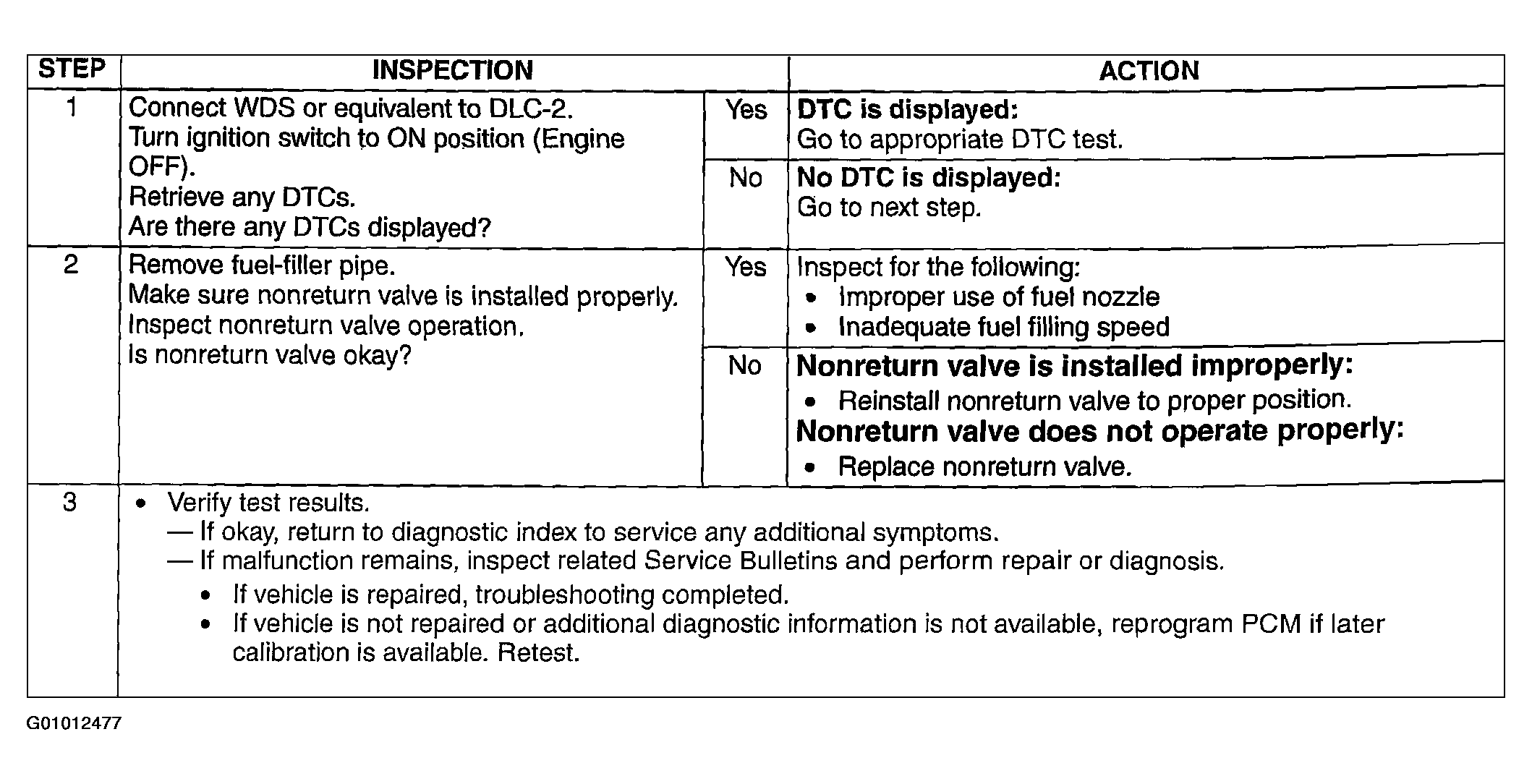

Fig 1: Symptom No.27 Fuel Refill Concerns - Diagnostic Procedure Chart
G01012477Courtesy of MAZDA MOTORS CORP.
