No. 1 Melting Of Main Or Other Fuses

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

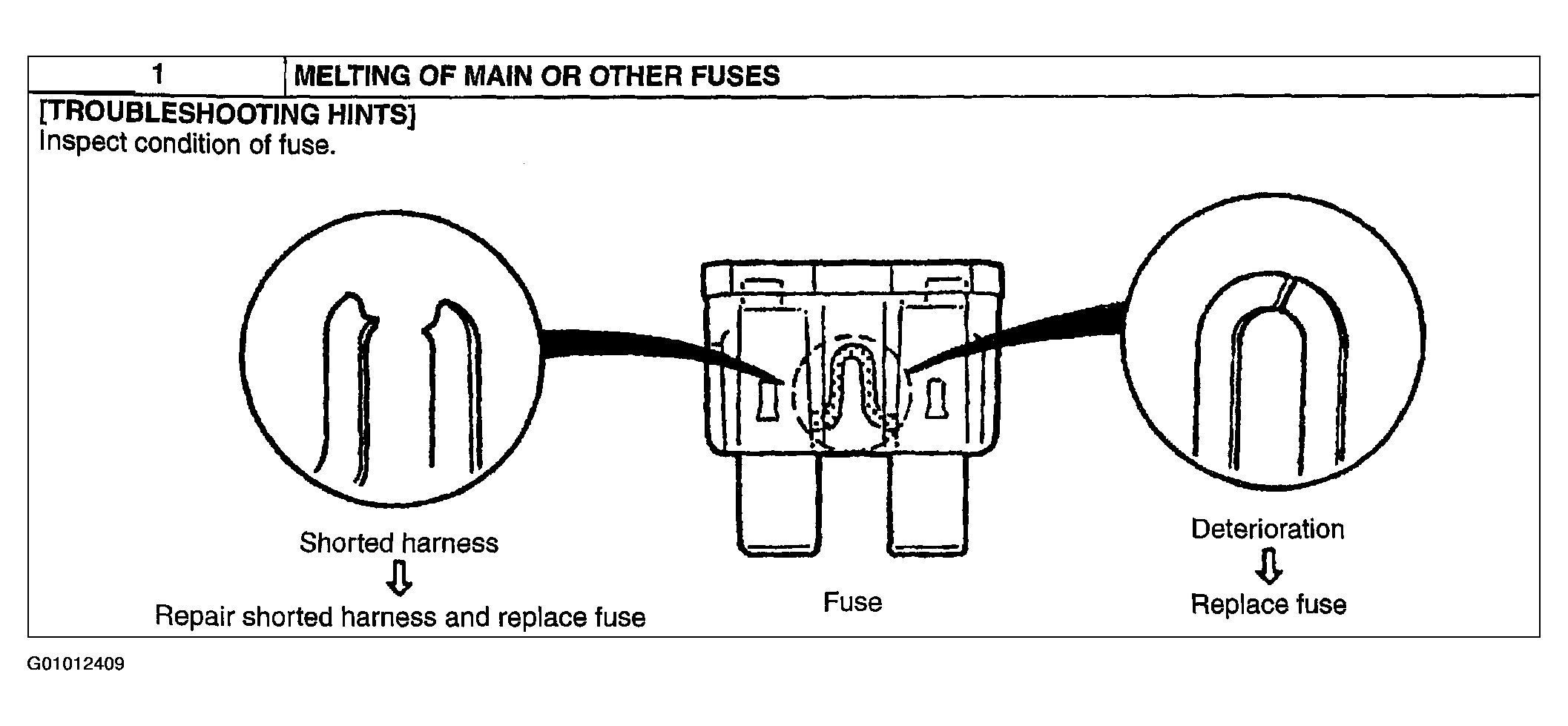

Fig 1: Symptom No.1 Melting Of Main Or Other Fuses - Troubleshooting Hints (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

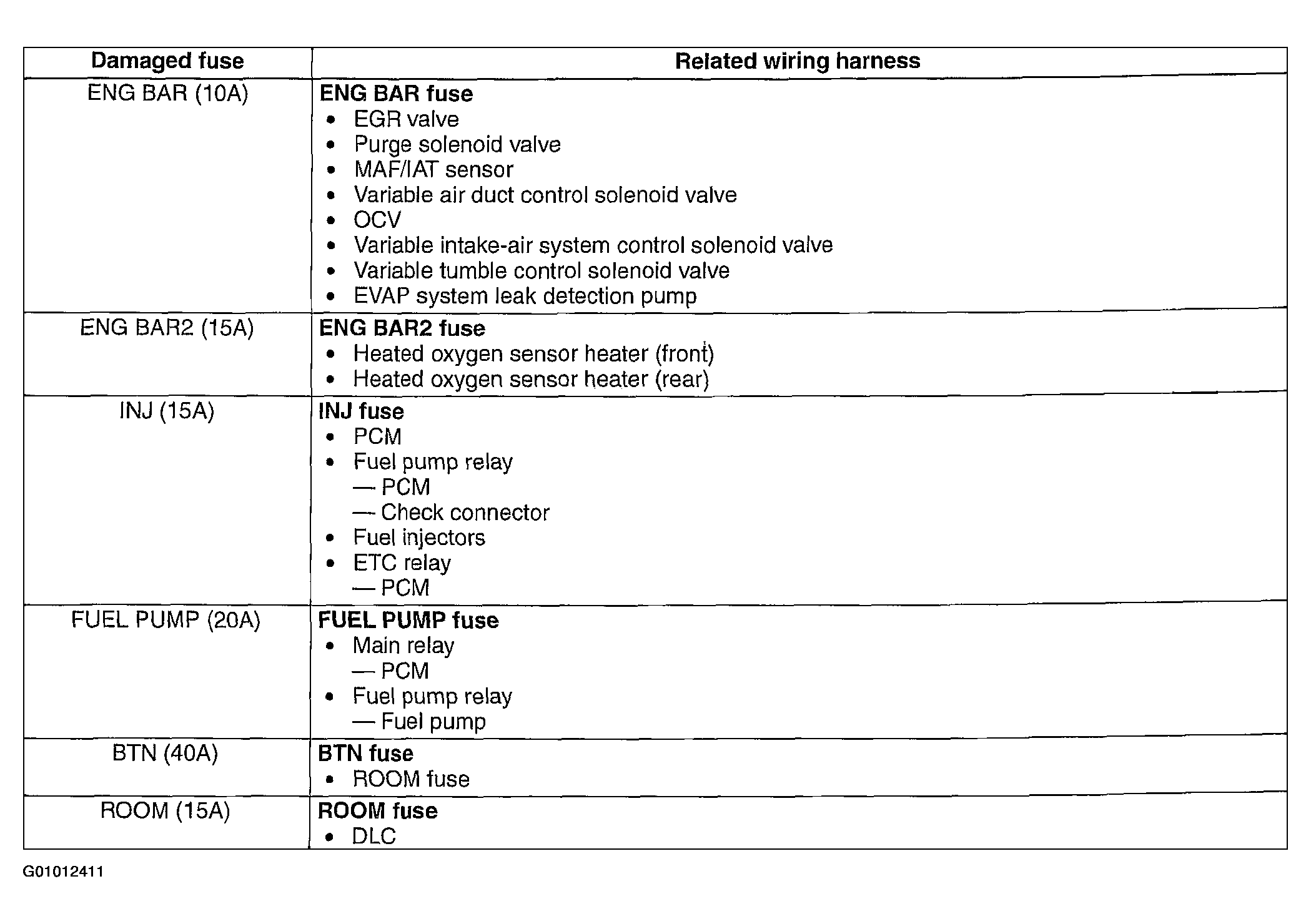

Fig 2: Symptom No.1 Melting Of Main Or Other Fuses -Troubleshooting Hints (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

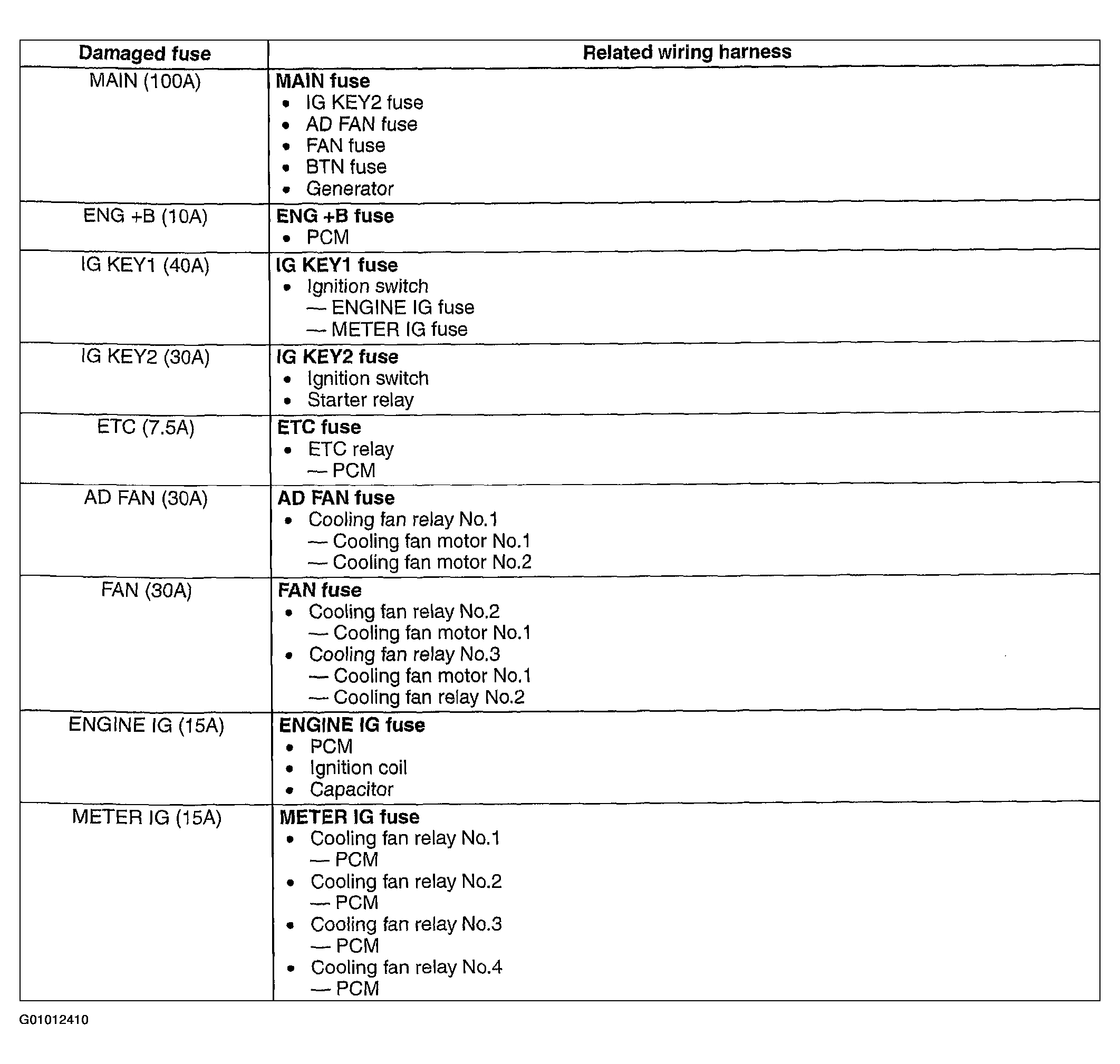

Fig 3: Symptom No.1 Melting Of Main Or Other Fuses - Troubleshooting Hints (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
