Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

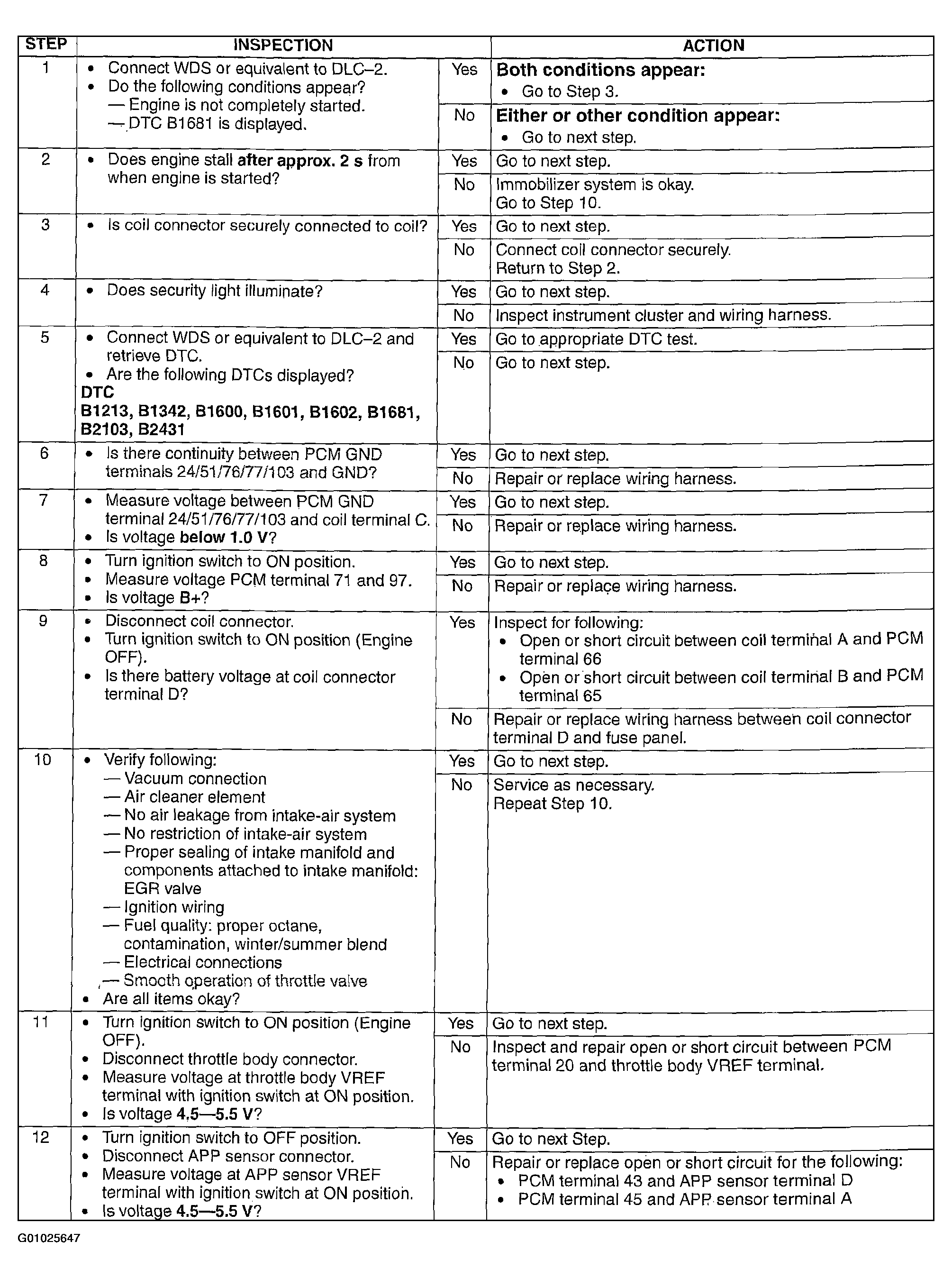

Fig 1: Symptom No.5 Engine Stalls-After Start/At Idle - Diagnostic Procedure (Steps 1-12)

Courtesy of MAZDA MOTORS CORP.

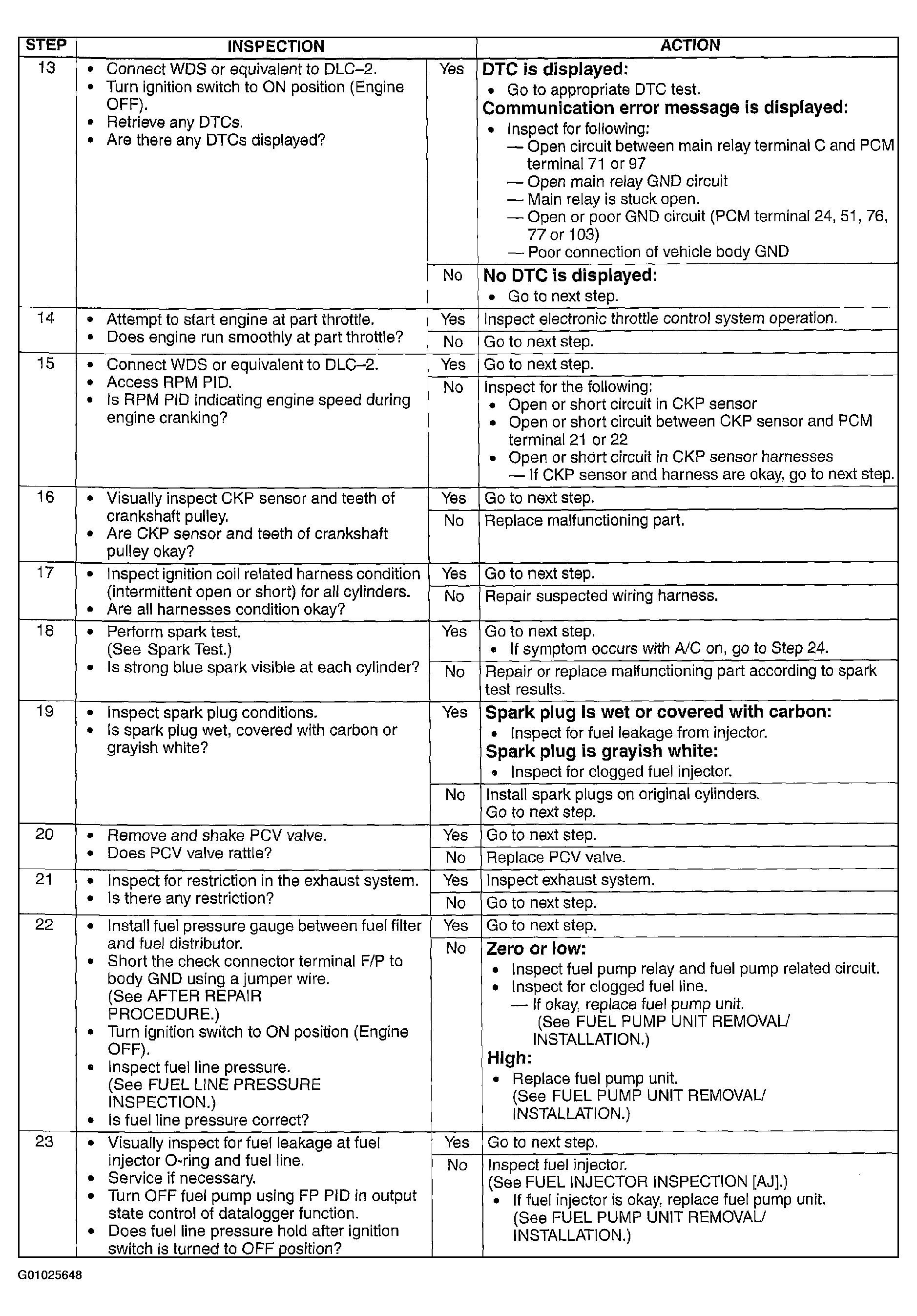

Fig 2: Symptom No.5 Engine Stalls-After Start/At Idle - Diagnostic Procedure (Steps 13-23)

Courtesy of MAZDA MOTORS CORP.

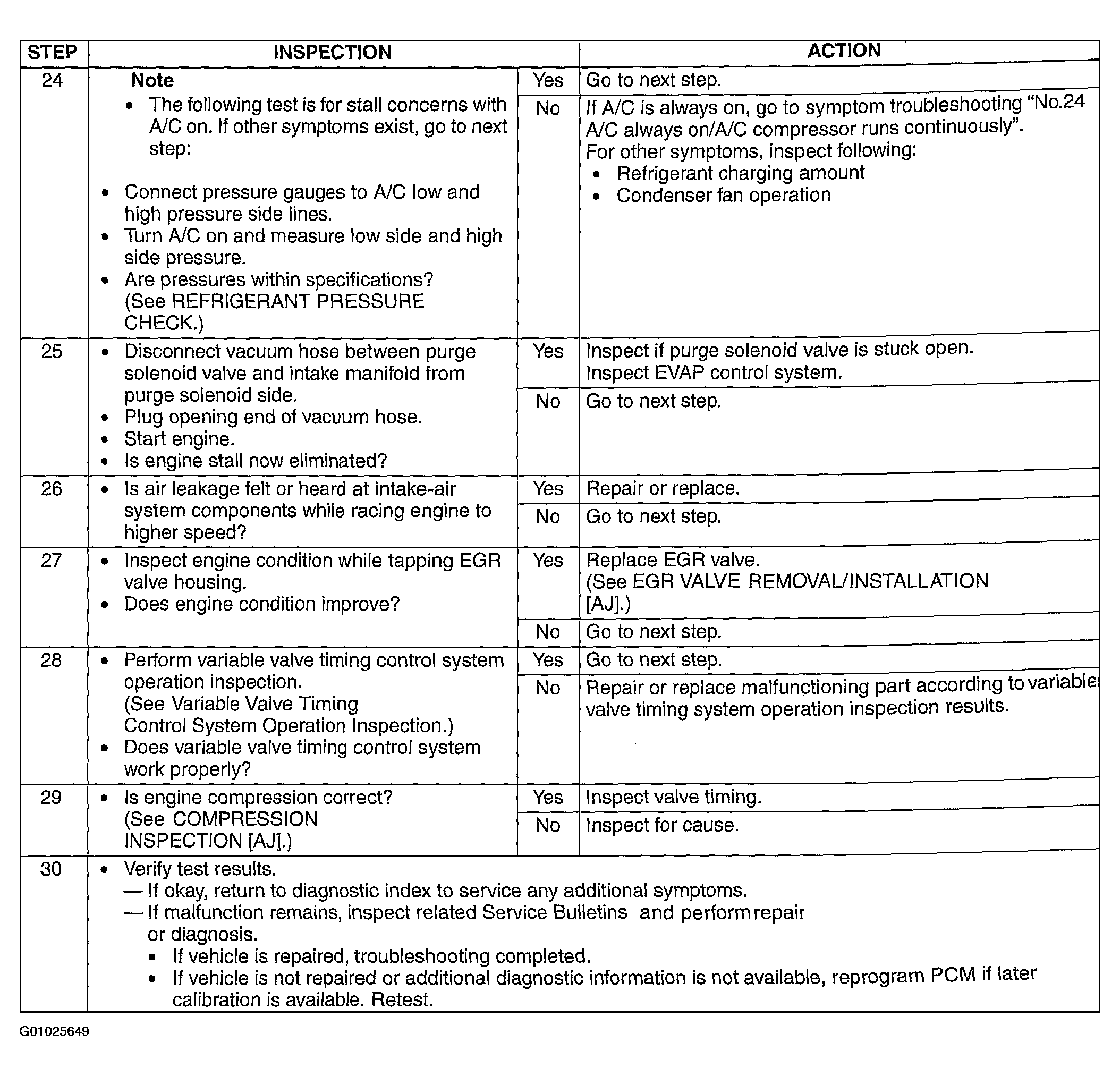

Fig 3: Symptom No.5 Engine Stalls-After Start/At Idle - Diagnostic Procedure (Steps 24-30)

Courtesy of MAZDA MOTORS CORP.
