Section 152 (Symptom Troubleshooting [Engine Control System (AJ))
>>
No.22 Vibration Concerns (Engine)
>>
Diagnostic procedure
Diagnostic procedure
WARNING:
This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

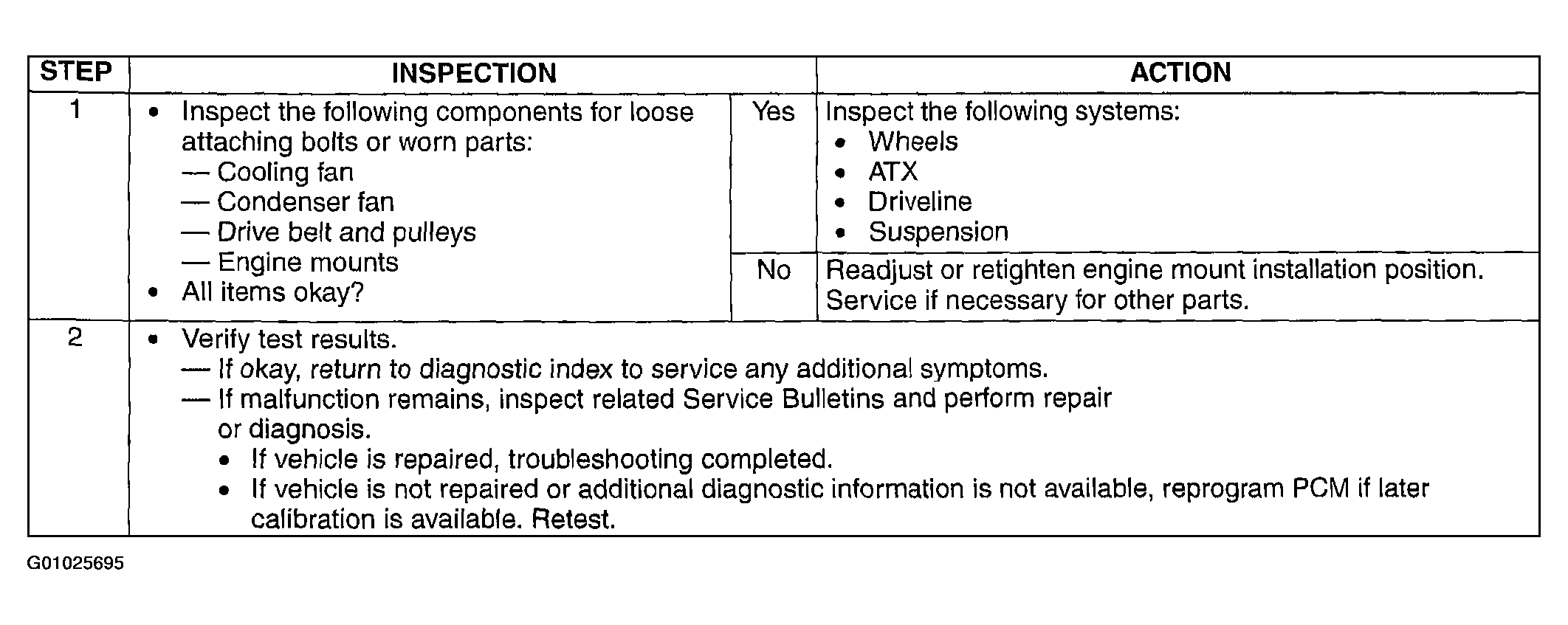

Fig 1: Symptom No.22 Vibration Concerns (Engine) - Diagnostic Procedure
Courtesy of MAZDA MOTORS CORP.
