Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

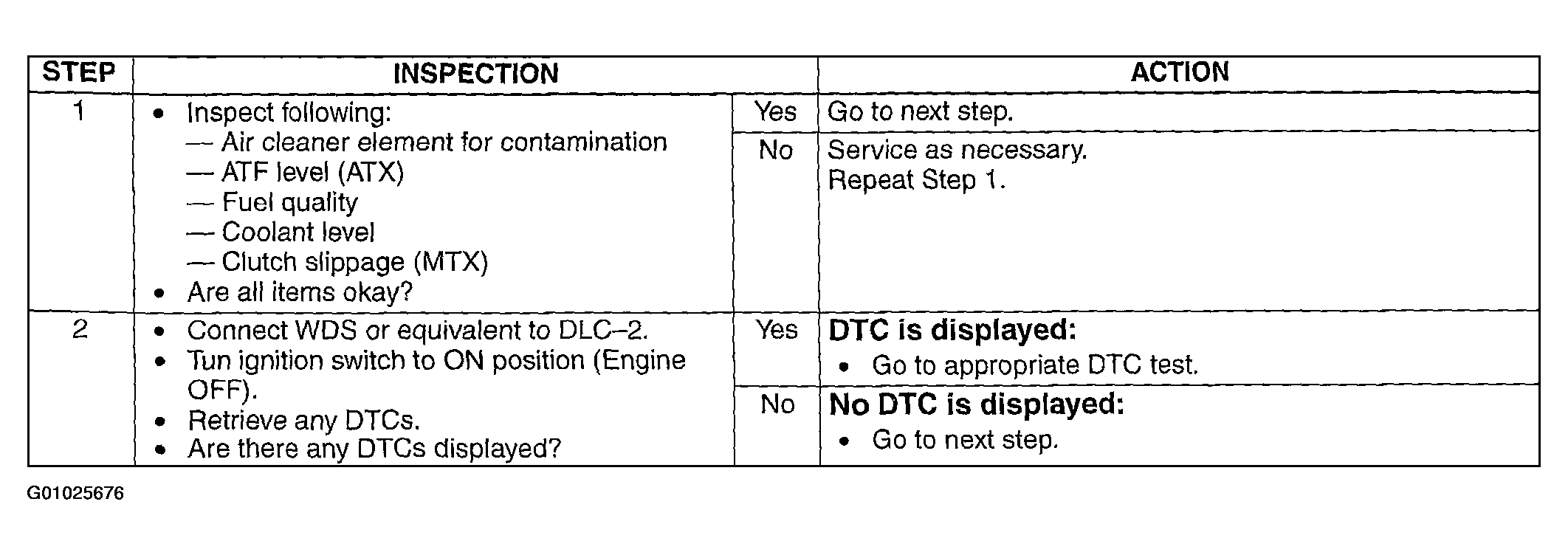

Fig 1: Symptom No.14 Poor Fuel Economy - Diagnostic Procedure (Steps 1 & 2)
G01025676Courtesy of MAZDA MOTORS CORP.

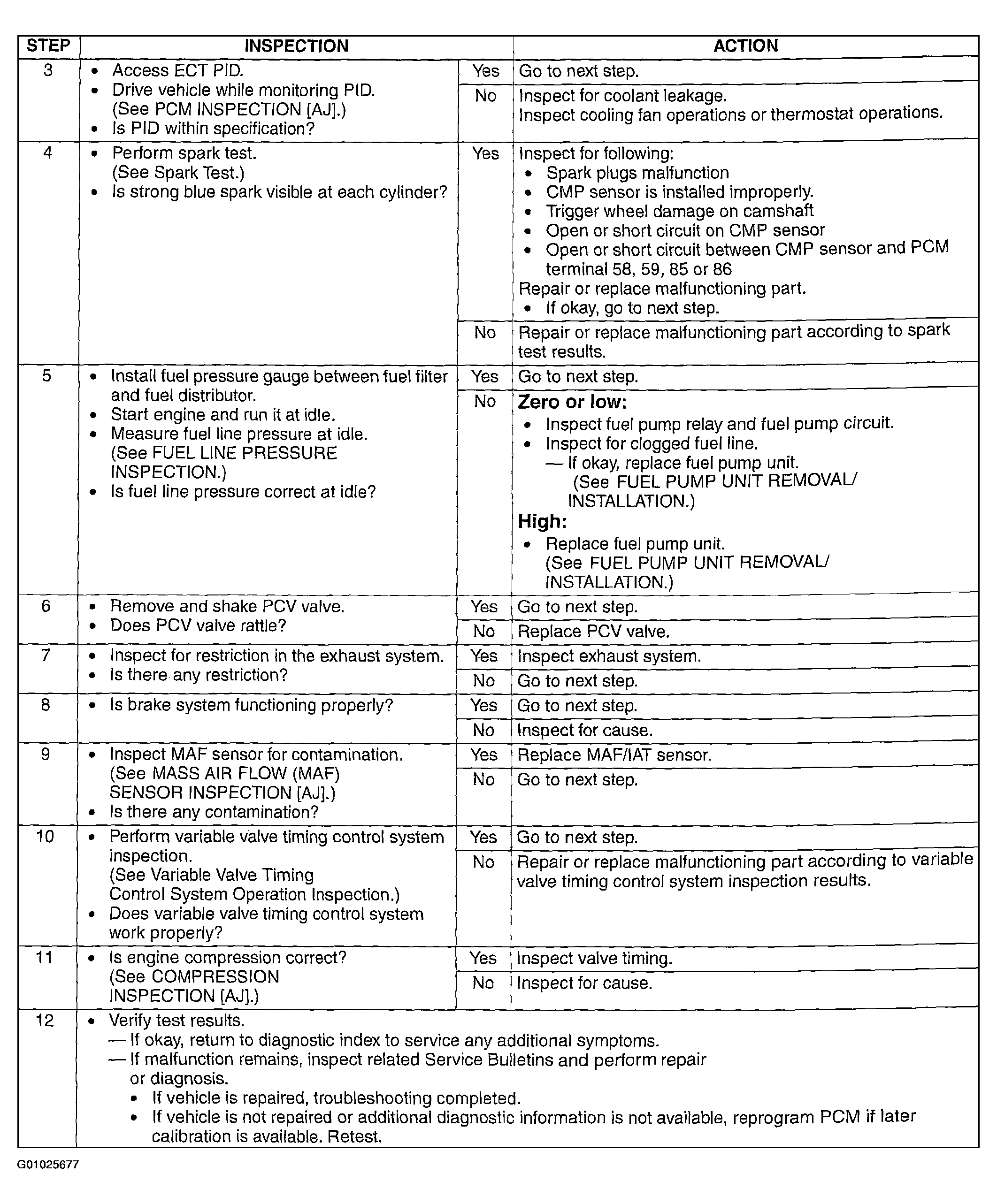

Fig 2: Symptom No.14 Poor Fuel Economy - Diagnostic Procedure (Steps 3-12)
G01025677Courtesy of MAZDA MOTORS CORP.
