Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

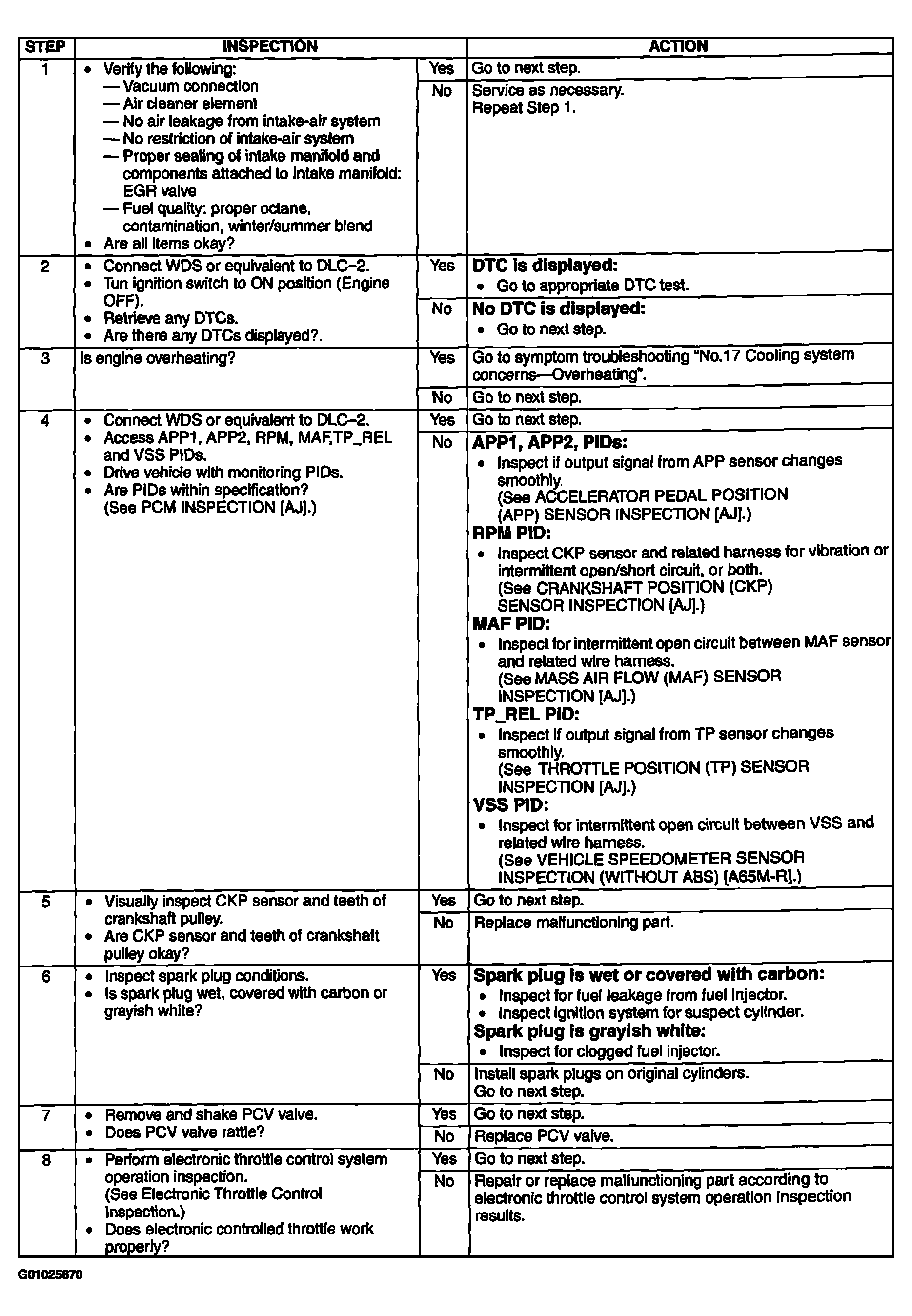

Fig 1: Symptom No.12 Lack/Loss Of Power-Acceleration/Cruise - Diagnostic Procedure (Steps 1-8)

Courtesy of MAZDA MOTORS CORP.

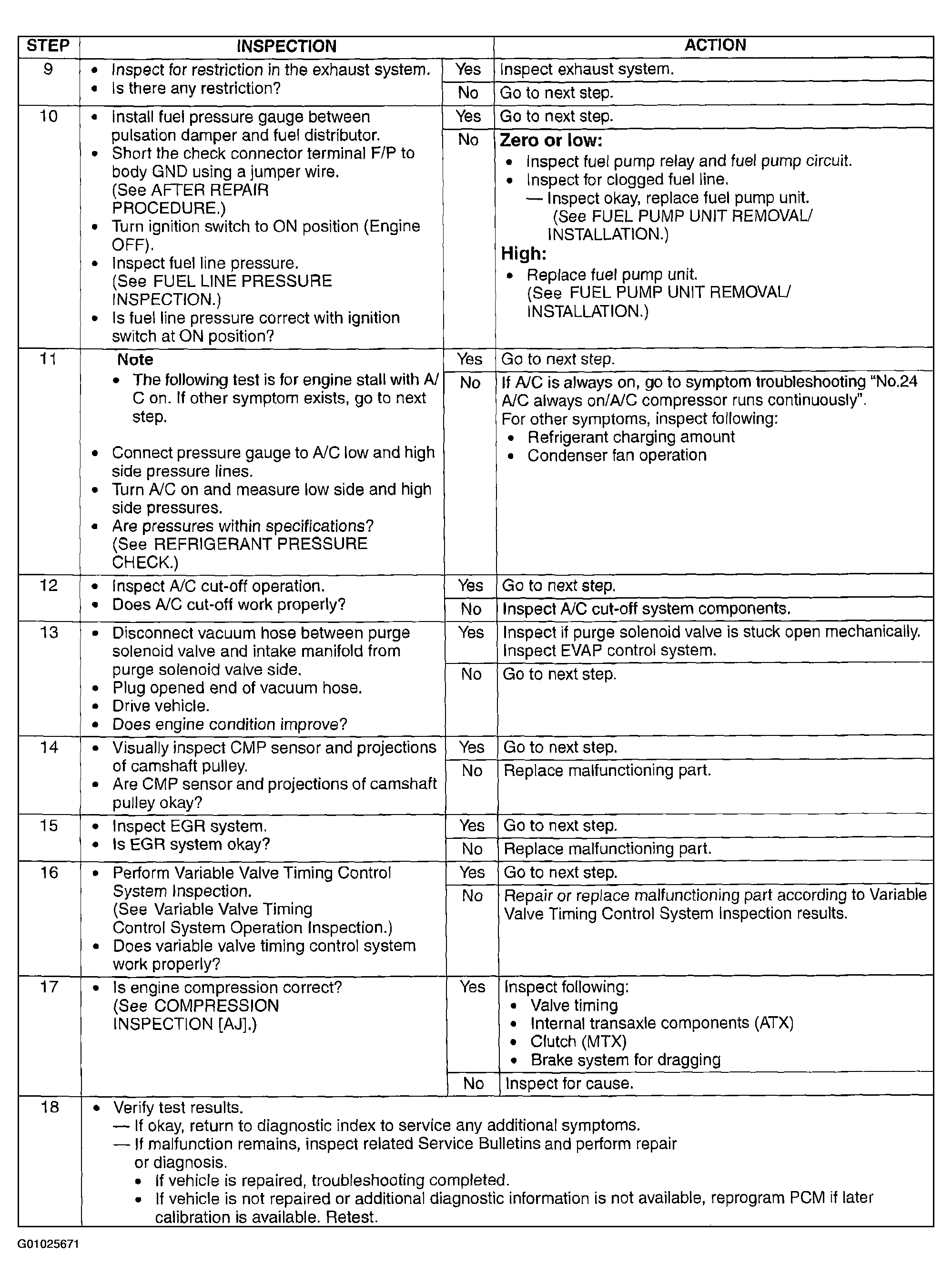

Fig 2: Symptom No.12 Lack/Loss Of Power-Acceleration/Cruise - Diagnostic Procedure (Steps 9-18)

Courtesy of MAZDA MOTORS CORP.
