Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

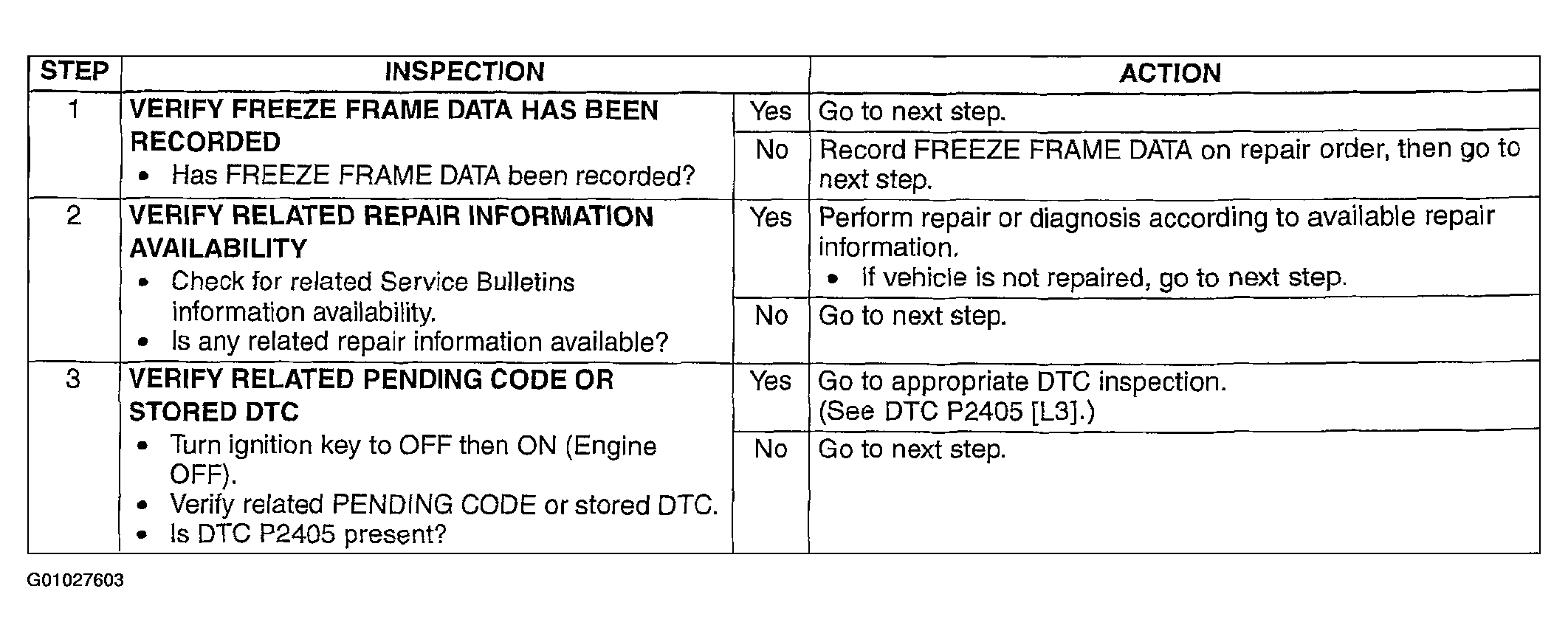

Fig 1: DTC P2401 - Diagnostic Procedure (Steps 1-3)
G01027603Courtesy of MAZDA MOTORS CORP.

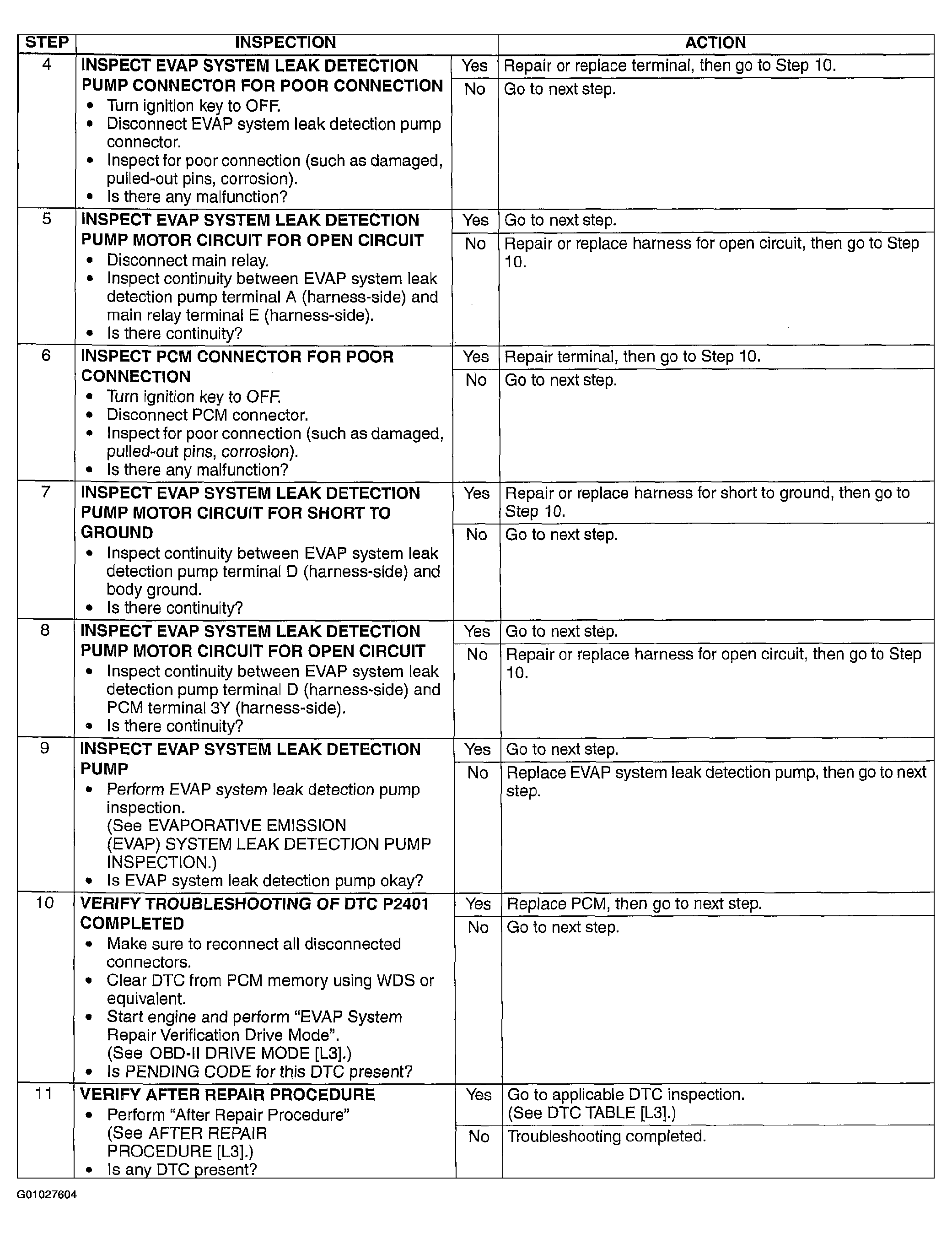

Fig 2: DTC P2401 - Diagnostic Procedure (Steps 4-11)
G01027604Courtesy of MAZDA MOTORS CORP.
