Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

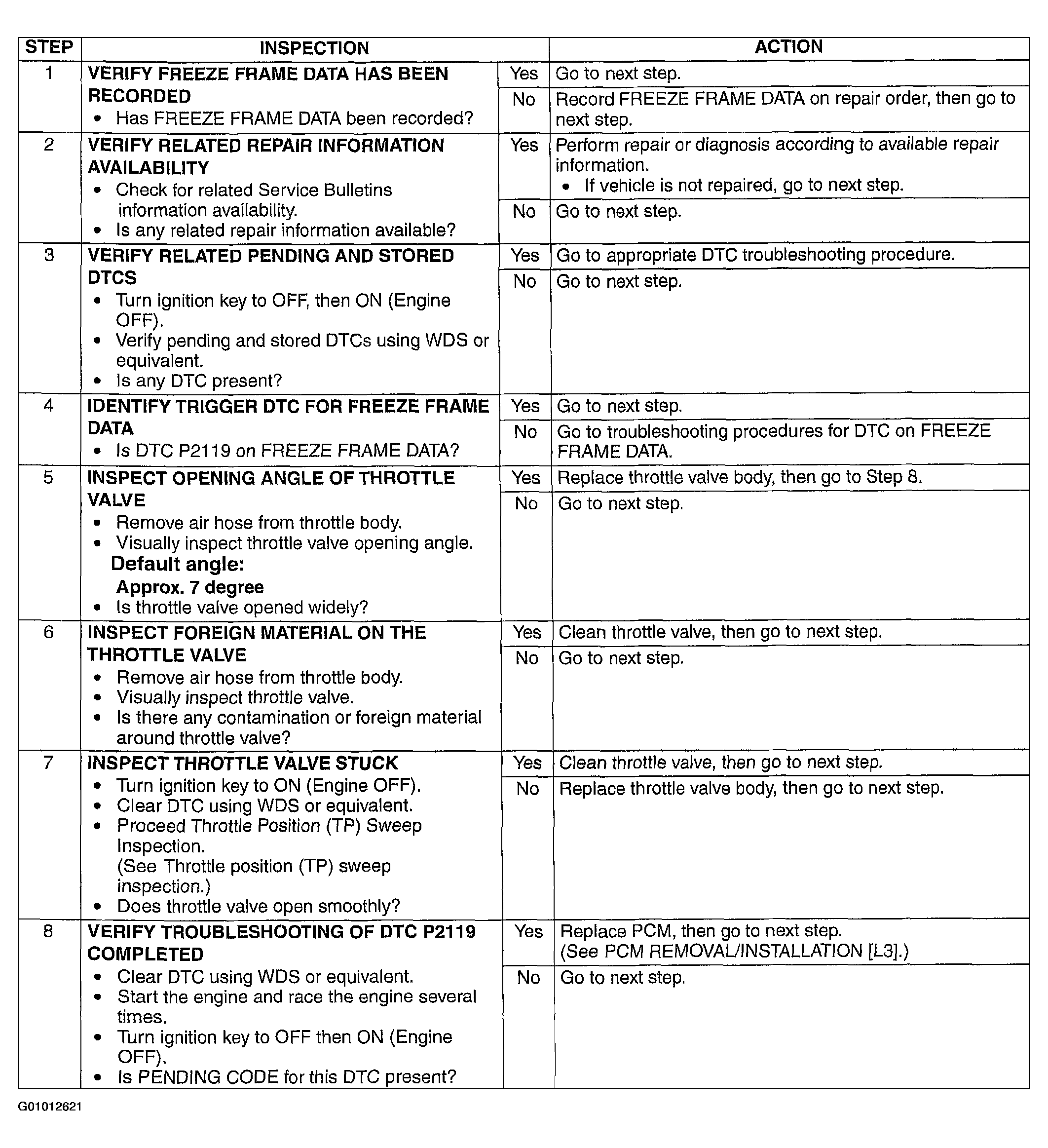

Fig 1: DTC P2119 - Diagnostic Procedure (Steps 1-8)
G01012621Courtesy of MAZDA MOTORS CORP.

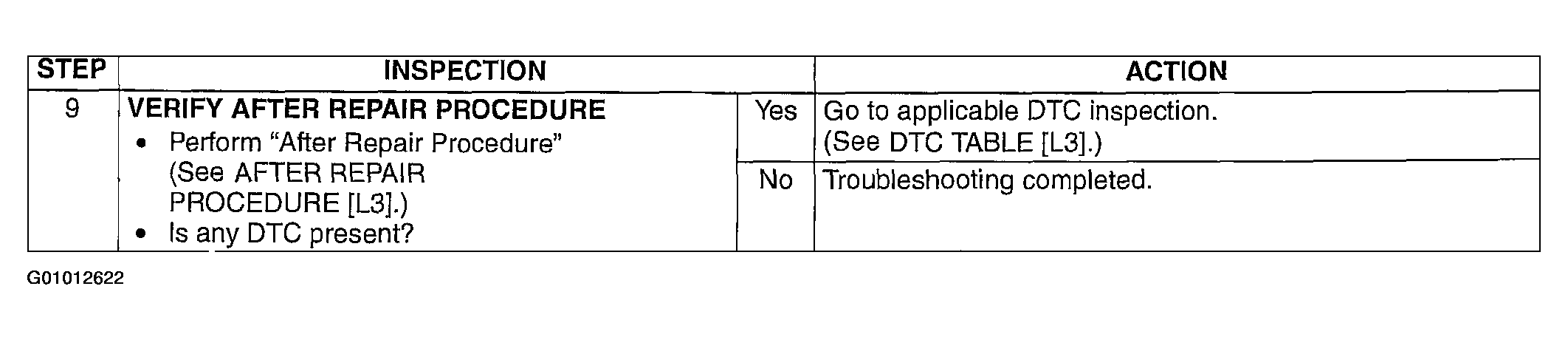

Fig 2: DTC P2119 - Diagnostic Procedure (Step 9)
G01012622Courtesy of MAZDA MOTORS CORP.
