Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

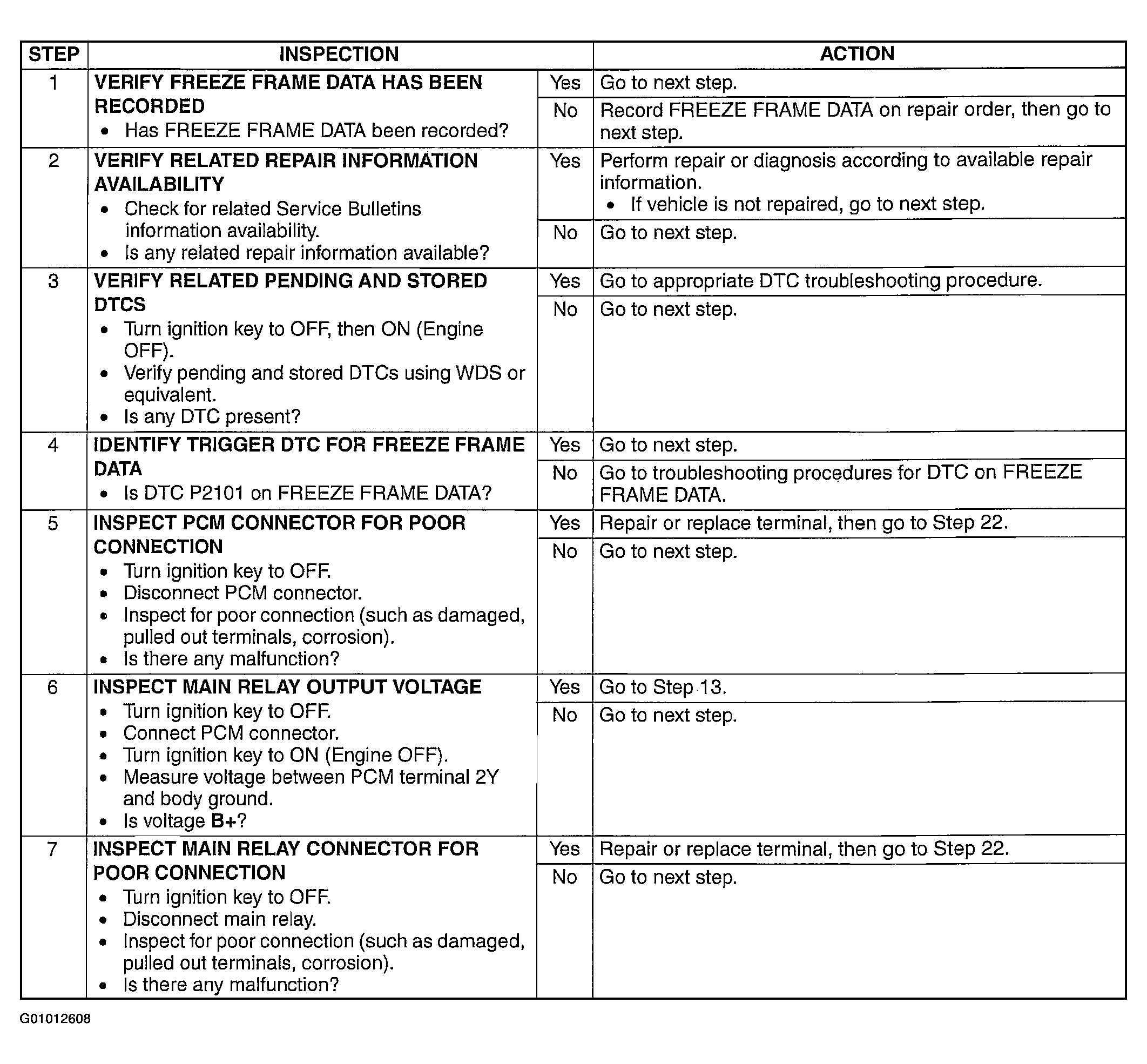

Fig 1: DTC P2101 - Diagnostic Procedure (Steps 1-7)

Courtesy of MAZDA MOTORS CORP.

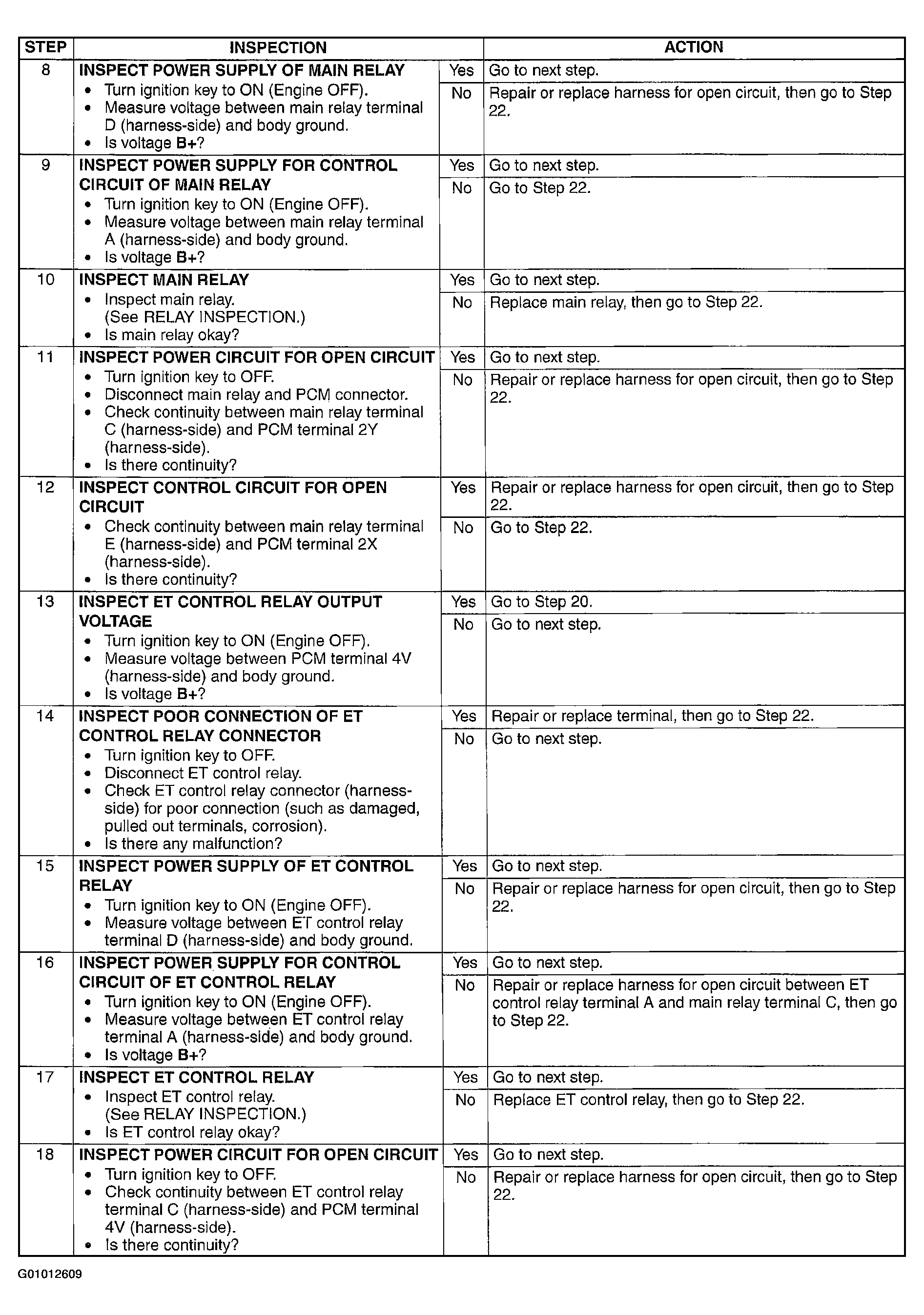

Fig 2: DTC P2101 - Diagnostic Procedure (Steps 8-18)

Courtesy of MAZDA MOTORS CORP.

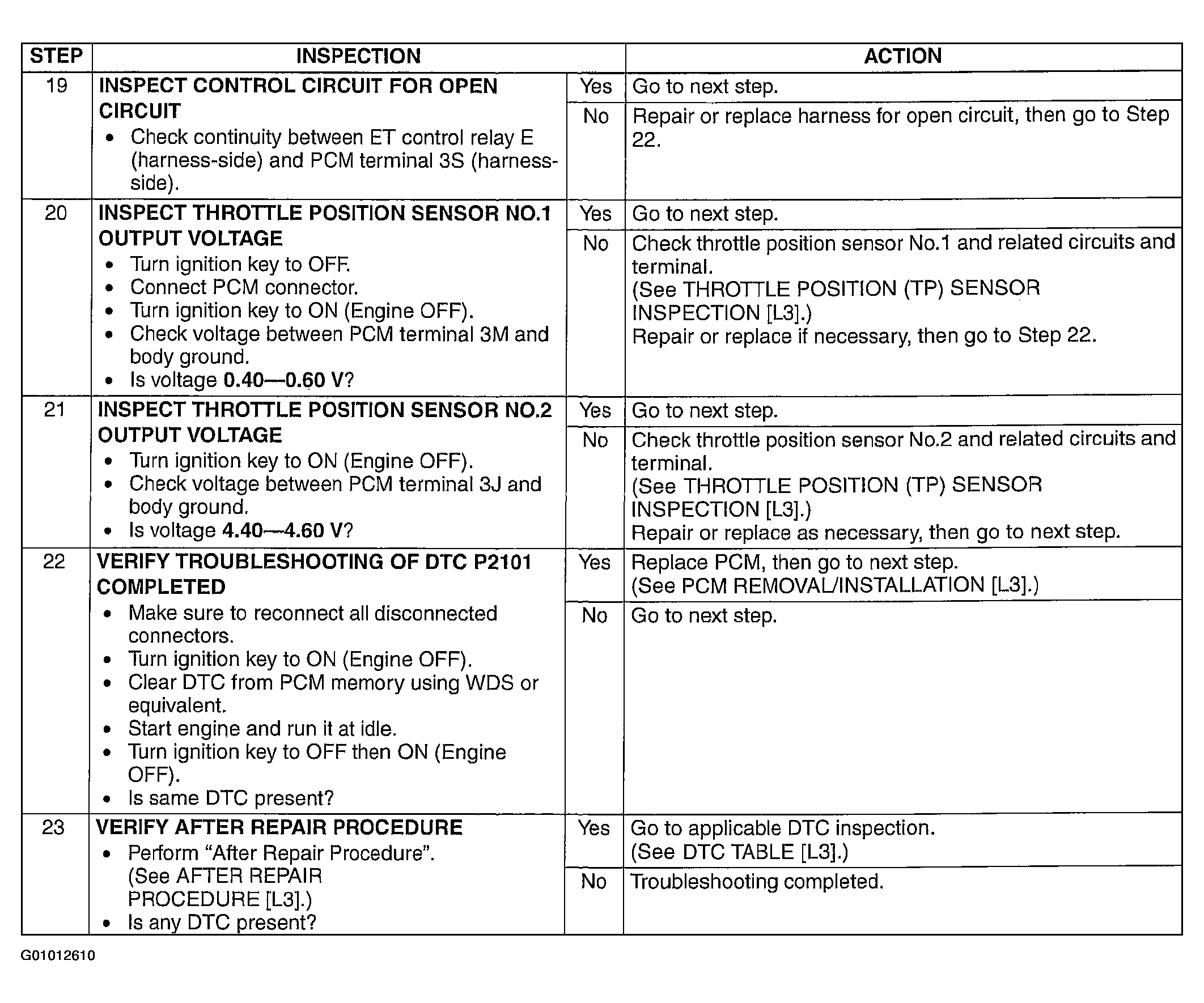

Fig 3: DTC P2101 - Diagnostic Procedure (Steps 19-23)

Courtesy of MAZDA MOTORS CORP.
