Home >> Mazda >> 2002 >> Tribute LX, 4WD >> Repair and Diagnosis >> External Pages >> Different car >> Section 151 (On-Board Diagnostic [Engine Control System L3)) >> DTC P0662: Variable Intake-Air System (VIS) Control Solenoid Valve Circuit High Input >> Diagnostic procedure

Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

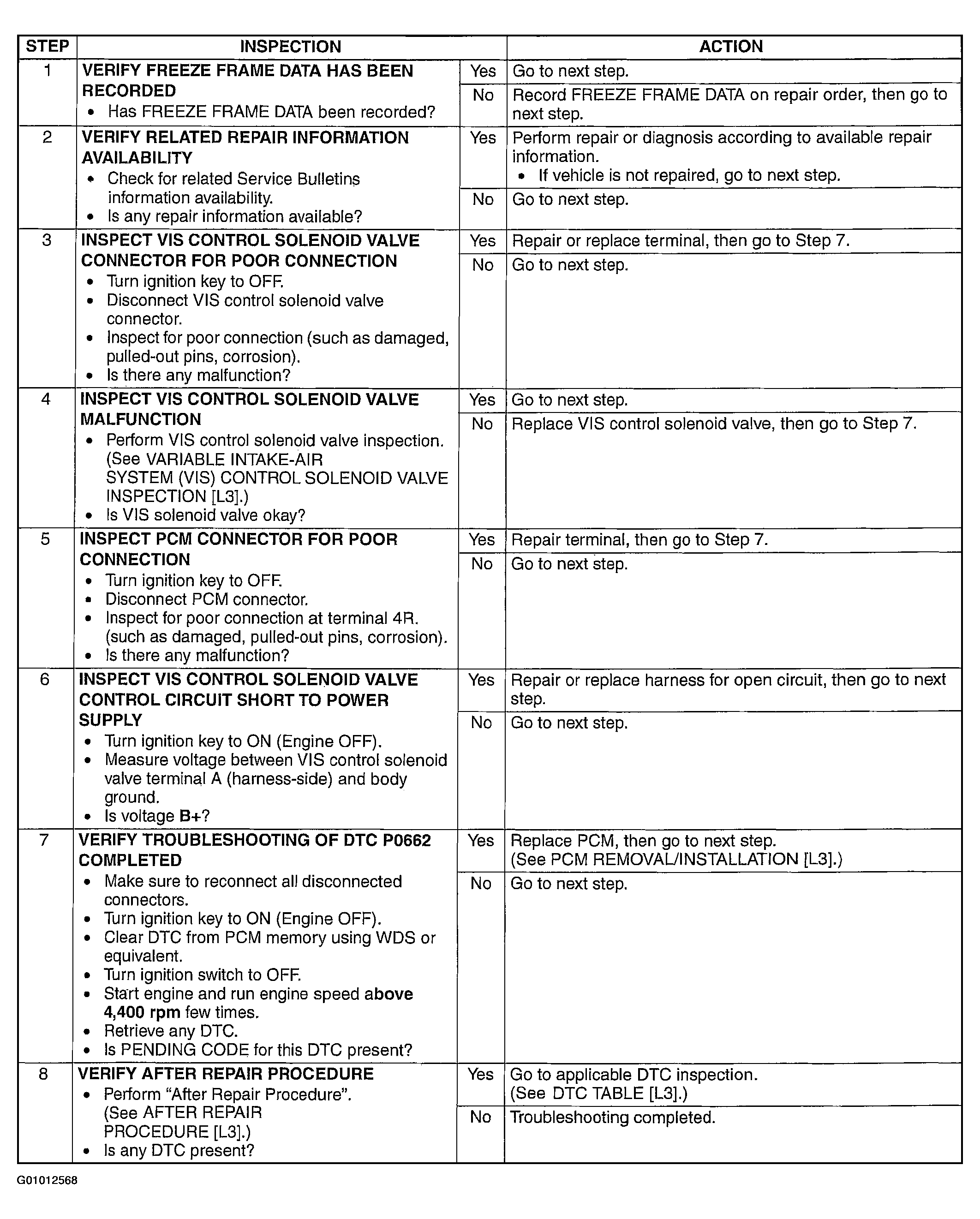

Fig 1: DTC P0662 - Diagnostic Procedure
G01012568Courtesy of MAZDA MOTORS CORP.
