Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

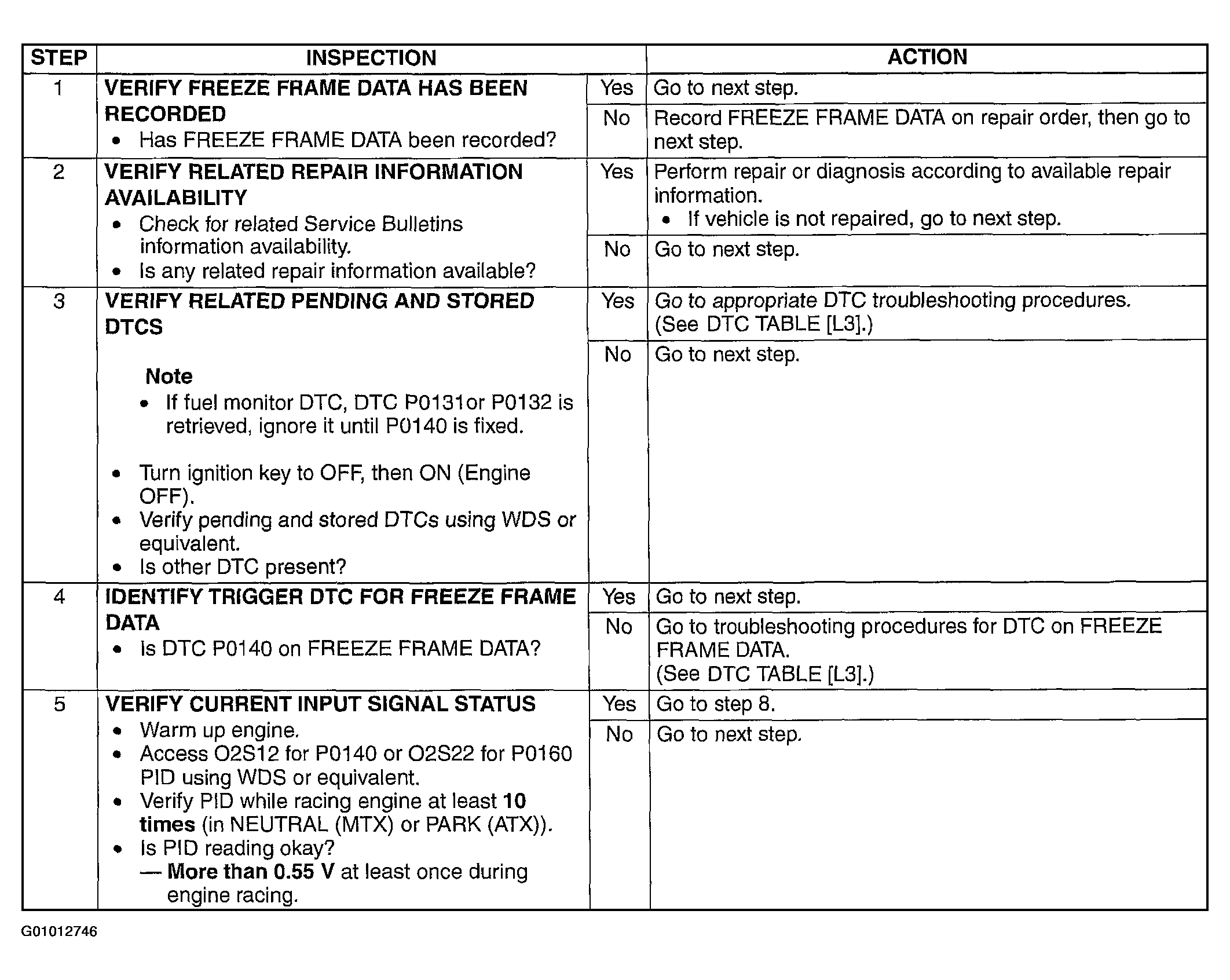

Fig 1: DTC P0140 - Diagnostic Procedure (Steps 1-5)
G01012746Courtesy of MAZDA MOTORS CORP.

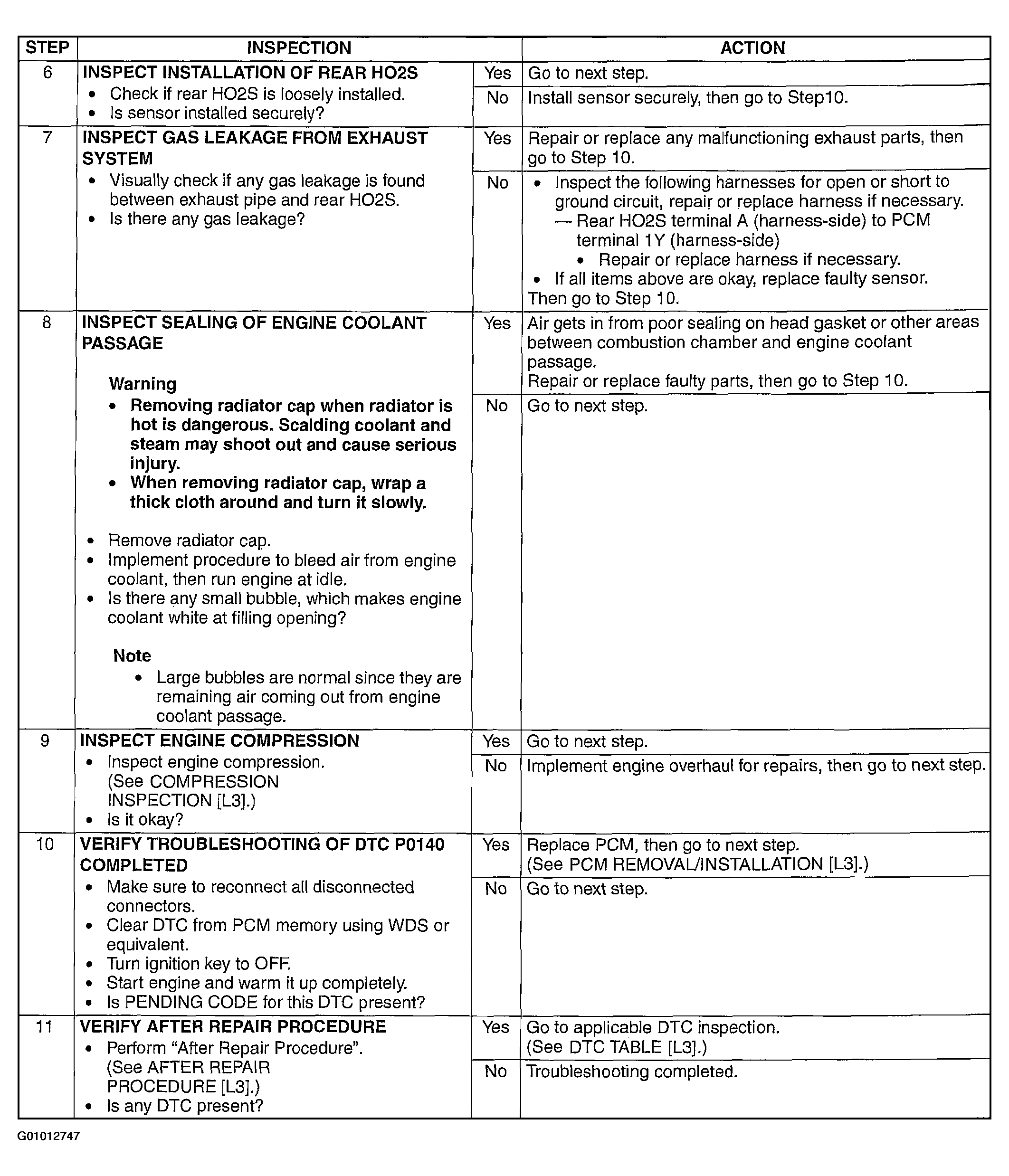

Fig 2: DTC P0140 - Diagnostic Procedure (Steps 6-11)
G01012747Courtesy of MAZDA MOTORS CORP.
