Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

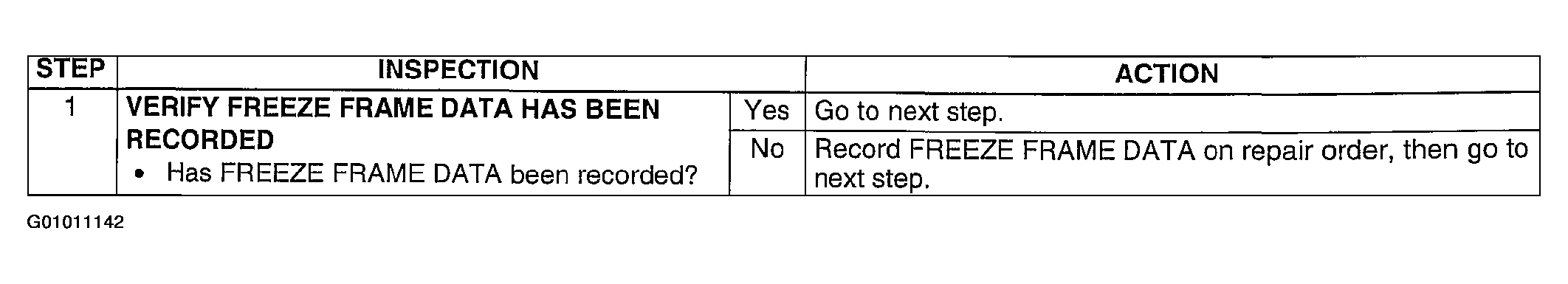

Fig 1: DTC P2101: Diagnostic Procedure Chart (Step 1)

Courtesy of MAZDA MOTORS CORP.

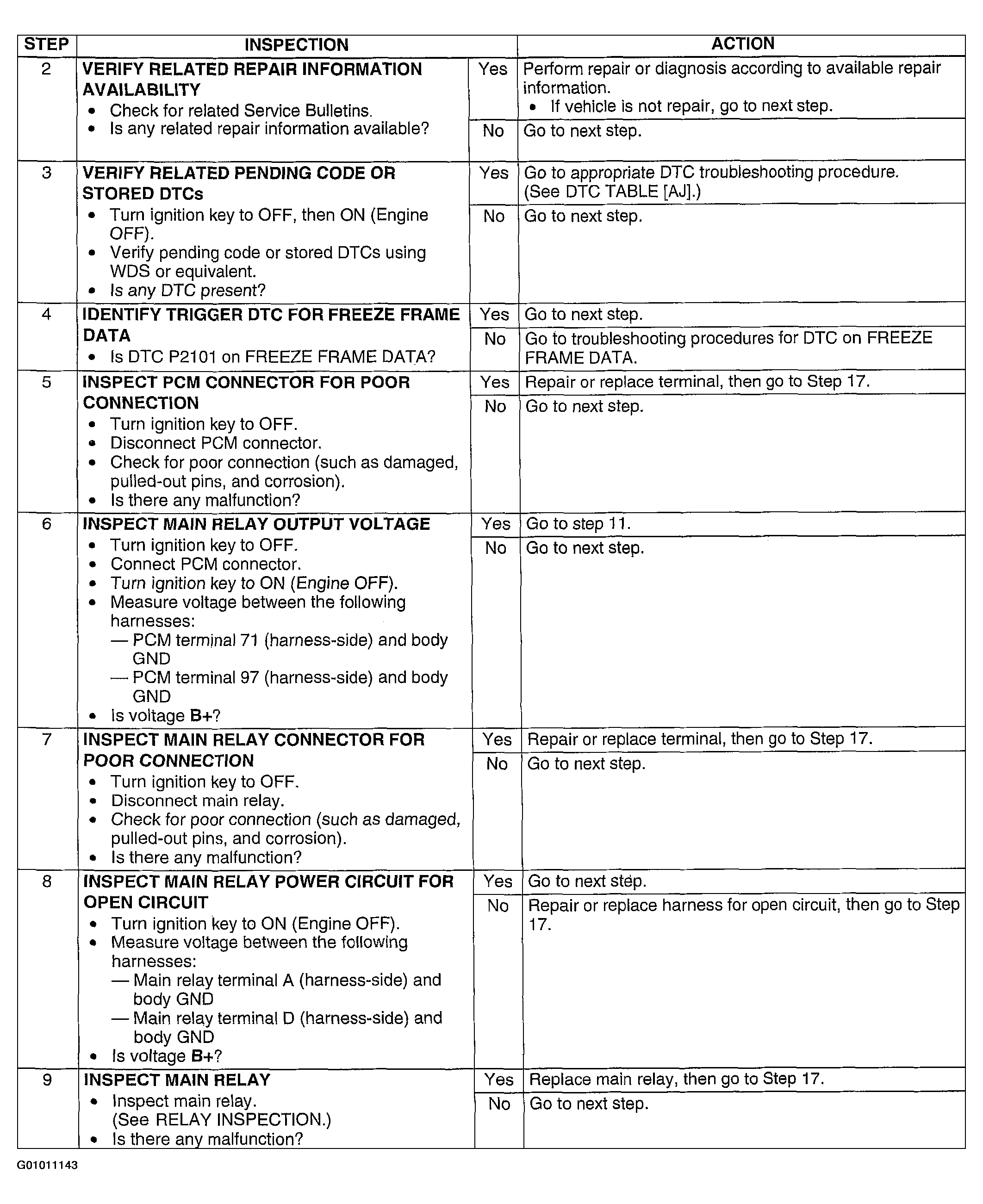

Fig 2: DTC P2101: Diagnostic Procedure Chart (Steps 2-9)

Courtesy of MAZDA MOTORS CORP.

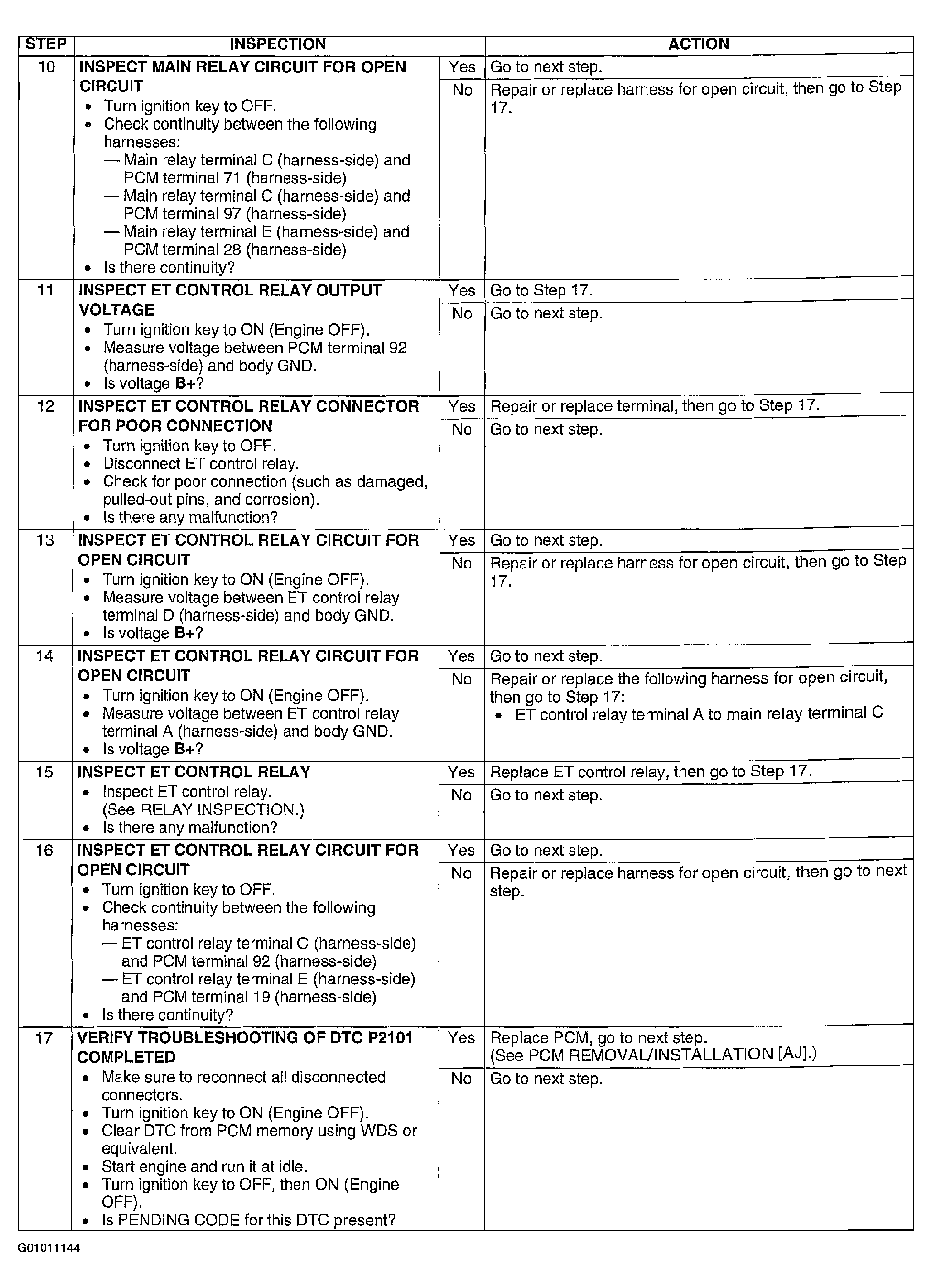

Fig 3: DTC P2101: Diagnostic Procedure Chart (Steps 10-17)

Courtesy of MAZDA MOTORS CORP.

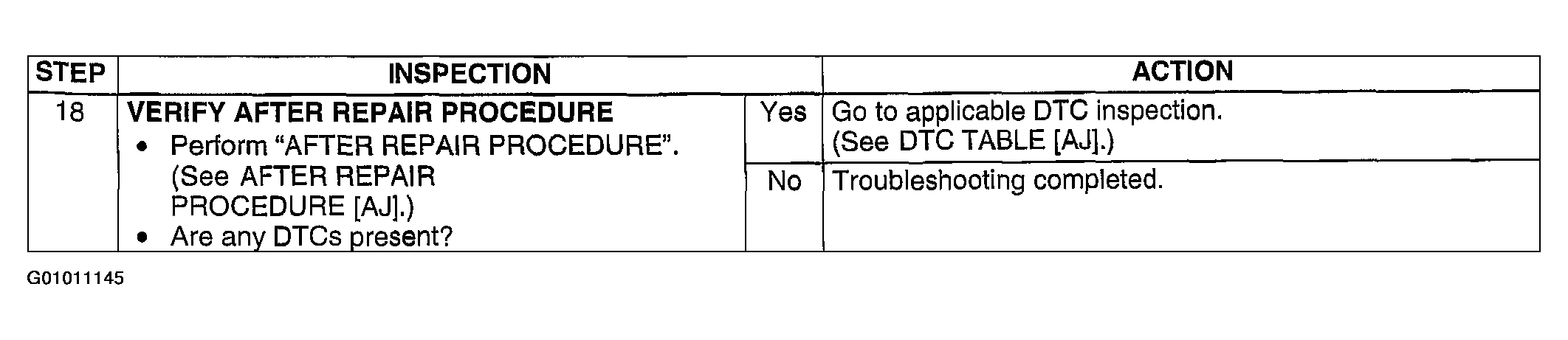

Fig 4: DTC P2101: Diagnostic Procedure Chart (Step 18)

Courtesy of MAZDA MOTORS CORP.
