Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

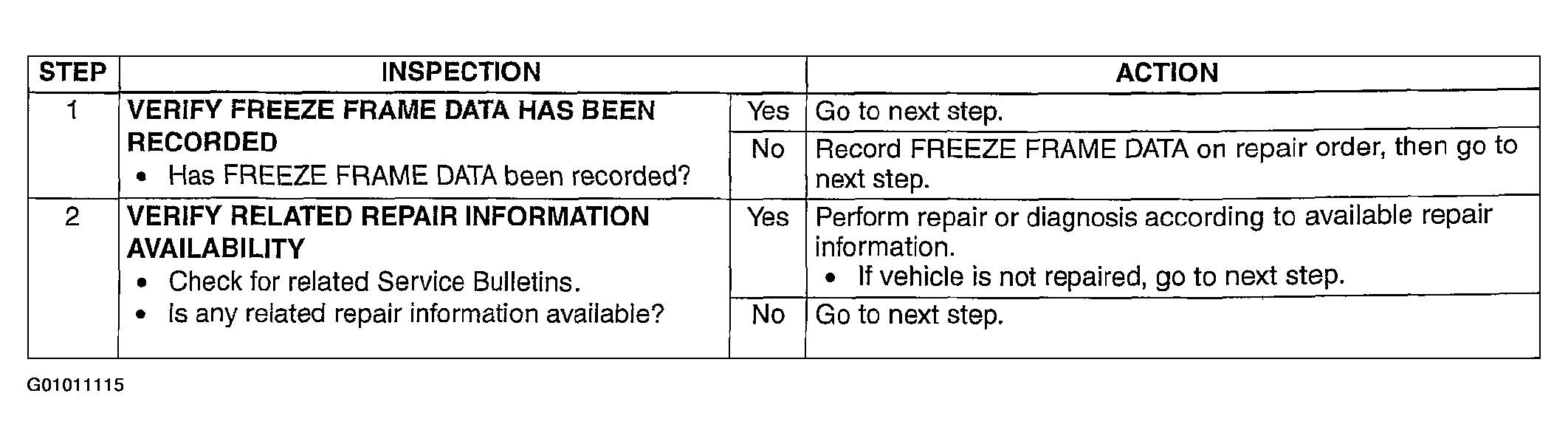

Fig 1: DTC P0850: Diagnostic Procedure Chart (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

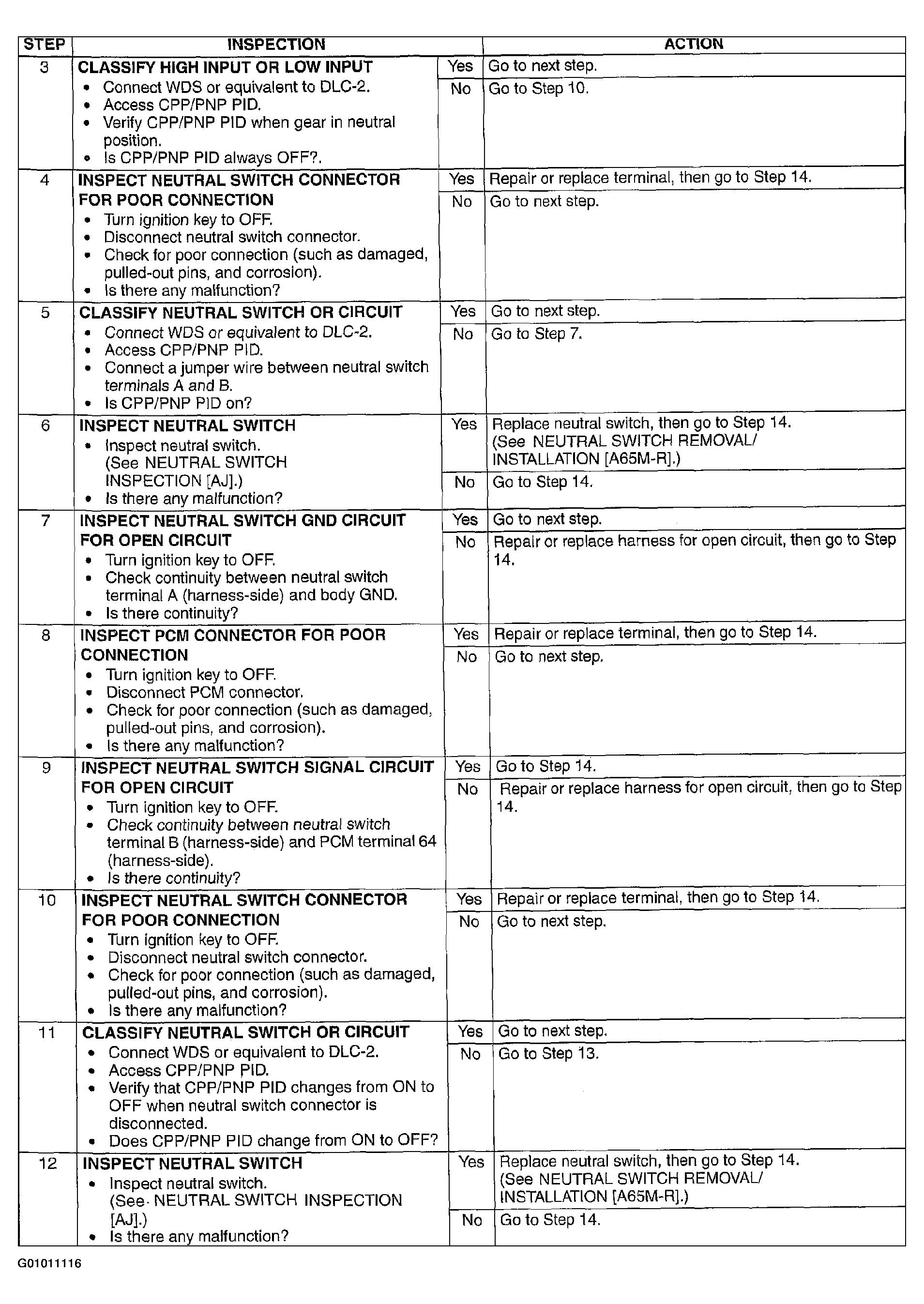

Fig 2: DTC P0850: Diagnostic Procedure Chart (Steps 3-12)

Courtesy of MAZDA MOTORS CORP.

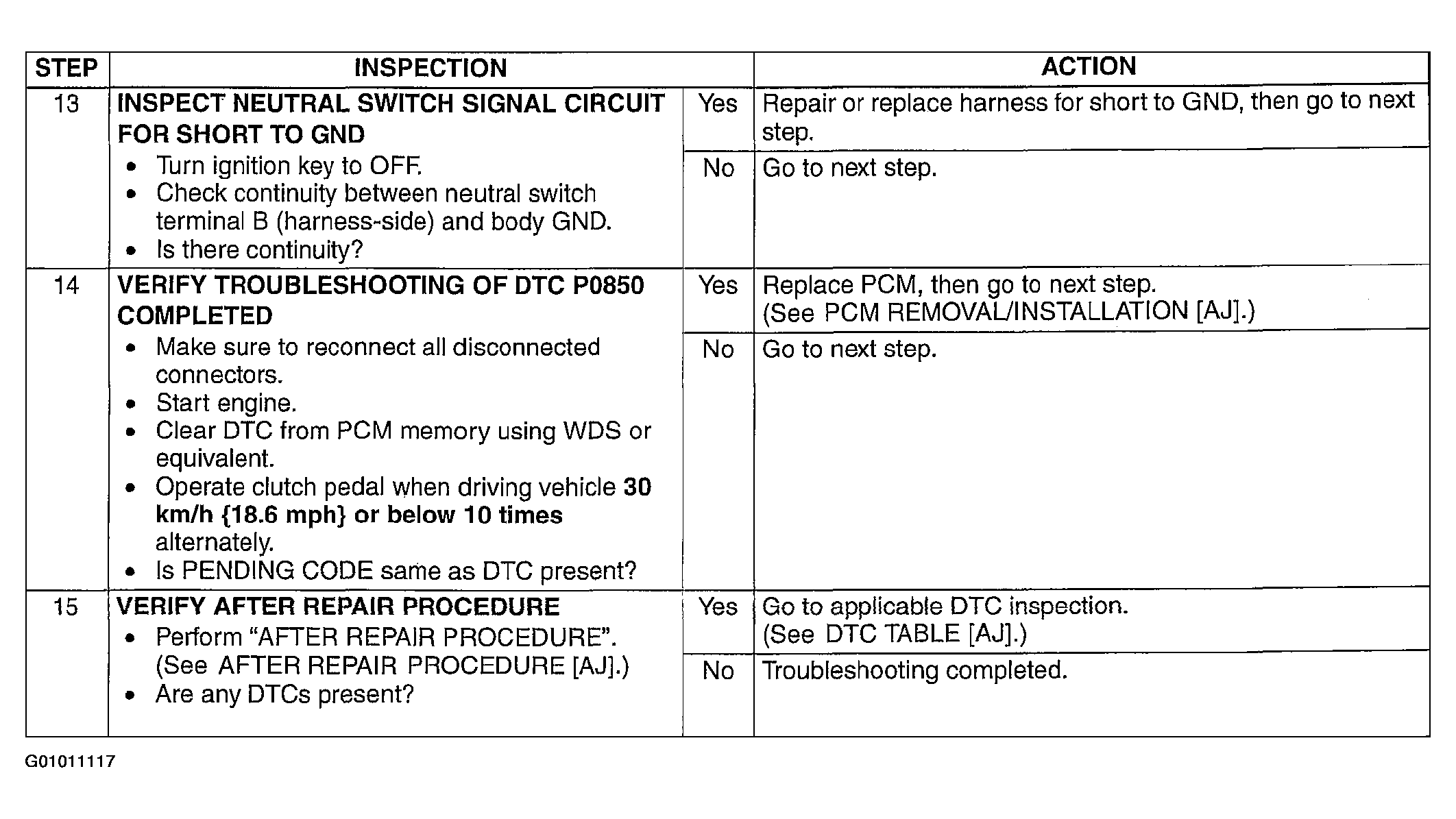

Fig 3: DTC P0850: Diagnostic Procedure Chart (Steps 13-15)

Courtesy of MAZDA MOTORS CORP.
