Diagnostic Procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

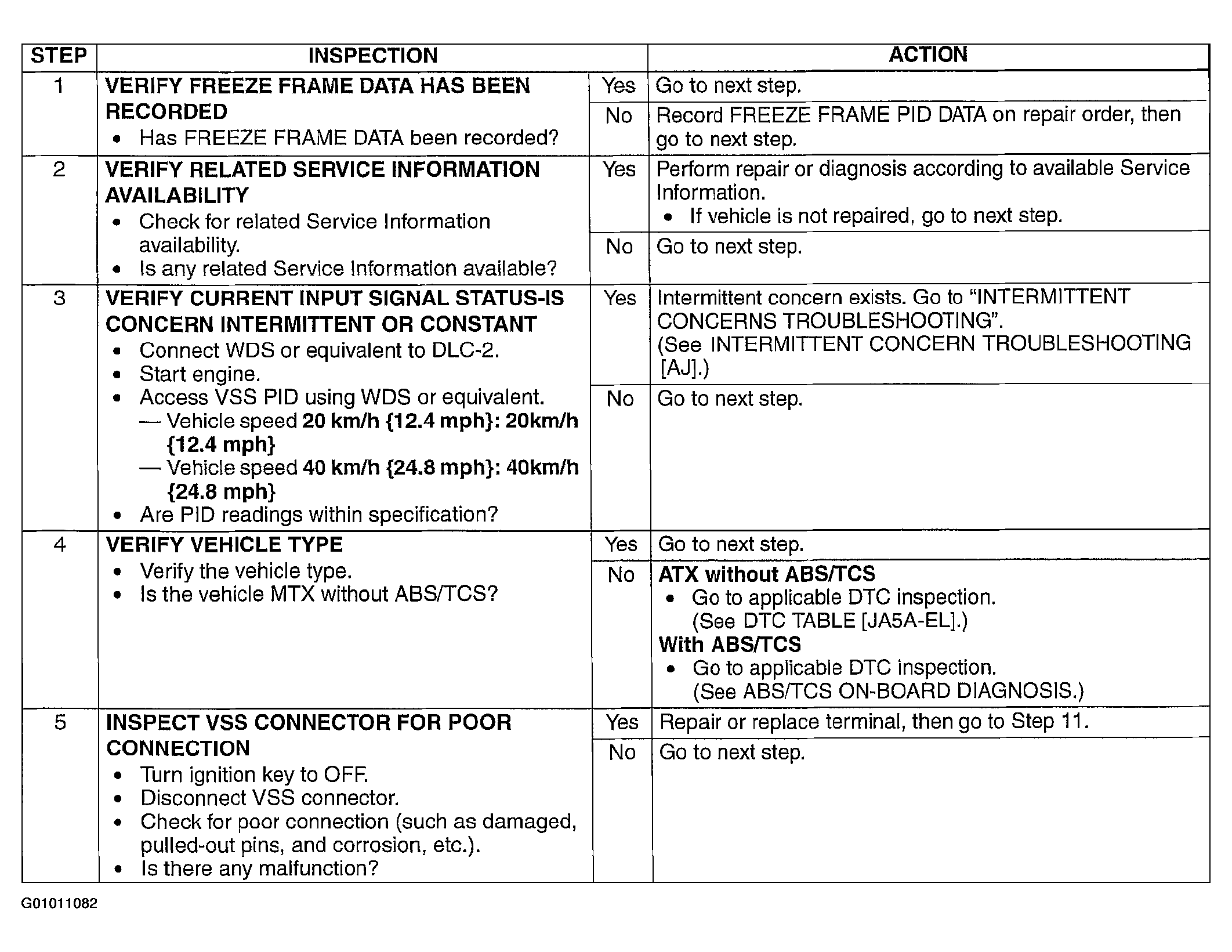

Fig 1: DTC P0500: Diagnostic Procedure Chart (Steps 1-5)
G01011082Courtesy of MAZDA MOTORS CORP.

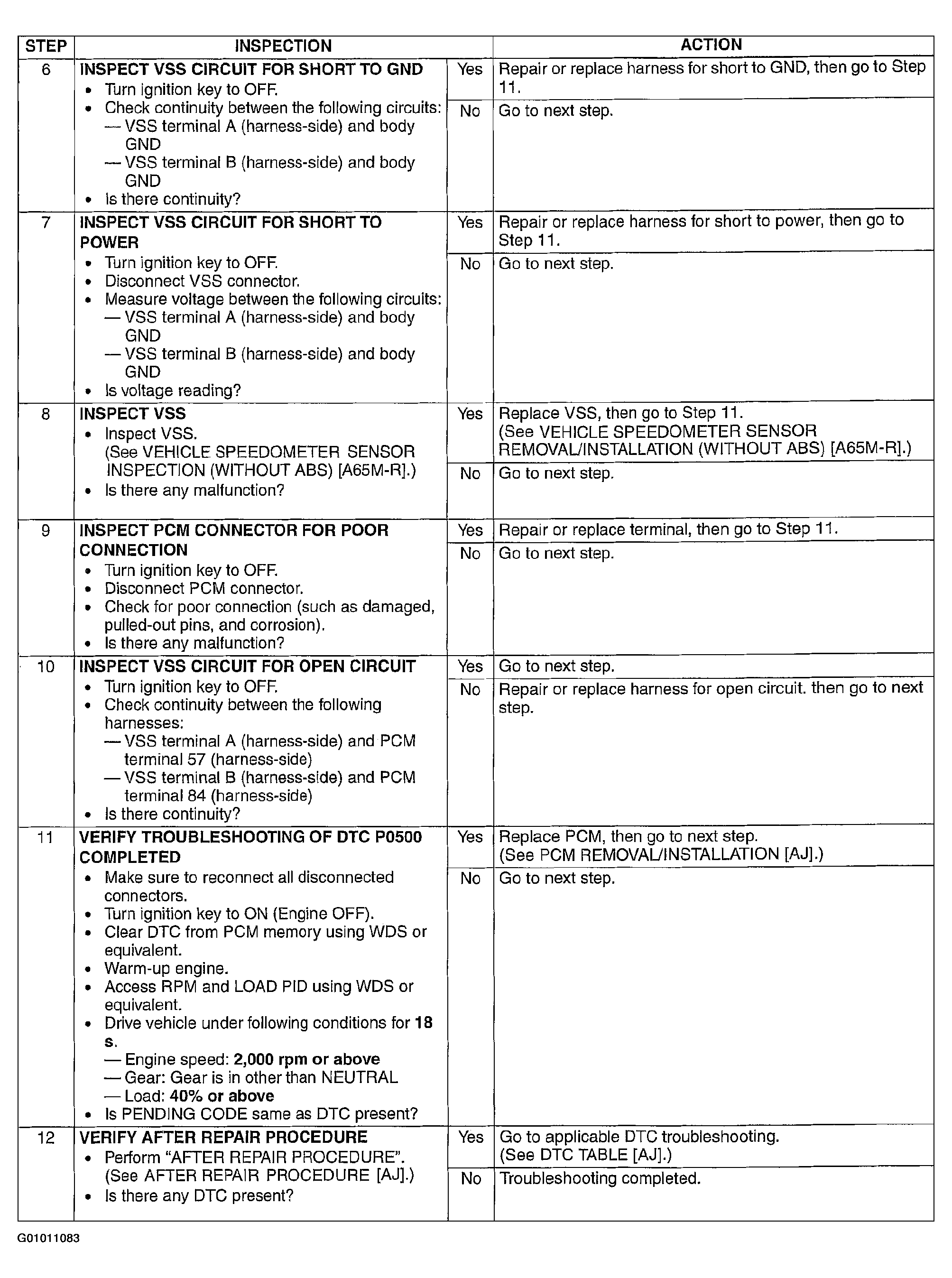

Fig 2: DTC P0500: Diagnostic Procedure Chart (Steps 6-12)
G01011083Courtesy of MAZDA MOTORS CORP.
