DTC P0140 & P0160: Ho2S (RF) Circuit No Activity Detected: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

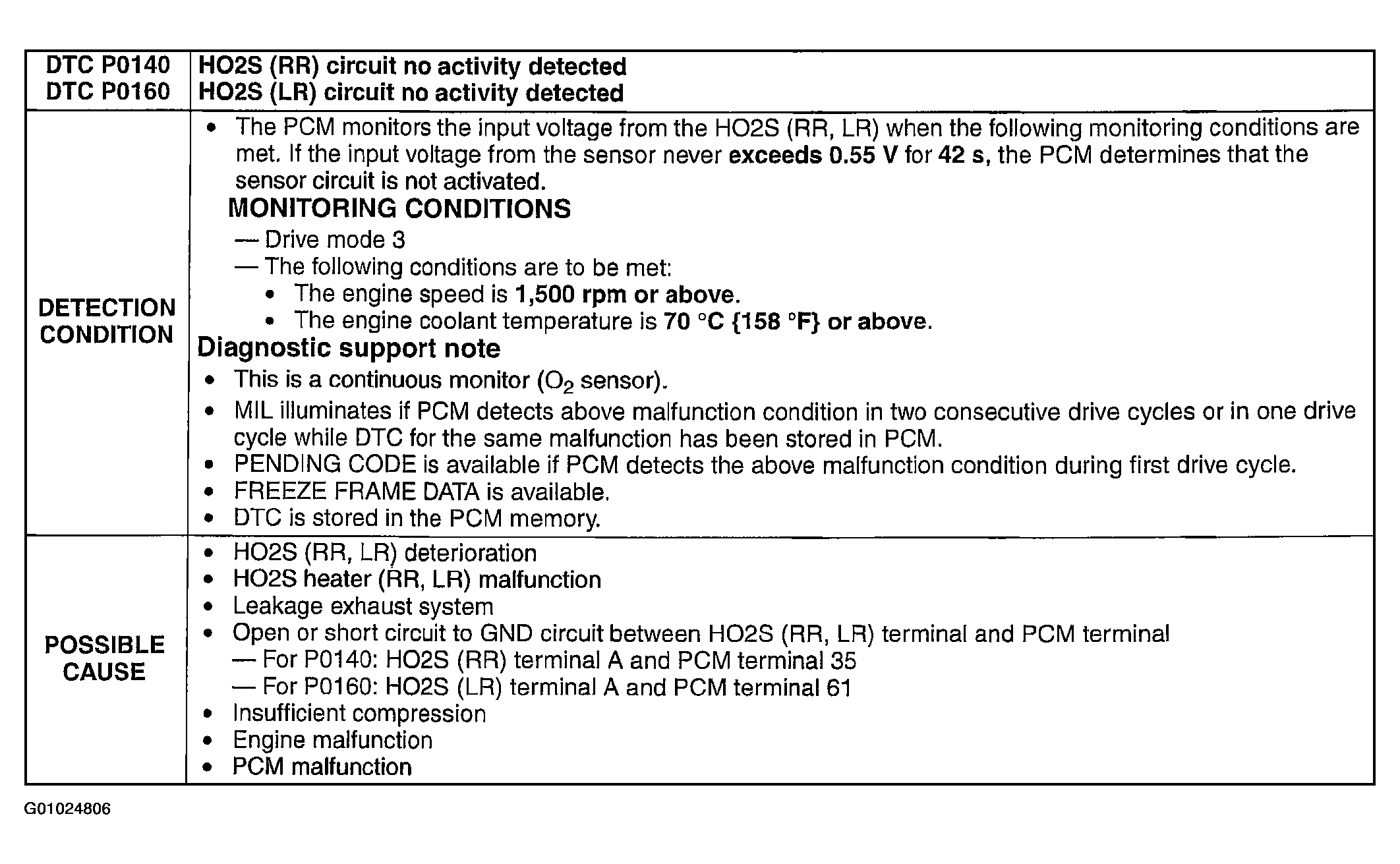

Fig 1: DTC P0140 & P0160: Detection Condition & Possible Causes Chart
G01024806Courtesy of MAZDA MOTORS CORP.
