DTC P0138 & P0158: Ho2S (RR) Circuit High Input: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

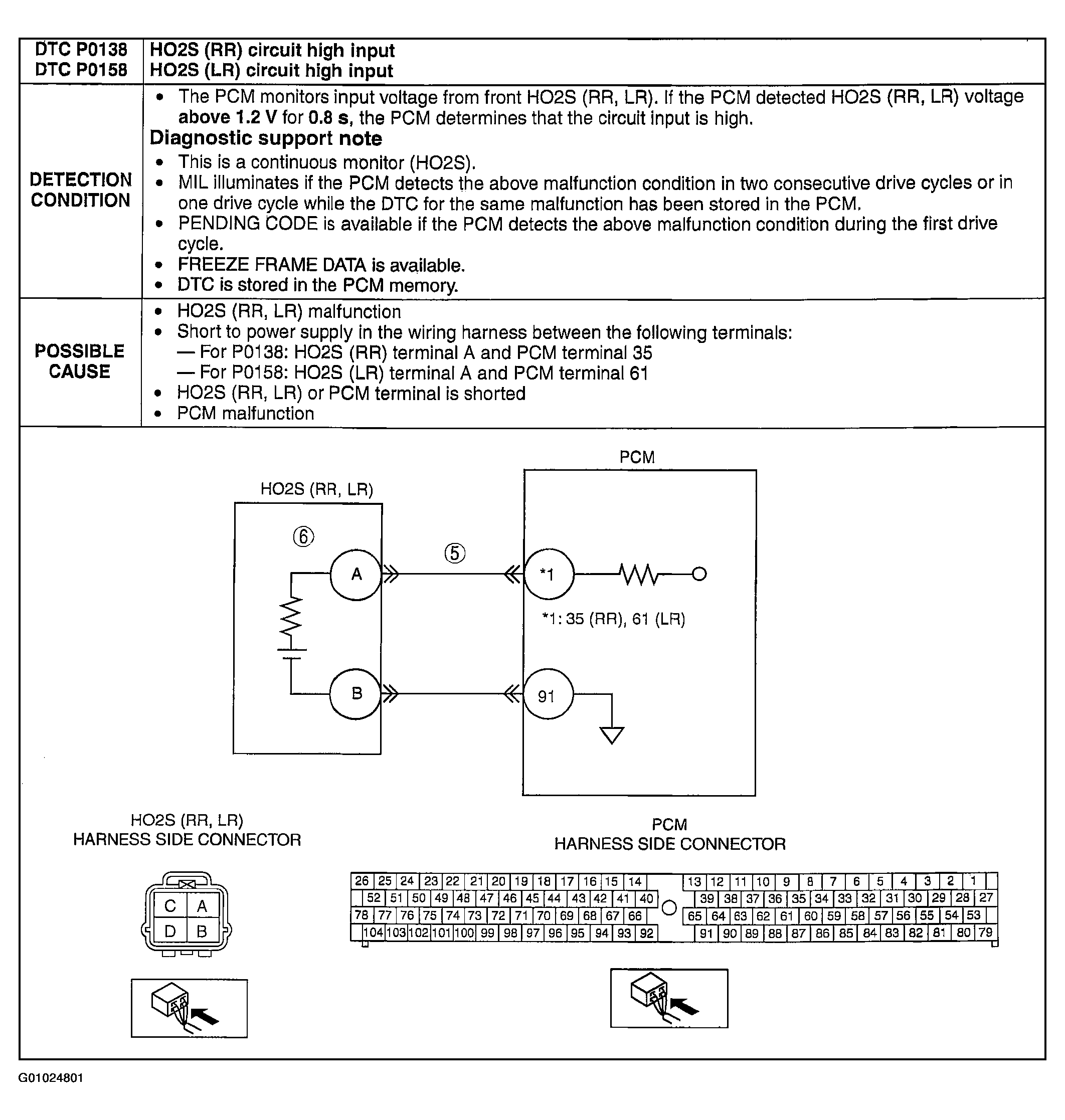

Fig 1: DTC P0138 & P0158: Detection Condition & Possible Causes Chart
G01024801Courtesy of MAZDA MOTORS CORP.
