Oil Pan: Installation

WARNING: This page is about a different car, the 2001 Mazda MPV and 2000 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Install NEW gasket. Tighten retaining bolts to specification. See TORQUE SPECIFICATIONS . Ensure sealing surfaces are clean. Apply bead of sealant to oil pan gasket at designated areas. See Fig 1.
CAUTION: Before installing oil pan bolts, ensure oil pan bolts and cylinder block bolt holes are free of sealant. Cylinder block may crack if bolts are not cleaned before installation.

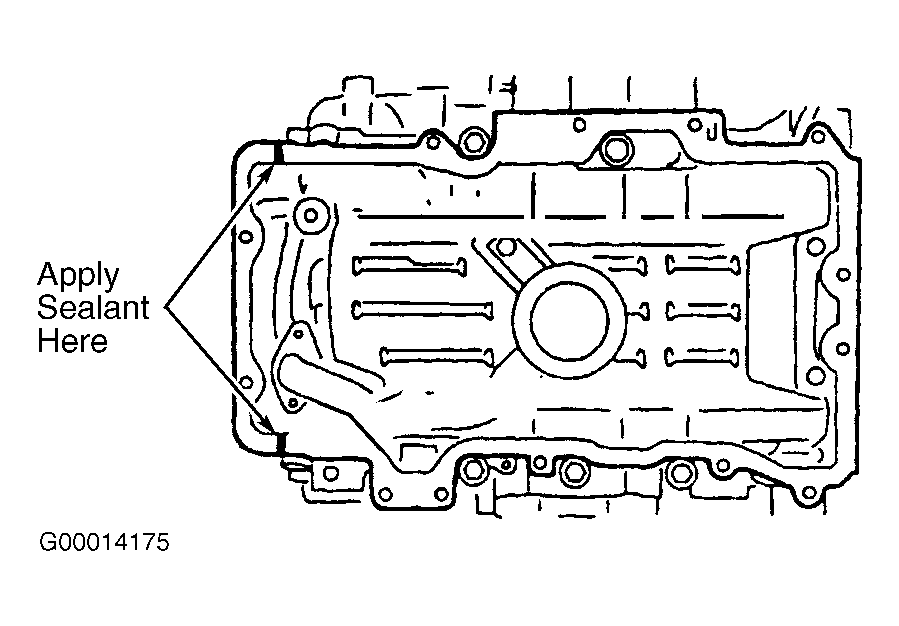

Fig 1: Locating Oil Pan Gasket Sealant Application Areas
Courtesy of MAZDA MOTORS CORP.

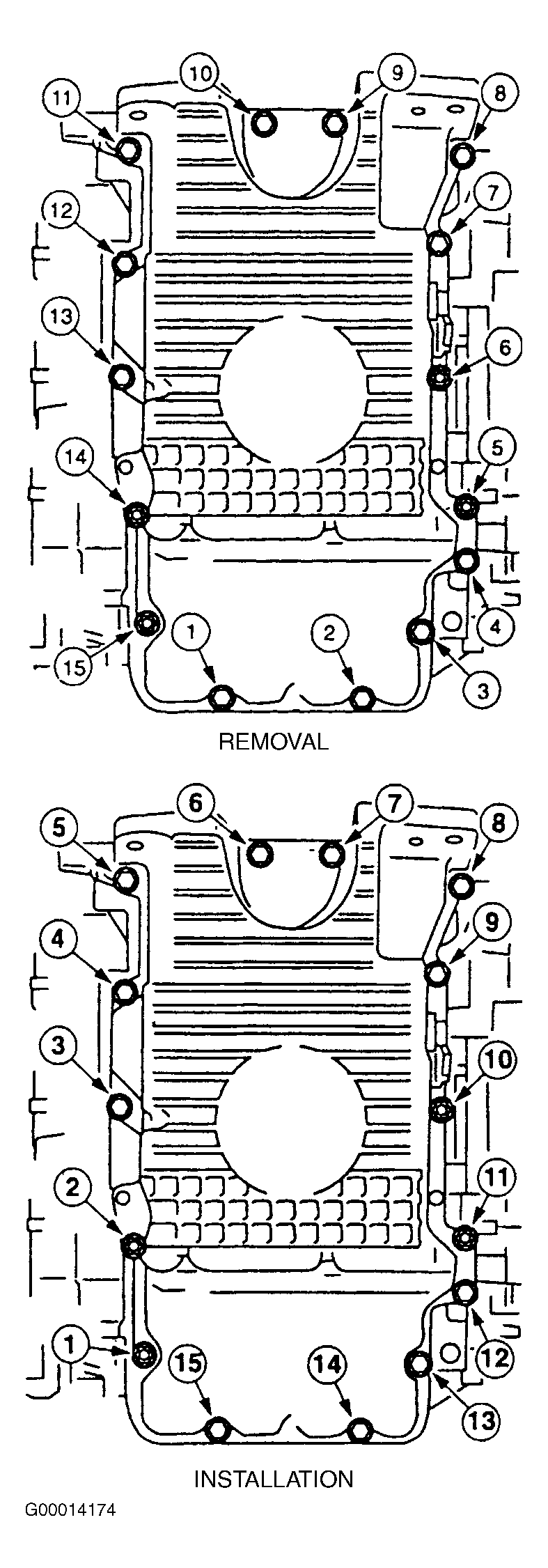

Install oil pan. Install bolts in sequence, and tighten to specification. See Figure. See TORQUE SPECIFICATIONS . To install remaining components, reverse removal procedure. Fill crankcase with oil.
