Cylinder Head: Removal

WARNING: This page is about a different car, the 2001 Mazda MPV and 2000 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release fuel pressure. See FUEL PRESSURE RELEASE . Drain cooling system. Disconnect negative battery cable. Remove water pump. See WATER PUMP . Remove spark plug wires. Remove valve cover bolts in sequence. See Fig 1. Remove timing chain. See TIMING CHAIN . Install No. 3 engine mount rubber and joint bracket. See TIMING CHAIN .
  2. Raise vehicle, and loosen engine hanger bolts. Remove engine hanger. Remove ventilation pipe. Remove water by-pass tube installation stud bolt. Disconnect water bypass tube from cylinder head.
  3. Remove camshaft. See CAMSHAFT . Remove rocker arm. See Fig 2.
    4. CAUTION: Loosen cylinder head bolts in proper sequence to prevent cylinder head warpage. See Fig 3.
  4. Loosen cylinder head bolts in sequence using several steps. See Fig 3. Remove cylinder head bolts and washers, cylinder head and gasket. Repeat steps  3 and  4 for both sides of cylinder. Remove left cylinder head gasket.
Fig 1: Cylinder Head Cover Bolt Removal Sequence
G00014164Courtesy of MAZDA MOTORS CORP.

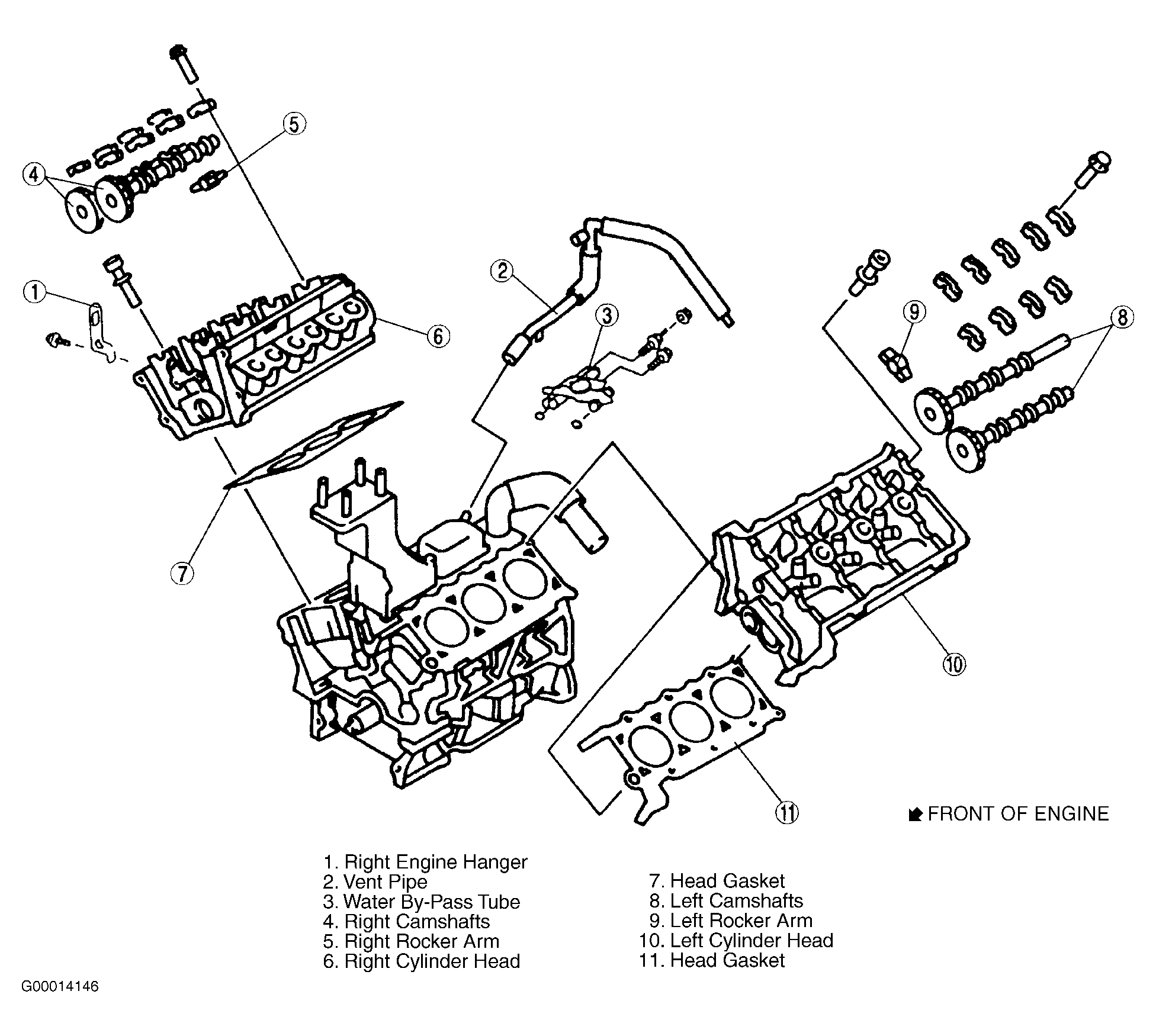

Fig 2: Exploded View Of Cylinder Head & Components
G00014146Courtesy of MAZDA MOTORS CORP.
Fig 3: Cylinder Head Bolt Removal & Installation Sequence
G00014148Courtesy of MAZDA MOTORS CORP.
