Torque Specifications

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS

Application Ft. Lbs. (N.m)
A/C Compressor Bracket 13-19.5 (17.6-26.5)
Camshaft Bearing Cap (1)
Step 1 (2)
Step 2 10.4-12.5 (14-17)
Camshaft Sprocket Lock Bolt 65.7-70 (89-95)
Clutch Cover Bolt 18.5-24.4 (25-33)
Connecting Rod Caps (3)
Crankshaft Main Bearing Caps (3)
Crankshaft Pulley Bolt
Step 1 70.9-76.7 (96-104)
Step 2 (4)
Cylinder Block Lower Blind Plug 13.3-16.2 (18-22)
Cylinder Head (5)
Step 1 (6)
Step 2 9.59-12.5 (13-17)
Step 3 32.5-33.9 (44-46)
Step 4 (4)
Step 5 (4)
Drive Belt Idler Pulley Bolt 15.2-21.6 (20-30)
Drive Plate (A/T) (7) 79.7-85.5 (108-116)
EGR Bolt 14.8-22.1 (20-30)
Engine Front Cover Bolt (8)
Bolts 1-18 (9)
Bolts 19-22 29.7-40.5 (40-55)
Exhaust Manifold Bracket Bolt 27.6-38.3 (37.3-52)
Exhaust Manifold Nut (10) 32-47 (43-63)
Flywheel Bolt (M/T) (7) 79.7-84.8 (108-115)
Fuel Distributor Bolt 15-22 (20-30)
Generator Bolt 29-41 (40-55)
Heated Oxygen Sensor 22-36 (29-49)
Knock Sensor 12-17.5 (16.2-23.8)
No. 1 Engine Mount Bolt
Bolts No. 1, 2 & 4 (11) 68.7-85.9 (93.1-116.6)
Bolt No. 3 63-85 (85.3-116.6)
No. 4 Engine Mount Bracket & Engine Mount Rubber (12)
Bolts & Nut No. 1, 2 & 3 43.3-58.5 (58.8-80.4)
Bolt Or Nut No. 4, 5 & 6 49.2-68.6 (66.6-93.1)
Oil Drain Plug 16.3-21.6 (22-30)
Oil Filter Cover (Cartridge Type) 22.2-25.8 (30-35)
Oil Pan Bolt (13) 15.2-21.6 (20-30)
Oil Pressure Switch 9-12 (12-16)
Oil Pump Sprocket Bolt 15.2-21.6 (20-30)
Power Steering Pump Bolt 14-18 (18.6-25.5)
Pre-silencer Pipe-To-TWC Nut 32-47 (43-60)
Power Steering Pressure Pipe Through Bolt 22-32 (7.9-10.7)
Resonance Chamber Bolt 15-22 (20-30)
Starter Bolt 29-37 (38-51)
Transaxle Mounting Bolt 28-38 (37-52)
Transaxle Mounting Bolt-To-Oil Pan 23.6-38.3 (32-52)
TWC-To-Exhaust Manifold Nut 29-37.6 (38-51)
Variable Valve Timing Actuator Bolt 50.9-55.3 (69-75)
Water Pump Pulley Bolt 15.2-21.6 (20-30)
INCH Lbs. (N.m)
A/C Hose-To-Compressor Bolt 60.8-86.7 (6.86-9.80)
Air Hose Clamps 23-30 (2.5-3.4)
Battery Clamp Bolt 70.8-97.3 (8-11)
Battery Clamp Nut 32.8-41.5 (3.7-4.7)
Battery Tray Nut 70.8-97.3 (8-11)
Chain Guide Bolt 70.8-101.7 (8-11.5)
Chain Tensioner Bolt 70.8-101.7 (8-11.5)
Crankshaft Position Sensor 48.6-66.4 (5.5-7.5)
Cylinder Head Cover Bolt (14) 70.9-92.9 (8-11.5)
Engine Coolant Temperature Sensor 7.38-10.32 (10-14)
Engine Front Cover Lower Blind Bolt 70.9-101.7 (8-11.5)
Exhaust Manifold Lower Insulator Bolt (15) 70-95 (7.8-10.8)
Exhaust Manifold Upper Insulator Bolt (16) 70-95 (7.8-10.8)
Generator "B" Terminal Nut 9.9-14.7 (8-10)
Generator Heat Insulator Bolt 18-47 (2-5.3)
Ignition Coil Bolt 44-61 (5-7)
Intake Manifold Bolt 70.9-101.7 (8-11.5)
MAF/IAT Sensor Screw 4.9-7.5 (0.55-0.85)
No. 3 Engine Mount Rubber & No. 3 Engine Joint Bracket (17) 43.4-58.5 (58.8-80.4)
No. 3 Engine Mount Bracket Stud Bolt 62-115 (7-13)
Oil Control Valve Bolt 70.9-101.7 (8-11.5)
Oil Filter Cover Drain Plug 79.6-88.4 (9-10)
Oil Level Dipstick Tube 70.9-101.7 (8-11.5)
Oil Pump Chain Guide Bolt 70.8-101.7 (8-11.5)
Oil Pump Chain Tensioner Bolt 70.8-101.7 (8-11.5)
Oil Pump Bolt (18)
Step 1 70.9-101.7 (8-11.5)
Step 2 177-221 (20-25)
Oil Strainer Bolt 70.9-101.7 (8-11.5)
Rear Oil Seal Bolt (19) 70.9-101.7 (8-11.5)
Spark Plug 88.5-101.2 (10-14)
Starter Terminal "B" Cable Nut 87-104 (9.8-11.7)
Tensioner Arm Bolt 70.8-101.7 (8-11.5)
Thermostat/Housing Bolt 70.8-101.7 (8-11.5)
Throttle Body Bolt 70.8-101.7 (8-11.5)
Variable Intake-Air Solenoid Valve Screw 45-61 (5-7)
Variable Tumble Solenoid Valve Screw 45-61 (5-7)
Water Pump Bolt 70.8-101.7 (8-11.5)
(1) Tighten in sequence. See Fig 1.
(2) Tighten to 44.3-79.6 INCH Lbs. (5-9 N.m).
(3) Information not provided by manufacturer.
(4) Plus an additional 87-93 degrees.
(5) Tighten in sequence. See Fig 2.
(6) Tighten to 44.3 INCH Lbs. (5 N.m).
(7) Tighten in sequence. See Fig 3.
(8) Tighten in sequence. See Fig 4.
(9) Tighten to 70.9-101.7 INCH Lbs.
(10) Tighten in sequence. See Fig 5
(11) Tighten in sequence. See Fig 6.
(12) Tighten in sequence. See Fig 7.
(13) Tighten in sequence. See Fig 8.
(14) Tighten in sequence. See Fig 9.
(15) Tighten in sequence. See Fig 10.
(16) Tighten in sequence. See Fig 11.
(17) Tighten in sequence. See Fig 12.
(18) Tighten in sequence. See Fig 13.
(19) Tighten in sequence. See Fig 14.

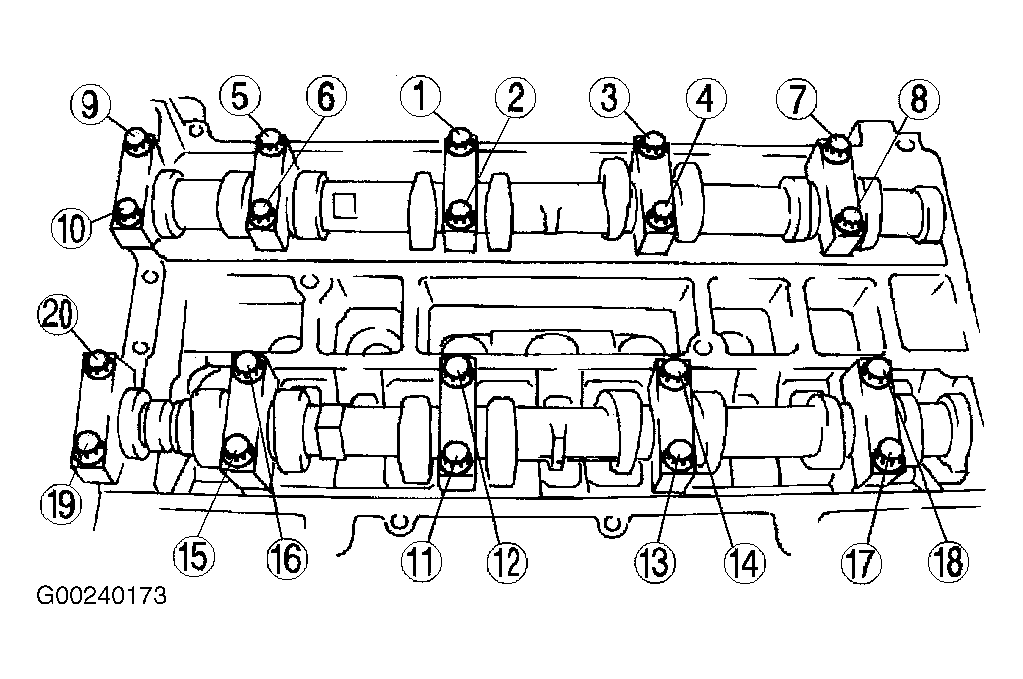

Fig 1: Camshaft Bearing Cap Bolt Tightening Sequence
G00240173Courtesy of MAZDA MOTORS CORP.

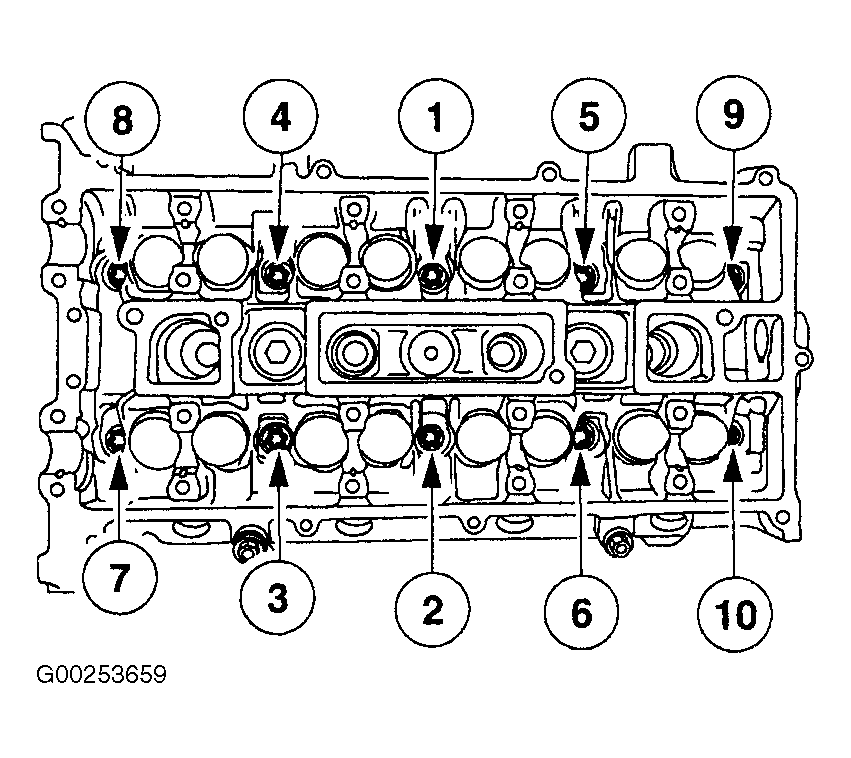

Fig 2: Cylinder Head Bolt Tightening Sequence
G00253659Courtesy of MAZDA MOTORS CORP.
Fig 3: Drive Plate/Flywheel Tightening Sequence
G00356227Courtesy of MAZDA MOTORS CORP.

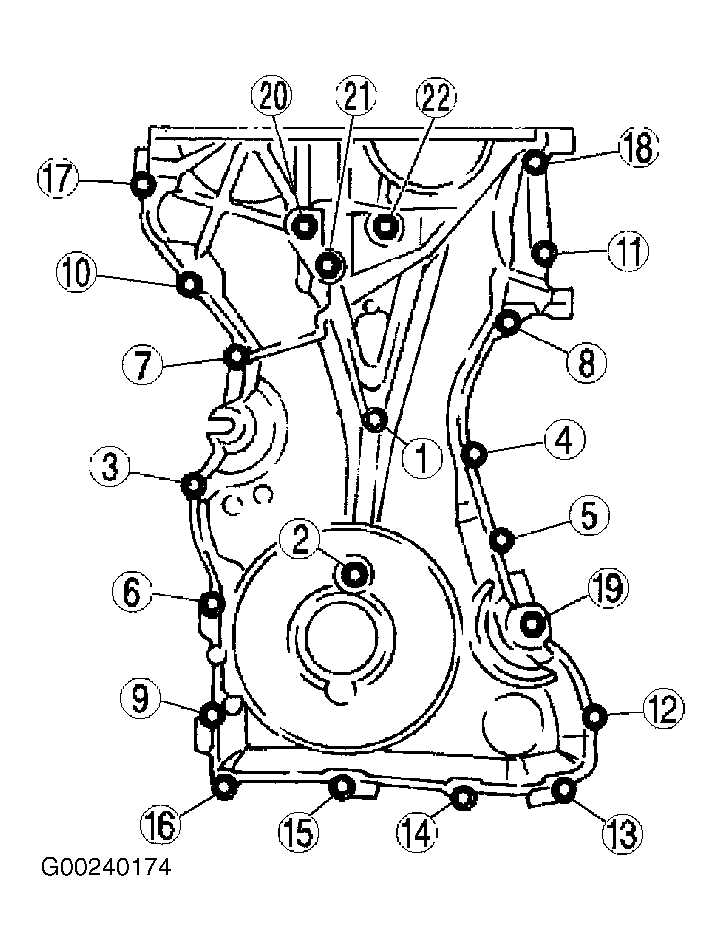

Fig 4: Front Timing Cover Bolt Tightening Sequence
G00240174Courtesy of MAZDA MOTORS CORP.

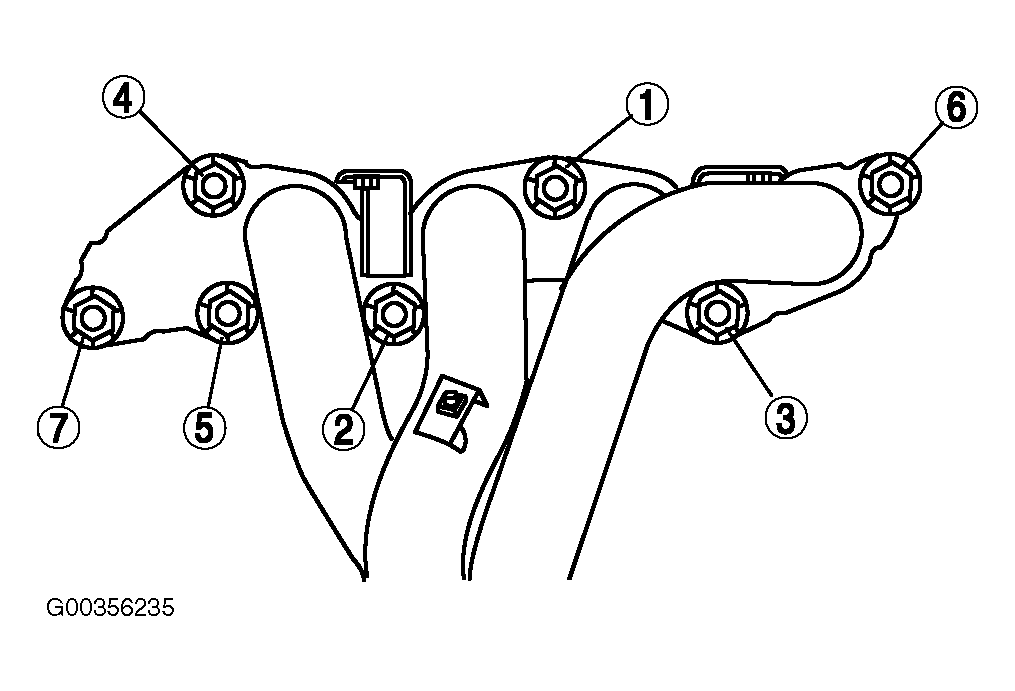

Fig 5: Exhaust Manifold Nut Tightening Sequence
G00356235Courtesy of MAZDA MOTORS CORP.

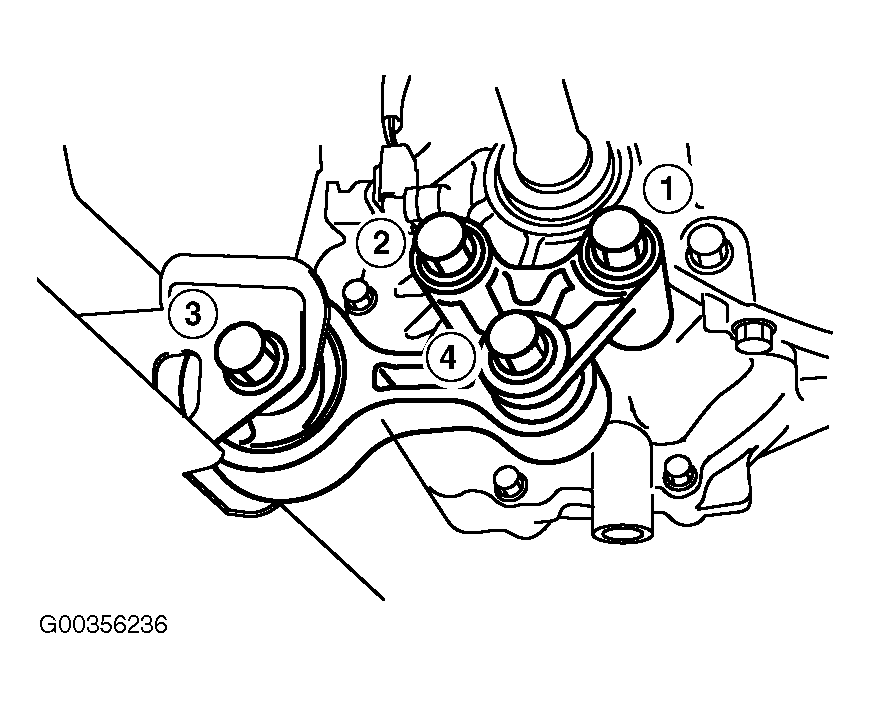

Fig 6: Engine Mount No. 1 Bolt Tightening Sequence
G00356236Courtesy of MAZDA MOTORS CORP.

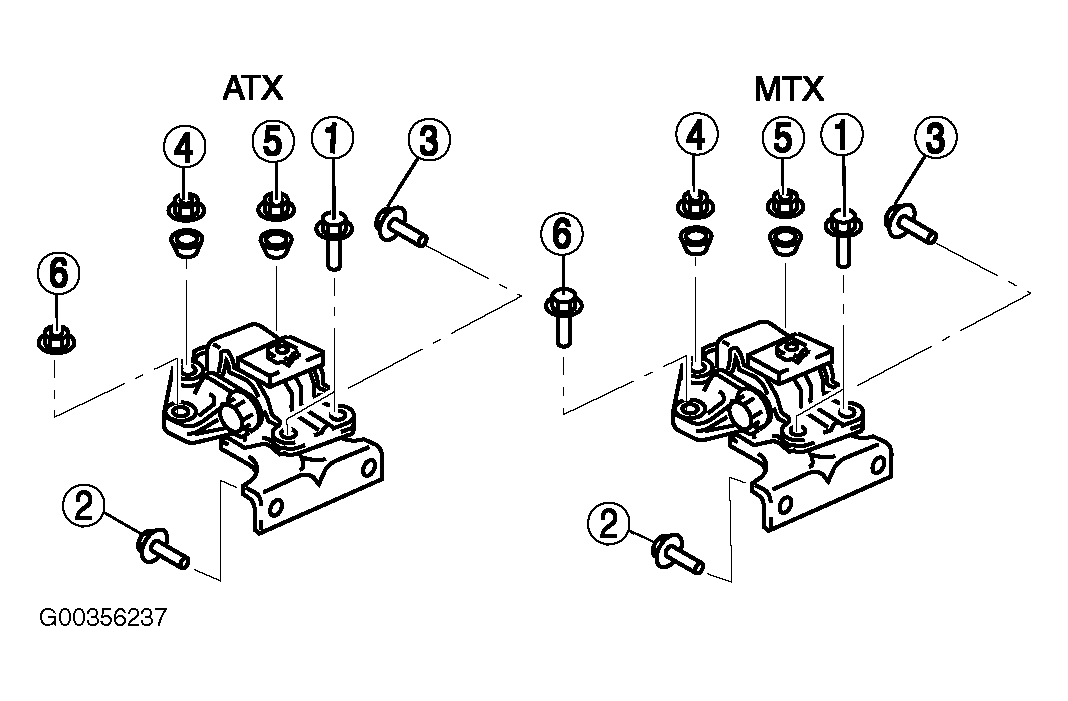

Fig 7: Tightening Sequence & Identifying No. 4 Motor Mount Bolts & Nuts
G00356237Courtesy of MAZDA MOTORS CORP.

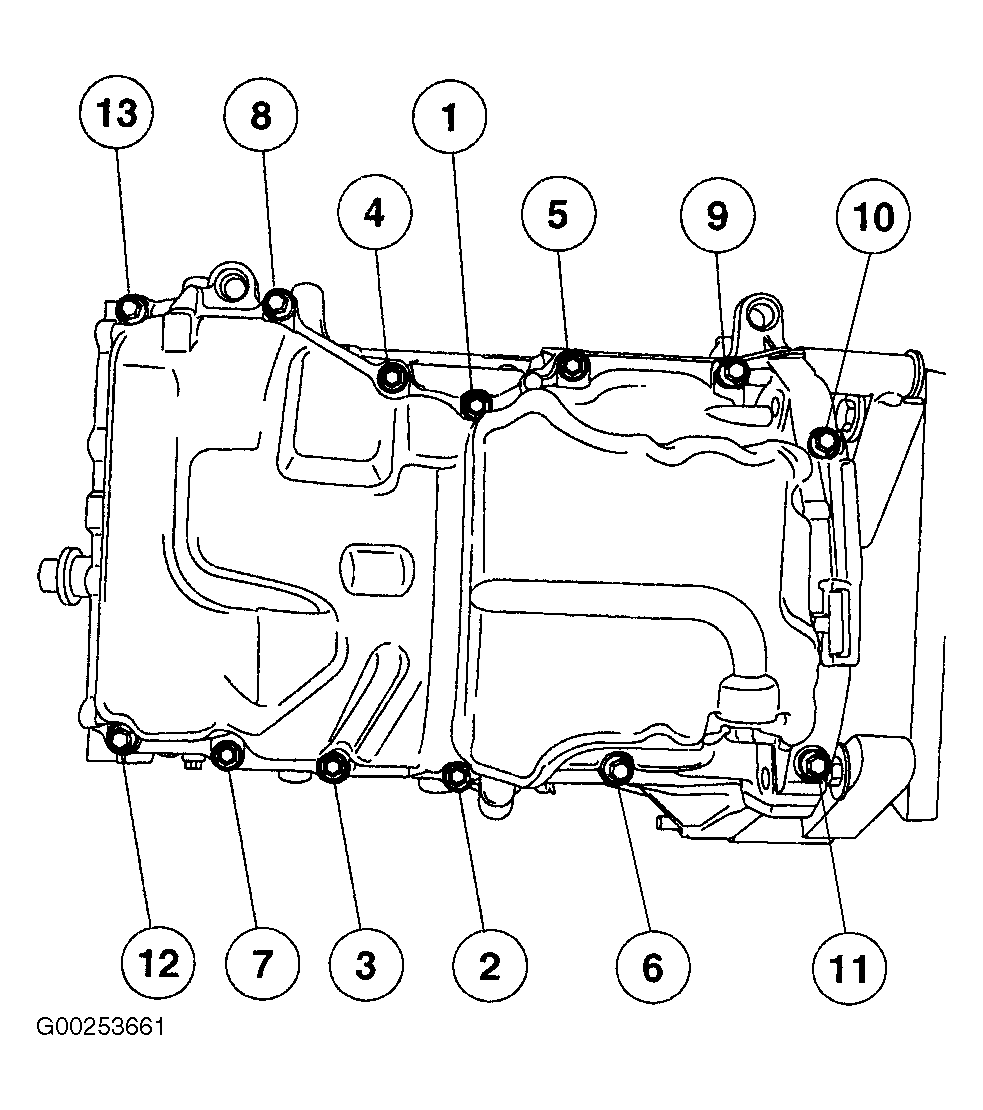

Fig 8: Oil Pan Bolt Tightening Sequence
G00253661Courtesy of MAZDA MOTORS CORP.

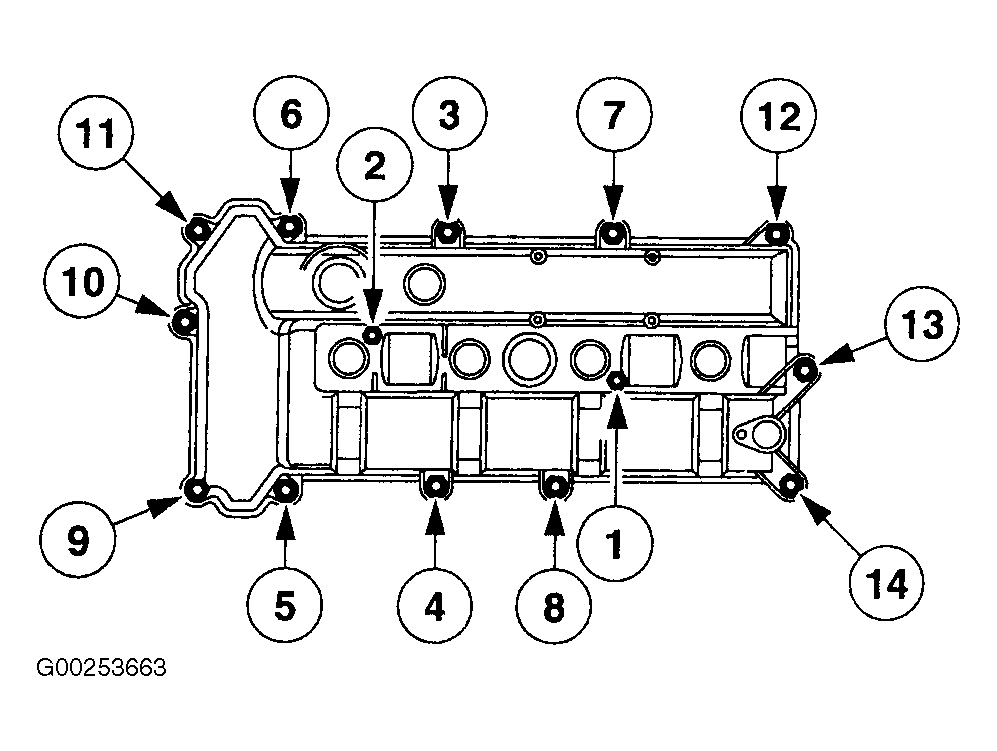

Fig 9: Cylinder Head Cover Bolt Tightening Sequence
G00253663Courtesy of MAZDA MOTORS CORP.
Fig 10: Exhaust Manifold Lower Insulator Bolt Tightening Sequence
G00356238Courtesy of MAZDA MOTORS CORP.

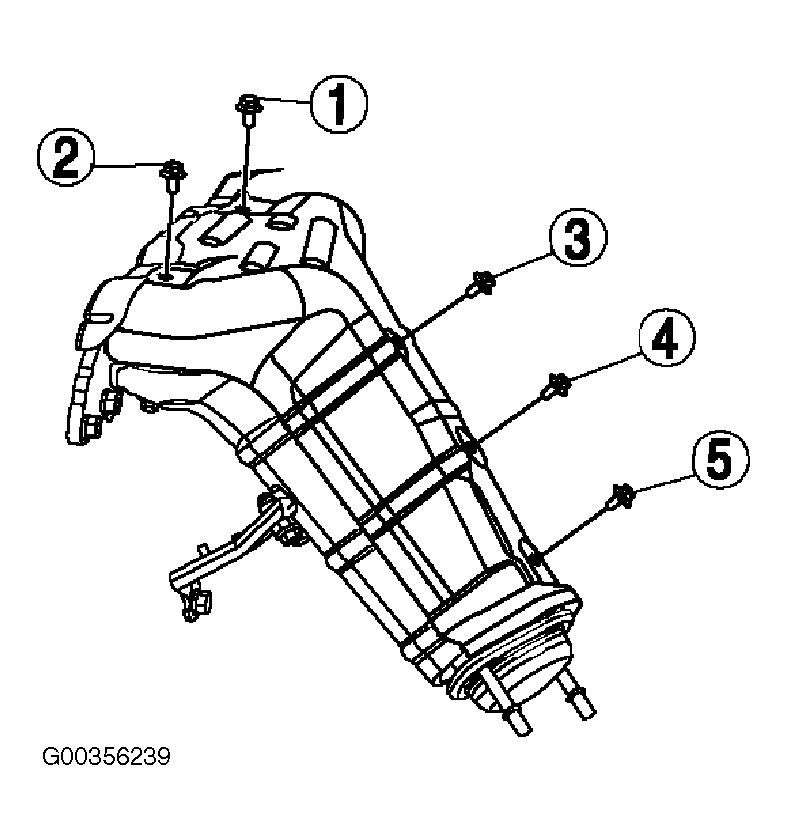

Fig 11: Exhaust Manifold Upper Insulator Bolt Tightening Sequence
G00356239Courtesy of MAZDA MOTORS CORP.
Fig 12: Engine Mount No. 3 Joint Bracket Bolt Tightening Sequence
G00356241Courtesy of MAZDA MOTORS CORP.
Fig 13: Oil Pump Bolt Tightening Sequence
G00356233Courtesy of MAZDA MOTORS CORP.

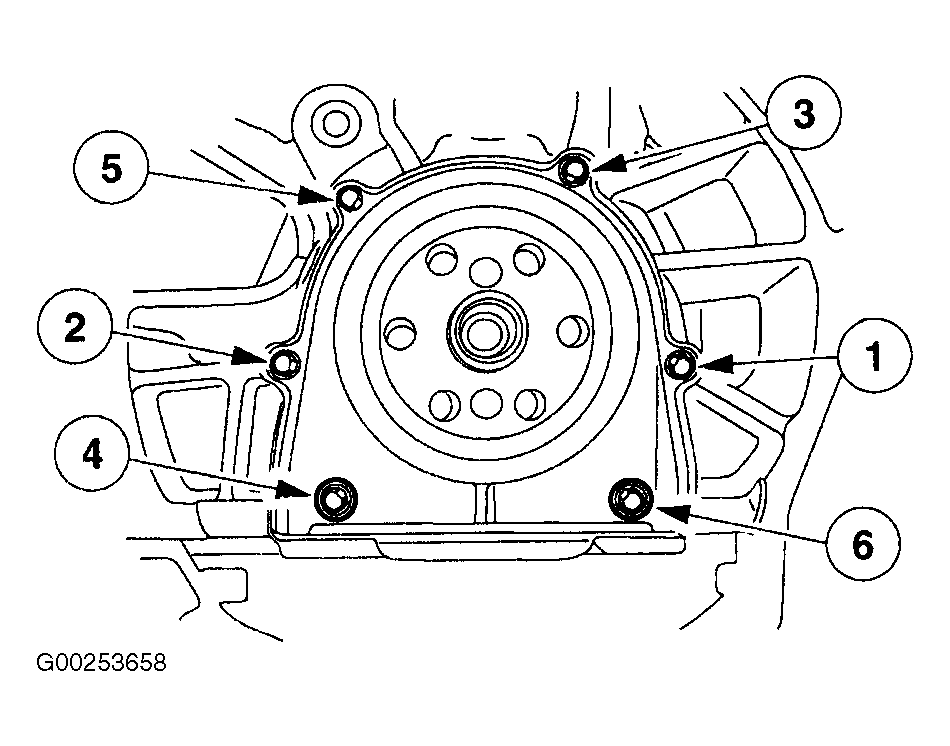

Fig 14: Crankshaft Rear Main Oil Seal Bolt Tightening Sequence
G00253658Courtesy of MAZDA MOTORS CORP.
