Rear Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flywheel. (MTX) (See CLUTCH UNIT REMOVAL/INSTALLATION .)
  2. Remove the drive plate. (ATX) (See DRIVE PLATE REMOVAL/INSTALLATION [FN4A-EL] .)
  3. Remove in the order indicated in the figure.
  4. Install in the reverse order of removal.

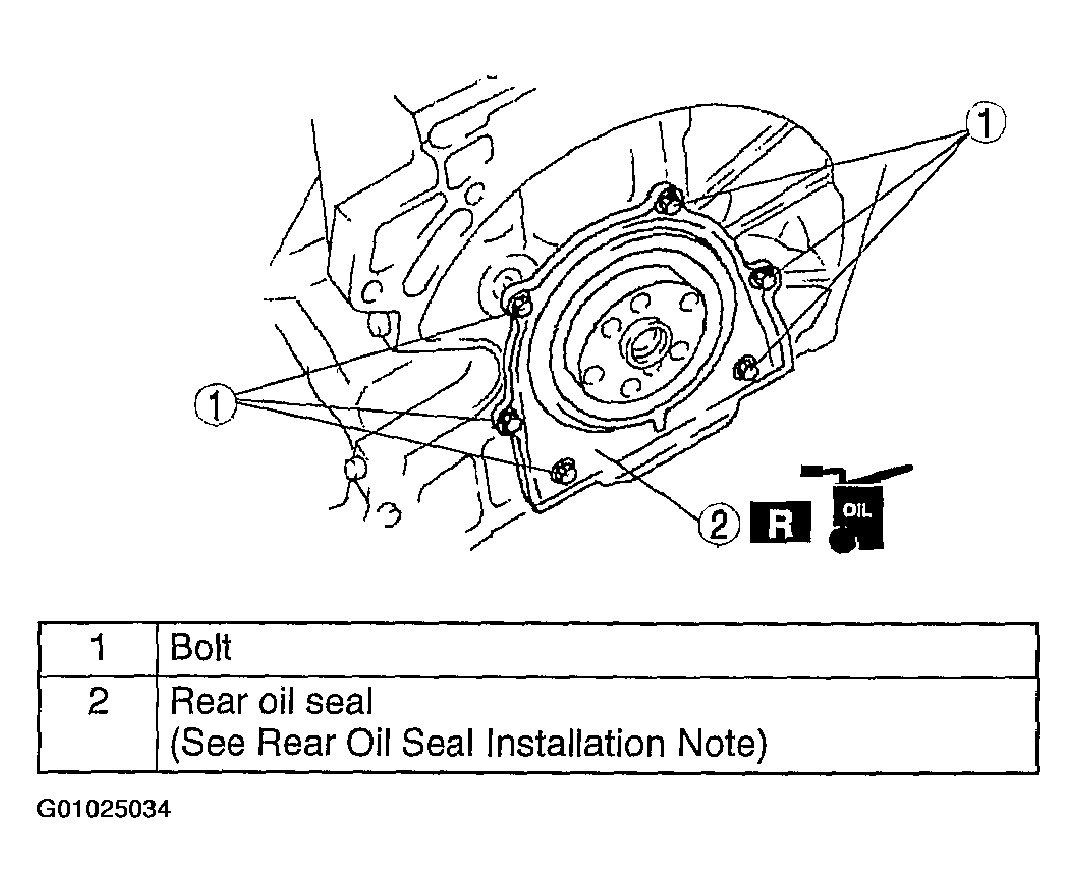

Fig 1: Installation Order Of Rear Oil Seal
G01025034Courtesy of MAZDA MOTORS CORP.
