No. 3 Engine Joint Bracket Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Tighten the No. 3 engine mount bracket stud bolt.
Tightening torque

7.0-13 N.m {71.4-132.5 kgf.cm, 62.0-115.0 in.lbf}

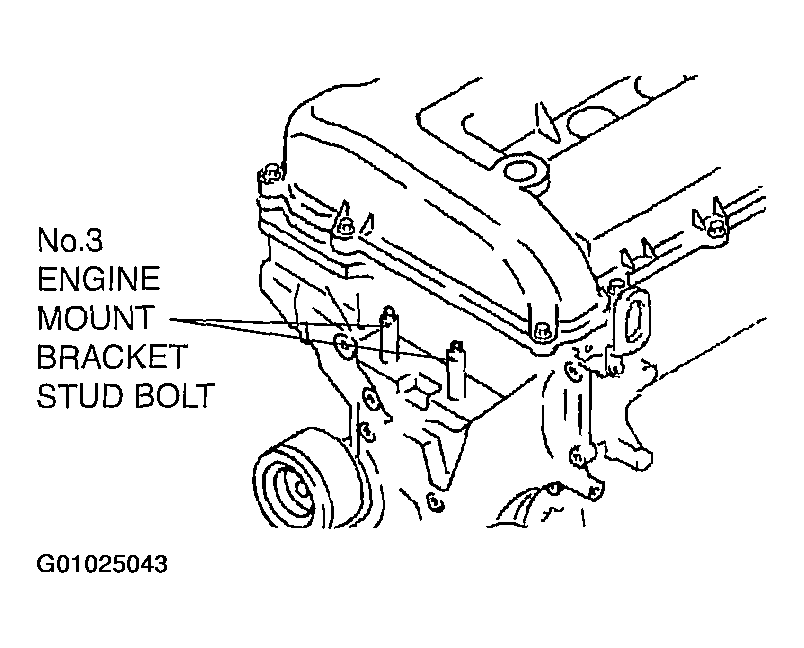

Fig 1: Locating No. 3 Engine Mount Bracket Stud Bolt
Courtesy of MAZDA MOTORS CORP.
Tighten the No. 3 engine joint bracket bolt and nut in the order as shown.

Fig 2: Tightening Sequence Of No. 3 Engine Joint Bracket Bolt & Nut
Courtesy of MAZDA MOTORS CORP.

Tightening torque

74.5-104.9 N.m {7.6-10.6 kgf.m, 55.0-76.6 ft.lbf}
