No. 1 Engine Mount Bracket Installation Note
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

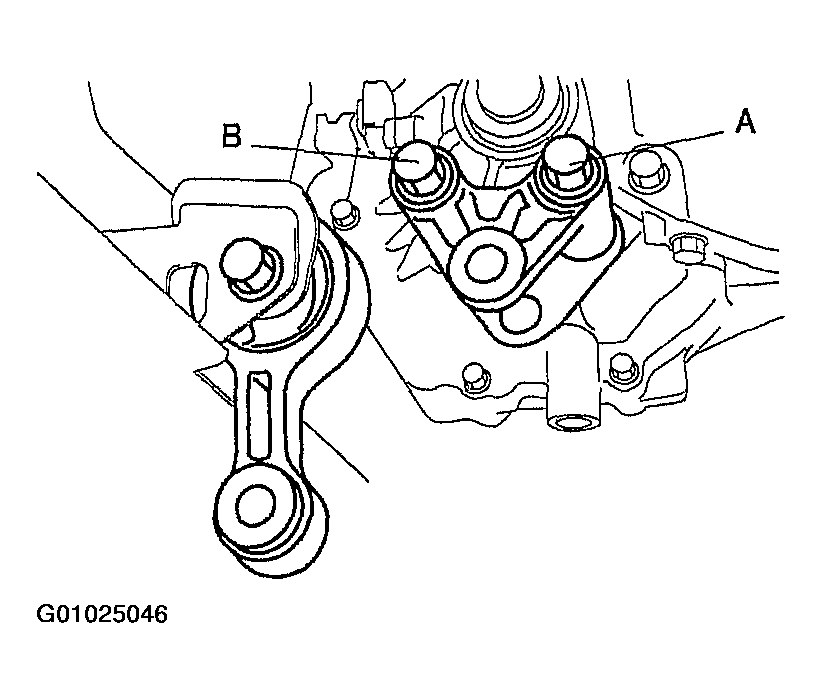

- Tighten No.1 engine mount bracket bolt A.
Tightening torque
93.1-116.6 N.m {9.5-11.8 kgf.m, 68.7-85.9 ft.lbf}
- Tighten No.1 engine mount bracket bolt B.
Tightening torque
93.1-116.6 N.m {9.5-11.8 kgf.m, 68.7-85.9 ft.lbf}
Courtesy of MAZDA MOTORS CORP.
