Drive Belt Replacement

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the splash shield (RH).
  2. Turn the center of the tensioner pulley clockwise to release tension to the drive belt.

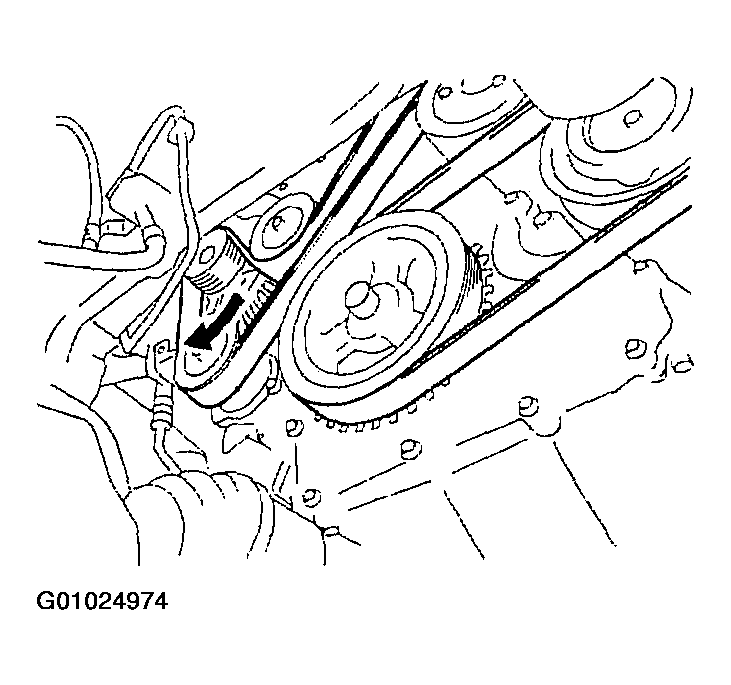

    Fig 1: Releasing Tension From Drive Belt Tensioner
    G01024974Courtesy of MAZDA MOTORS CORP.
  3. Remove the drive belt.
  4. Reinstall the drive belt or install a new drive belt.
  5. Verify that the drive belt auto tensioner indicator mark does not exceed the limit. (See DRIVE BELT INSPECTION .)
    • If it exceeds the limit, replace the drive belt.
  6. Install the splash shield (RH).
