Water Pump Drive Belt Pulley Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water pump pulley using the SST.

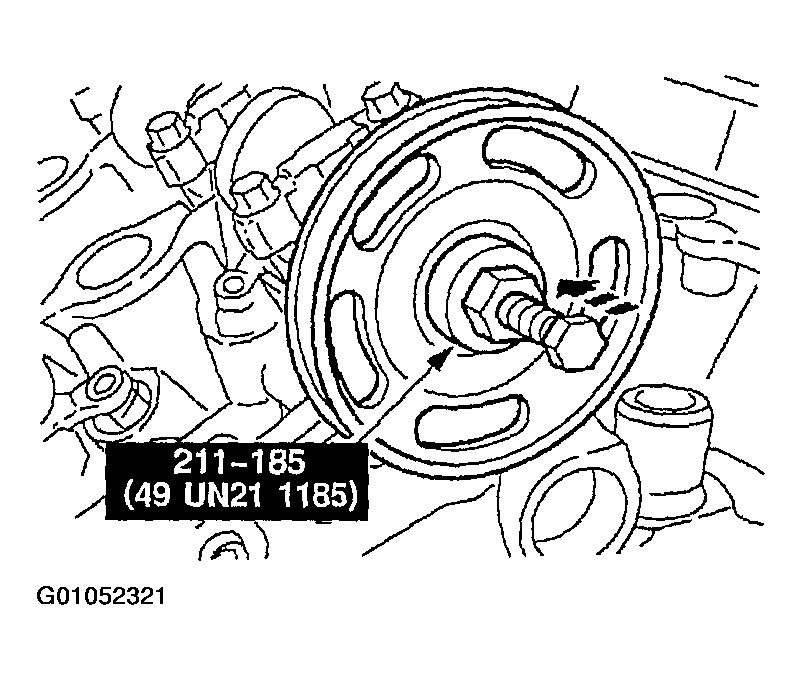

Fig 1: Installing Water Pump Pulley
G01052321Courtesy of MAZDA MOTORS CORP.
