Front Oil Seal Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble the front oil seal using part A of the SST  [303-335 (49 UN30 3335)] and the SST  [303-102 (49 UN01 002)].
    Fig 1: Front Oil Seal Installation Special Tool
    G01052311Courtesy of MAZDA MOTORS CORP.
  2. Apply clean engine oil to the oil seal.
  3. Push the oil seal slightly in by hand.
  4. Compress the oil seal using the SSTs.

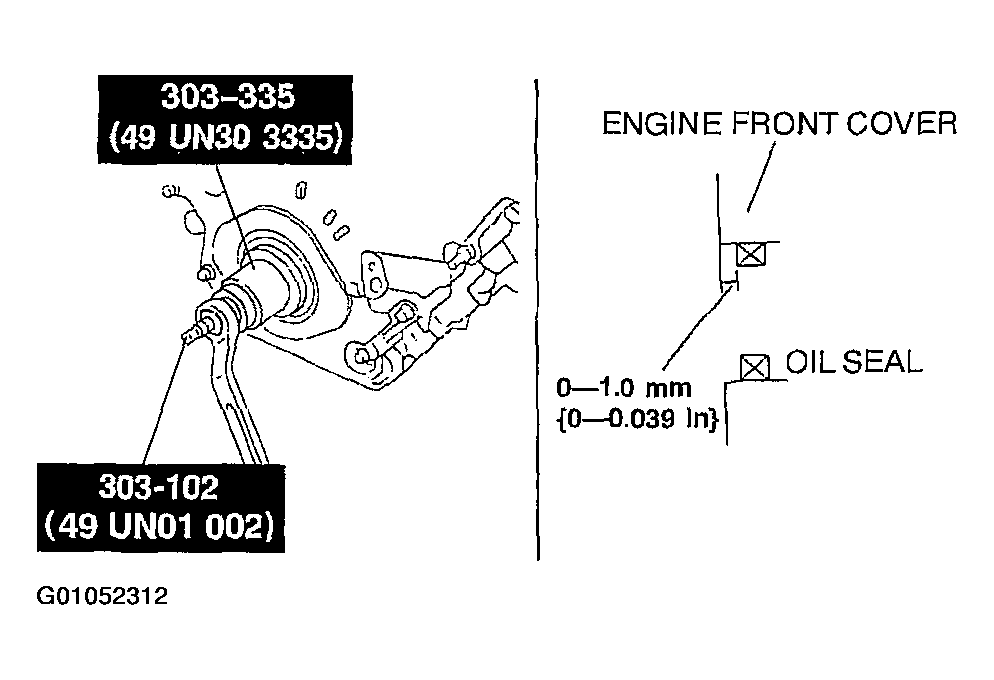

Fig 2: Installing Oil Seal Using Service Tool
G01052312Courtesy of MAZDA MOTORS CORP.
