Engine Front Cover Removal Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover bolts and studs in the order shown.

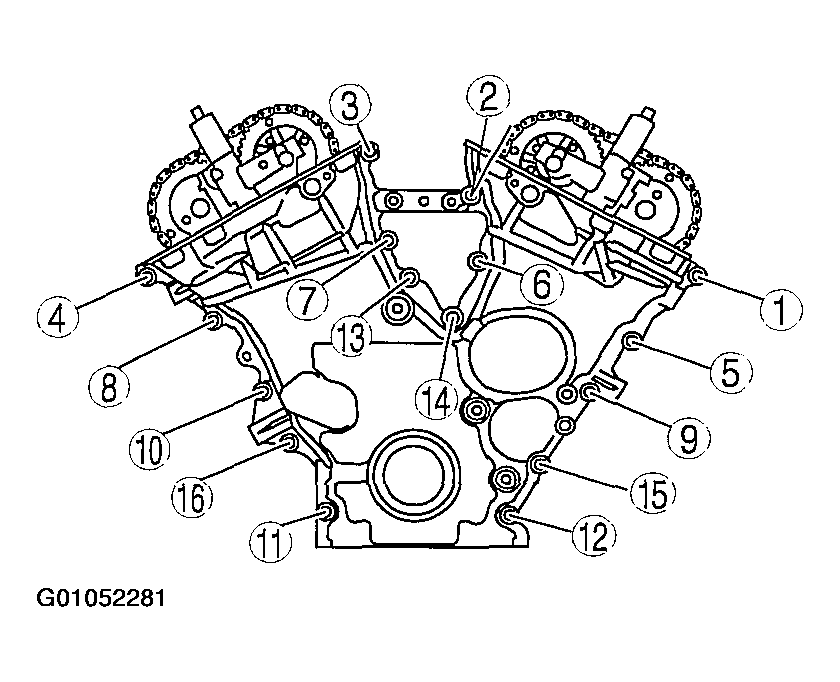

Fig 1: Engine Front Cover Bolts & Studs Removal Sequence
G01052281Courtesy of MAZDA MOTORS CORP.
