Engine Front Cover Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply a 6 mm {0.24 in}  dot of silicone sealant at the indicated location.

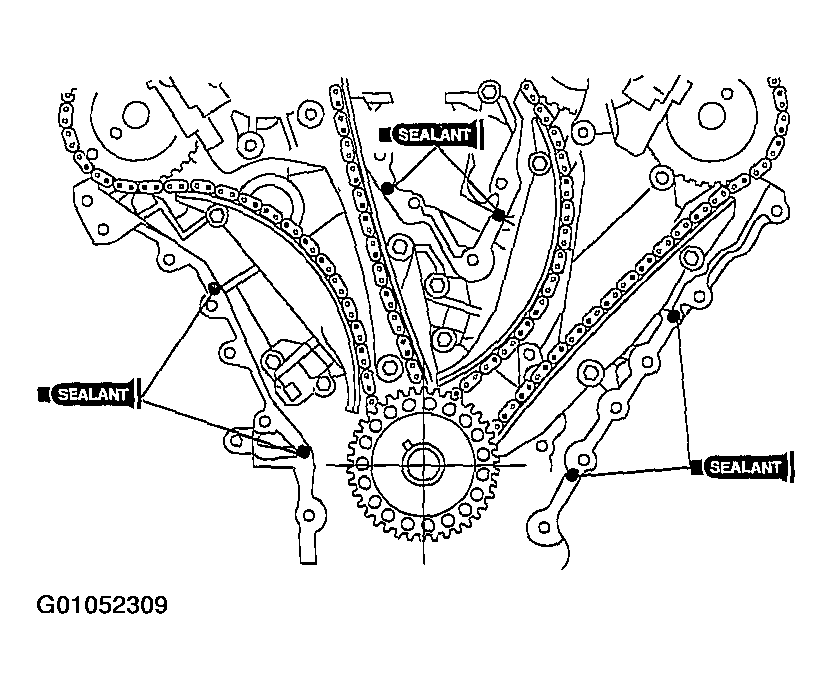

    Fig 1: Applying Silicone Sealant On Engine Cover Side
    G01052309Courtesy of MAZDA MOTORS CORP.
  2. Install the remaining bolts and studs, and then tighten all bolts and studs in the order shown.

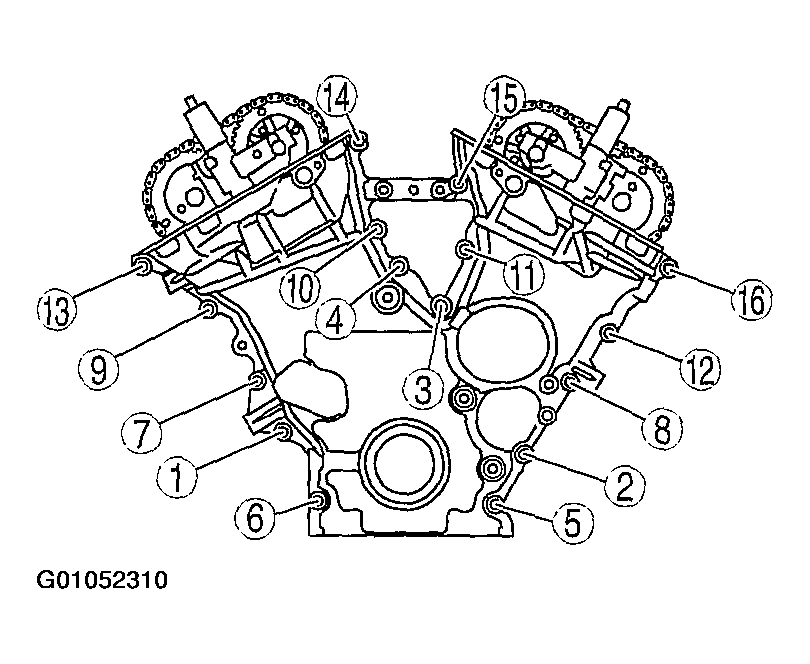

Fig 2: Installation Sequence Of Bolts & Studs Of Engine Cover
G01052310Courtesy of MAZDA MOTORS CORP.
