Cylinder Head Cover (RH) Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Apply silicone sealant to the mating faces as shown.

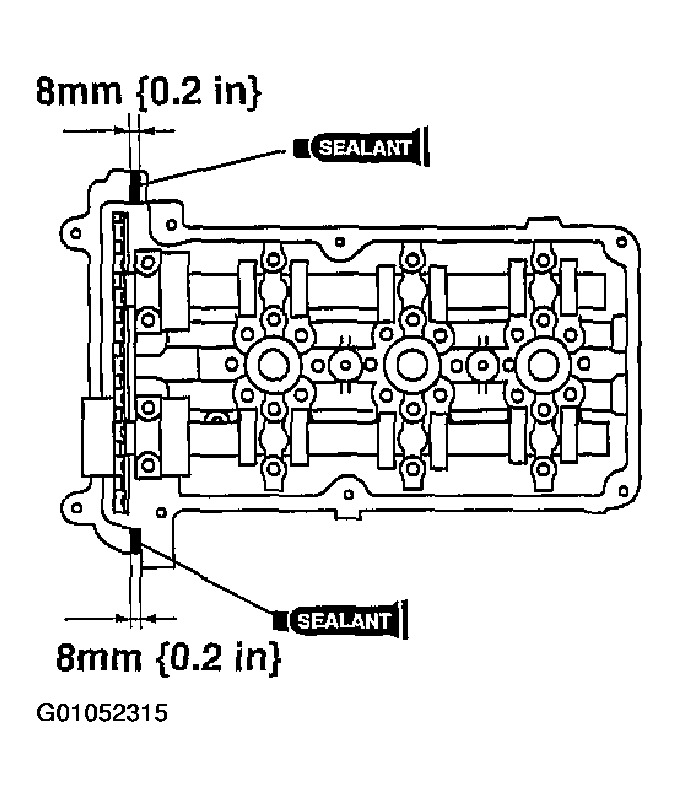

Fig 1: Applying Silicone Sealant To Cylinder Head Cover Mating Faces
Courtesy of MAZDA MOTORS CORP.
Install the cylinder head cover with a new gasket.
Install the oil control valve (OCV) with cylinder head cover raised as shown in the Fig 2.
NOTE:
- Take care not to let the OCV tightening bolt slip into the timing chain cover when Installing the OCV tightening bolt from engine front.
Tightening torque

8.0-12.0 N.m {82-122 kgf.cm, 71-106 in.lbf}

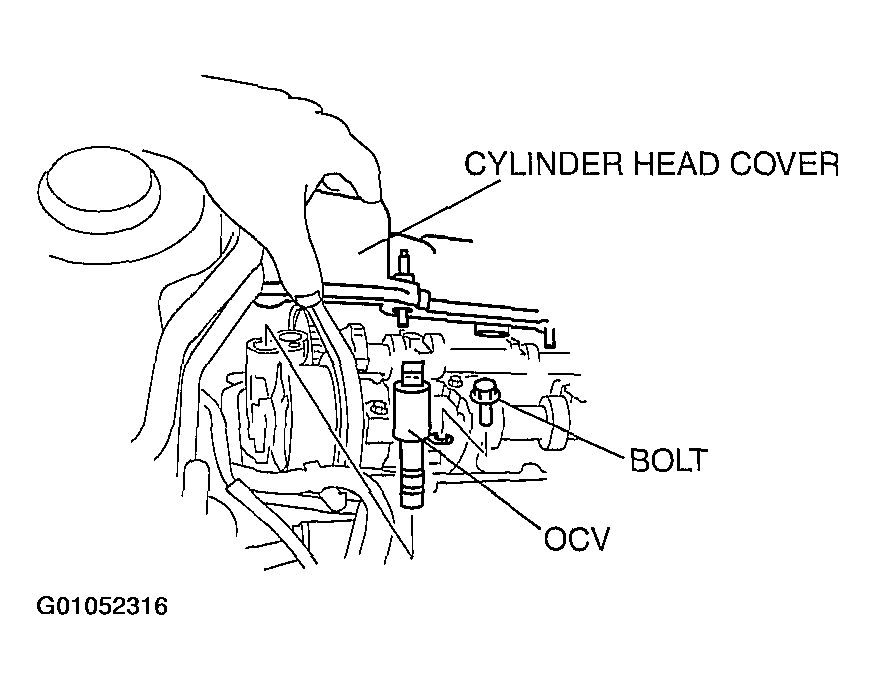

Fig 2: Installing Oil Control Valve
Courtesy of MAZDA MOTORS CORP.
Install the cylinder head cover.
Tighten the bolts in the order shown.

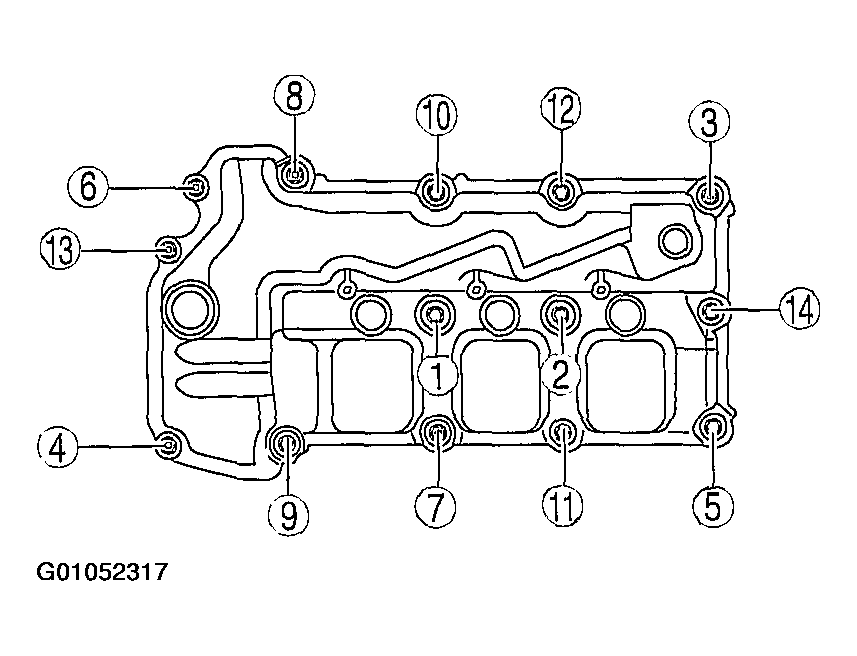

Fig 3: Cylinder Head Cover Bolt Tightening Sequence

Courtesy of MAZDA MOTORS CORP.
