Cylinder Head Cover (LH) Installation Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply silicone sealant to the mating faces as shown.
  2. Install the cylinder head cover with a new gasket.

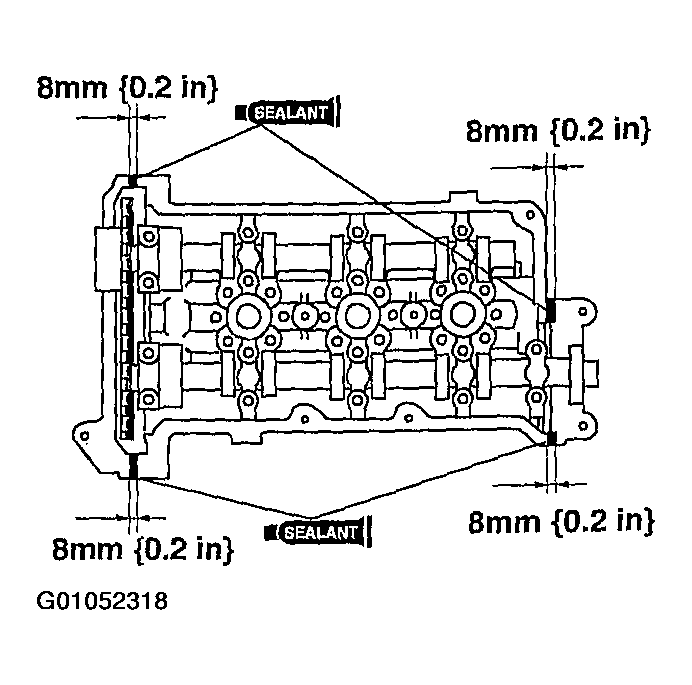

    Fig 1: Applying Silicone Sealant To Cylinder Head Cover (LH) Mating Faces
    G01052318Courtesy of MAZDA MOTORS CORP.
  3. Tighten the bolts in the order shown.

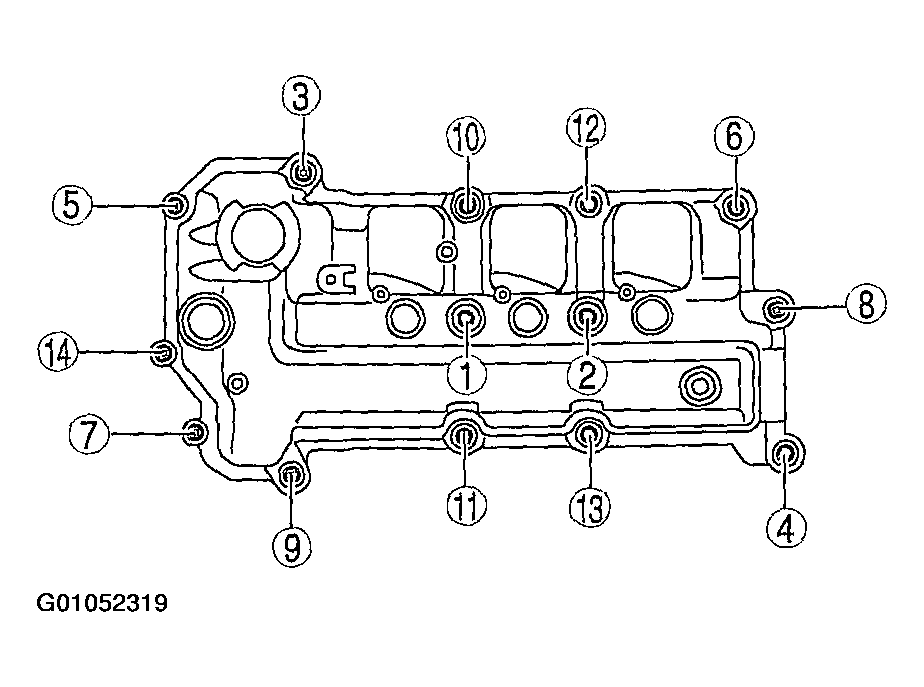

Fig 2: Cylinder Head Cover (LH) Bolt Tightening Sequence
G01052319Courtesy of MAZDA MOTORS CORP.
