Crankshaft Pulley Lock Bolt Removal Note

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the A/C compressor with the pipes still connected.
  2. Hold the crankshaft pulley using the SSTs.

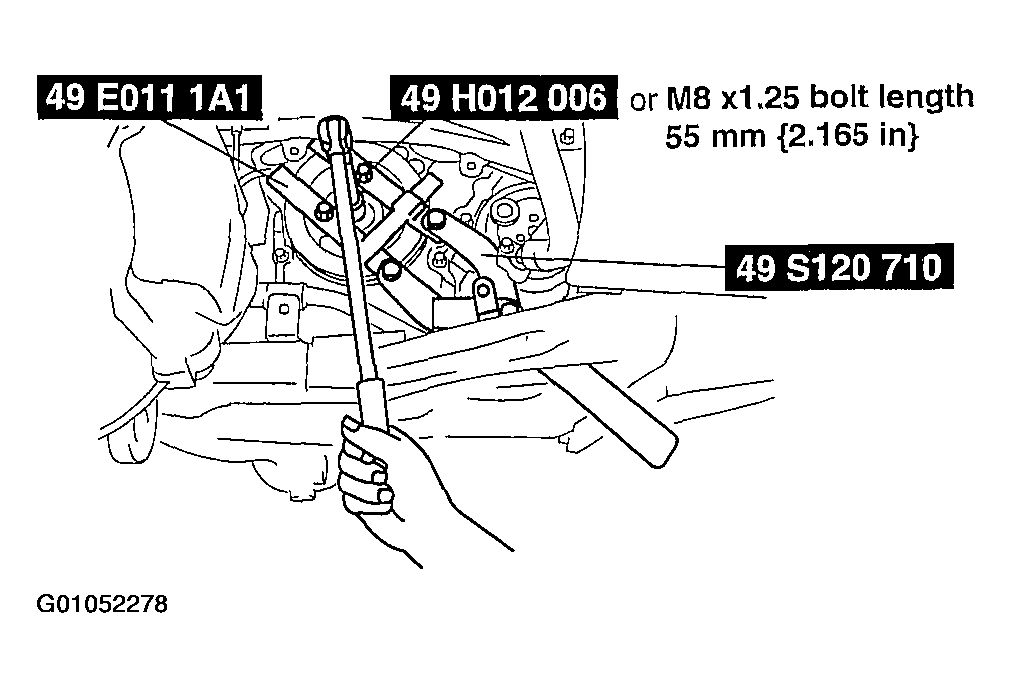

Fig 1: Holding Crankshaft Pulley
G01052278Courtesy of MAZDA MOTORS CORP.
